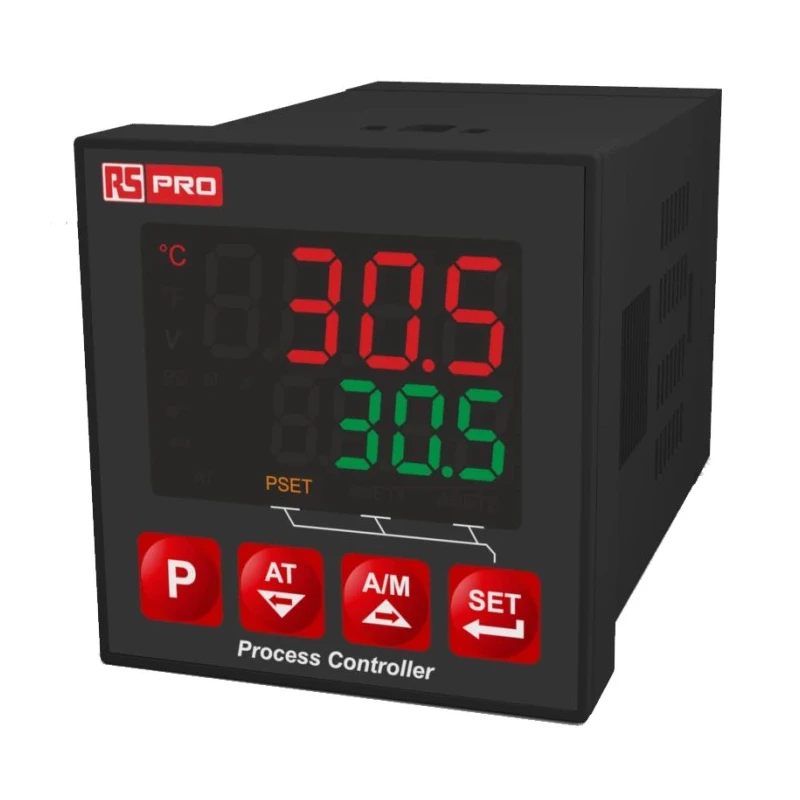

RS PRO Panel Mount PID Temperature Controller 3 Input, 3 Output Relay 24V On-Off Control 222-8150
Specifications
| Country of Origin | Turkey |
|---|---|
| Display Type | LED |
| Brand | RS PRO |
| Colour | Black |
| Operating Temperature | 0 to 50 °C |
| Length | 48mm |
| Model | 222-8150 |
| IP Rating | IP20, IP65 |
| Mounting Type | Recess-mount |
| Gross Weight | 170 g |
| Sensor Type | S, Pt100, T, J, K, R |
| Width | 48mm |
| Mount Type | Panel Mount |
| Number of inputs | 3 |
| Output type | Relay |
| Series | RS PRO |
| Input Type | RTD, Thermocouple |
| Maximum Operating Temperature | 50°C |
| Control Type | On-Off, PID Controller |
| Minimum Operating Temperature | 0°C |
| Maximum Current | 5A |
| Number of outputs | 3 |
| Operating Voltage | 24 V DC/AC or 100 to 240 V |
| Thermostat Type | Bang-bang, P, PI, PD, PID |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 24V |
| Thermocouple (TC) | L(DIN 43710) J, K, R, S, T, B, E, and N (IEC 584.1) (ITS90), C (ITS90) |
| Standard Relay Outputs | 3 pieces 5A@250V at resistive load) |
| Thermo-resistance (RTD) | PT-100 (IEC751) (ITS90) |
| Max. Temperature Reading | 1700 °C |
| Min. Temperature Reading | -200 °C |
| Outputs (thermostats) | 5 A relay |
| No. of relay outputs | 3 |
| Recess Depth | 76 mm |
Key Features
- Equipped with On-Off and PID control types for versatile temperature management.
- Supports inputs from RTD and thermocouple sensors for broad compatibility.
- Capable of handling up to 5A relay current at 24V supply voltage.
- Includes LED display for clear real-time process and set value monitoring.
- Designed for panel mount installation with IP20 and IP65 front rating protection.
- Operates reliably within 0 to 50°C ambient temperature range.
- Features programmable heating, cooling, and alarm functions for customizable control.
- Suitable for industrial applications including textiles, automotive, and machine production.
Product Description
RS PRO 222-8150 is a high-quality panel mount PID temperature controller designed to provide precise temperature regulation with 3 universal inputs and 3 relay outputs.
The controller supports versatile sensor inputs including RTD types like PT-100 and thermocouples such as types J, K, R, S, T, B, E, N, and C, ensuring compatibility with a wide range of temperature measurement systems.
It features On-Off and PID control types with advanced functions such as manual and automatic mode selection, auto-tune, and self-tune PID for optimized process control performance.
The device includes programmable heating, cooling, and alarm functions, allowing customization to specific application requirements in industrial environments. With 5A relay outputs rated at 250V for resistive loads, this controller ensures robust switching capability suitable for various process control loads.
Its compact and sturdy design enables panel mount installation with front IP65 protection and IP20 for connections, enhancing durability in harsh industrial conditions. The LED display shows four digits for both process value and setpoint, facilitating easy monitoring and configuration.
Operating within an ambient temperature range of 0 to 50 °C, and capable of measuring temperatures ranging from -200 °C up to 1700 °C, this controller suits a broad spectrum of industrial applications such as textiles, automotive manufacturing, and general machine production.
Manufactured in Turkey, it complies with CE standards, ensuring reliability and safety in process control operations. Equipped with On-Off and PID control modes for flexible temperature regulation. Universal sensor inputs including RTD and a broad range of thermocouples.
Three relay outputs each rated at 5A for effective load control. LED display with four digits for process and set values. Compact panel mount design with IP65 front panel protection. Programmable heating, cooling, and alarm functions enhance control.
Operating temperature range of 0 to 50 °C for versatile environments. Temperature measurement range from -200 °C to 1700 °C. Robust construction and CE certified for industrial use. Ideal for use in textiles, automotive, and machine production industries.
