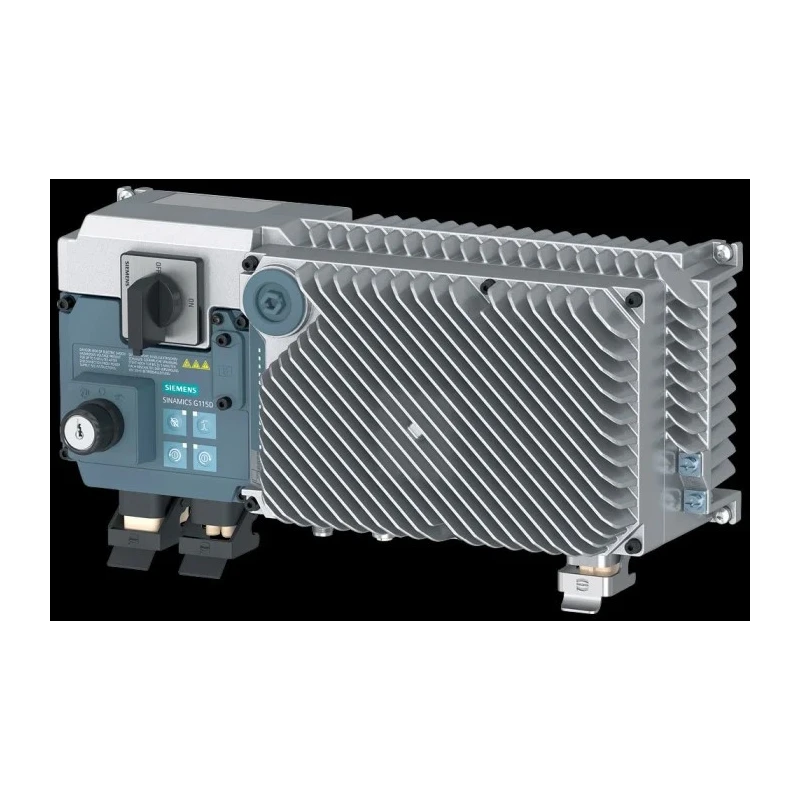

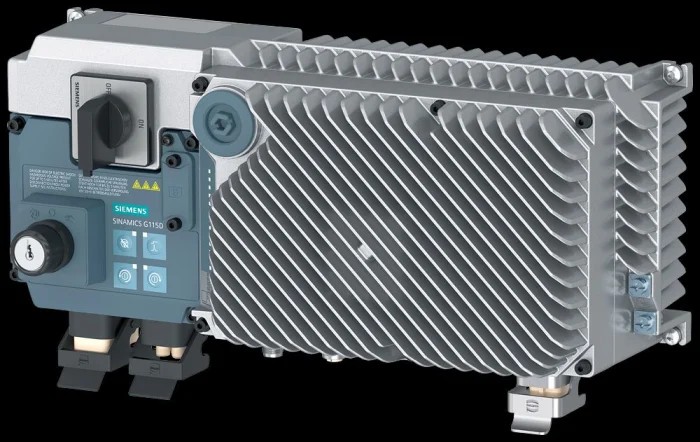

Siemens SINAMICS G115D Wall-Mounted Inverter Drive Input Current Output Voltage 380-480V 3.4A 6SL3520-1XM00-5AA0

The Siemens 6SL3520-1XM00-5AA0 inverter drive is a wall-mounted power converter designed for integration with three-phase asynchronous motors up to efficiency class IE3 and synchronous reluctance motors up to IE4. This model is part of the SINAMICS G115D series, delivering power in the range from 0.37 kW to 7.5 kW with maximum supply voltage of 480V and an input current type design.

Built specifically for industrial environments, it supports a broad temperature range from 30°C to 55°C, and meets compliance with rigorous standards such as CATEGORY 3, EN 55011, EN ISO 13849-1 PL d, IEC 61508 SIL 2, and ISO 9001 quality management systems, ensuring safety and reliability in critical applications.

The drive’s wall-mounted form factor optimizes factory floor space by eliminating the need for a separate control cabinet, reducing cooling requirements and enabling a direct installation on the machine. This setup also shortens cable runs to the motor, minimizing power losses and electromagnetic interference while cutting costs associated with shielding and filtering.

Dimensionally compact at 129mm length, 380mm width, and 156mm height, the unit accommodates quick installation and easy maintenance. Its compatibility with SIMOGEAR 2KJ8 geared motors broadens its applicability globally across diverse industrial sectors such as manufacturing, HVAC, water treatment, and automated machinery.

The inverter supports input current type with output voltage suitable for three-phase asynchronous and synchronous reluctance motors. Operating voltage range spans 380V to 480V, ensuring compatibility with standard industrial supply.

Maximum high-level output current is rated at 3.4A, suitable for equipment requiring moderate power levels. Wall-mount design enables space savings and integration directly onto machinery without need for control cabinet.

Operating temperature range from 30°C to 55°C allows use in varied industrial environments. Robust build conforms to multiple industrial standards including CATEGORY 3, EN 55011, IEC 61508 SIL 2, and ISO certifications. Dimensions of 129mm length, 380mm width, and 156mm height allow compact installation.

Compatible with SIMOGEAR geared motors for worldwide applications. Modular and preconfigured setup facilitates easy installation, cabling, and commissioning.

This Siemens Inverter Drive is a reliable and versatile solution for industries requiring precise motor speed control with energy efficiency and safety compliance. Explore further Siemens automation products on EnvMart for complementary devices and industrial solutions.
