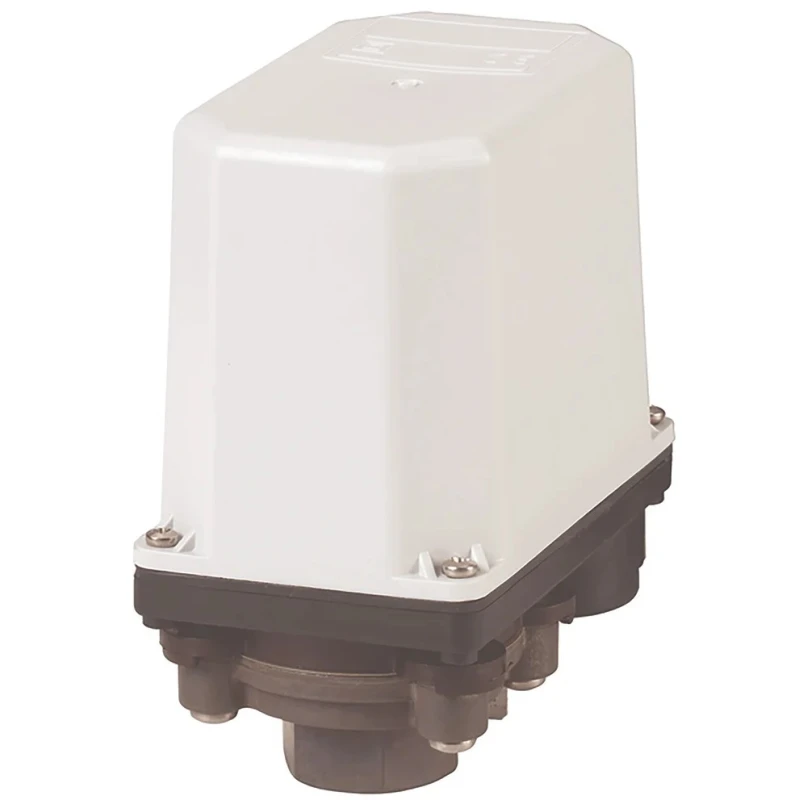

Eaton MCS4 Series Pressure Switch Industrial Gas Media 0.15-7 bar 400V IP65 MCS4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Model | MCS4 |
| IP Rating | IP65 |
| Series | MCS4 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 1 CO |
| Standards/Approvals | IEC/EN 60947-5-1 |
| Maximum Pressure Measurement | 7bar |
| Minimum Pressure Measurement | 0.15bar |
| Maximum Supply Voltage | 400V |
| Media Measured | Gas |
| If required | pressure pipe flange R ½ |
Key Features
- Separately adjustable for precise pressure settings.
- Suitable for liquid and gaseous media monitoring, including compressed air.
- Pressure pipe flange R 1/4 inch standard; optional R 1/2 inch flange available.
- Neoprene membrane resistant to aging, air, engine oil, and water.
- Maximum operating temperature up to 80°C ensuring robust performance.
- Features 2 cable entry knockouts for M20 with insulated protective conductor terminal.
- Designed with IP65 rating in conjunction with V-M20 cable gland for dust and water resistance.
- Complies with IEC/EN 60947-5-1 standards for electrical safety and performance.
Product Description
Eaton MCS4 Series Pressure Switch is designed for industrial applications requiring reliable pressure monitoring of gas and liquid media, including compressed air. This model supports a pressure measurement range from 0.15 bar minimum to 7 bar maximum, making it ideal for auxiliary circuit actuation through make and break pressure operations.
The device offers a contact configuration of 1 CO, and the series is recognized as MCS4, ensuring compatibility with various control systems. It operates safely under a maximum supply voltage of 400V and withstands operating temperatures up to 80°C, suitable for demanding industrial environments.
The pressure switch features a pressure pipe flange with a standard size of R 1/4 inch, with an optional R 1/2 inch flange available if required. The neoprene membrane is engineered to resist aging and exposure to air, engine oil, and water, supporting operation in harsh conditions between -25°C to +80°C.
Installation benefits include 2 cable entry knockouts for M20 and an insulated protective conductor terminal, combined with an IP65 rating in conjunction with the V-M20 cable gland to provide protection against dust and water ingress.
This product fully complies with IEC/EN 60947-5-1 standards, assuring safety and performance benchmarks necessary for industrial, automation, manufacturing, and HVAC applications involving pressure detection and control.
Separately adjustable pressure settings for user-specific calibration. Robust neoprene membrane for long-lasting durability in industrial environments. High ingress protection rating IP65 for reliable outdoor and factory use.
Supports auxiliary circuit operations via make and break pressure detection. Versatile installation using standardized pipe flanges and cable entries. Designed for compressed air and gaseous media sensing in automation systems.
Compliance with international electrical standards IEC/EN 60947-5-1. Operating temperature range suitable for demanding process environments. Reliable operation at voltages up to 400V for diverse power settings. Explore Eaton Pressure Switch models and related sensor components in the Electronics & Electricals category at EnvMart for industrial and automation control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a pressure measurement range from 0.15 bar minimum to 7 bar maximum, making it suitable for various industrial applications.
It is designed for monitoring both gas and liquid media, including compressed air, making it versatile for different applications.
The maximum supply voltage for this device is 400V, allowing it to operate safely in diverse power settings.
The Eaton MCS4 Series Pressure Switch has an IP65 rating, providing protection against dust and water ingress.
It can operate safely at a maximum temperature of 80°C, suitable for demanding industrial environments.
This model features a contact configuration of 1 CO, which is suitable for various control systems.
Installation includes two cable entry knockouts for M20 and an insulated protective conductor terminal, facilitating easy setup.
Yes, the standard pressure pipe flange size is R 1/4 inch, with an optional R 1/2 inch flange available if required.
It complies with IEC/EN 60947-5-1 standards, ensuring safety and performance benchmarks for industrial applications.
The operating temperature range for the MCS4 model is between -25°C to +80°C, suitable for various process environments.
The neoprene membrane is designed to resist aging and exposure to air, engine oil, and water, supporting operation in harsh conditions.
It is suitable for industrial applications involving pressure detection and control, particularly in automation, manufacturing, and HVAC systems.
