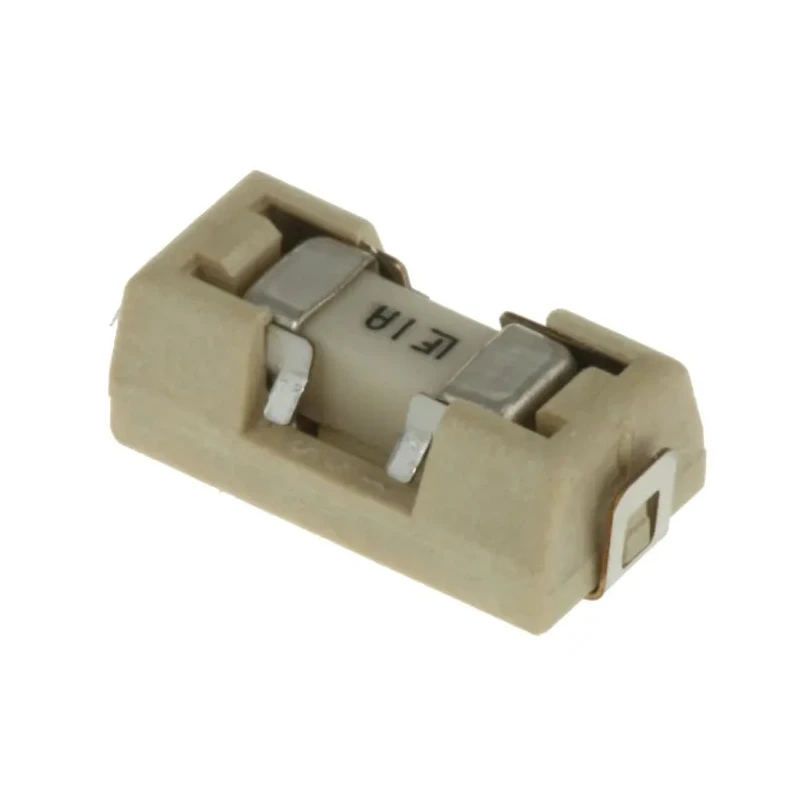

Littelfuse Non-Resettable Fuse 1A 125 V AC 125V DC Thermoplastic Body Time Delay 0154001.DR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Littelfuse |
| Body Material | Thermoplastic |
| Height | 3.81mm |
| Model | 0154001.DR |
| Depth | 9.73mm |
| Width | 5.03mm |
| Current Rating | 1A |
| Series | 154 |
| Maximum Operating Temperature | -55°C |
| Package Type | Reel |
| Minimum Operating Temperature | 125°C |
| Breaking Capacity | 50A |
| Terminal Material | Tin/Lead Plated Beryllium Copper Alloy |
| Standards/Approvals | UL 94 V-0, CSA, RoHS |
| Fuse Characteristics | Time Delay |
Key Features
- Compact fuse with a width of 5.03 mm and height of 3.81 mm.
- Temperature operating range from -55°C maximum to 125°C minimum operating temperatures.
- Breaking capacity of 50 A ensuring protection against overcurrent.
- Time delay fuse suitable for applications requiring delay in actuation.
- Package supplied as a reel for efficient handling and installation.
- Terminals made of tin/lead plated beryllium copper alloy for reliable electrical contact.
- Meets UL 94 V-0, CSA, and RoHS standards ensuring compliance and safety.
- Part of Littelfuse 154 series OMNI-BLOK fuse and holder combinations for surface mount applications.
Product Description
Littelfuse 0154001.DR is a non-resettable fuse designed for AC and DC circuits with a rating of 1A and voltage of 125 V AC and 125 V DC. The fuse features a thermoplastic body material ensuring durability and safety under electrical stress. It incorporates time delay characteristics making it suitable for applications that require brief surges without blowing immediately.
The fuse dimensions include a width of 5.03 mm, height of 3.81 mm, and depth of 9.73 mm, compact for surface mount applications. It operates reliably within a temperature range from -55°C maximum to 125°C minimum, highlighting its robustness in varying environments.
Featuring a breaking capacity of 50 A, it protects sensitive electronic components from high current damage. The terminal material is made of tin/lead plated beryllium copper alloy, providing excellent electrical conductivity and corrosion resistance.
This fuse belongs to the Littelfuse 154 series OMNI-BLOK fuse and holder combination family, which offers easy installation and replacement on PC boards without exposure to solder heat. The fuseholder is heat-resistant and capable of withstanding 260°C reflow soldering, suitable for modern manufacturing processes.
The product conforms to UL 94 V-0 flammability rating, CSA certification, and RoHS compliance, ensuring high safety and environmental standards. Applications span industrial, laboratory, electronics manufacturing, HVAC controls, and medical device protection.
Compact dimensions suitable for surface mount technology. Reliable time-delay fuse characteristic. Robust thermoplastic body designed for heat and electrical resistance. High breaking capacity ideal for circuit protection.
Certified compliance assures safe integration. OMNI-BLOK series for efficient fuse replacement. Heat-resistant fuse holder for reflow processes. Wide operating temperature range supports diverse environments. Surface mount compatible for space saving and reliable placement.
This Littelfuse non-resettable fuse 0154001.DR is a trusted component for protecting sensitive electronics in various industrial and commercial environments. For exploring comprehensive circuit protection solutions, browse the Electronics & Electricals > Circuit Breakers & Fuse categories at EnvMart.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 0154001.DR has a current rating of 1A.
It features a breaking capacity of 50A, providing protection against overcurrent conditions.
This model has a width of 5.03 mm, height of 3.81 mm, and depth of 9.73 mm, making it compact for surface mount applications.
The fuse operates reliably within a temperature range from -55°C to 125°C.
The body is made of thermoplastic, and the terminals are constructed from tin/lead plated beryllium copper alloy.
It meets UL 94 V-0, CSA, and RoHS standards, ensuring compliance with safety and environmental regulations.
The Littelfuse 0154001.DR is a time delay fuse, suitable for applications requiring a delay in actuation.
It is supplied as a reel, which facilitates efficient handling and installation.
This fuse is suitable for various applications, including industrial, laboratory, electronics manufacturing, HVAC controls, and medical device protection.
This model is part of the Littelfuse 154 series OMNI-BLOK fuse and holder combinations, designed for surface mount applications.
The Littelfuse 0154001.DR has a voltage rating of 125V AC and 125V DC.
Yes, its compact dimensions make it suitable for surface mount technology, allowing for space-saving and reliable placement.
