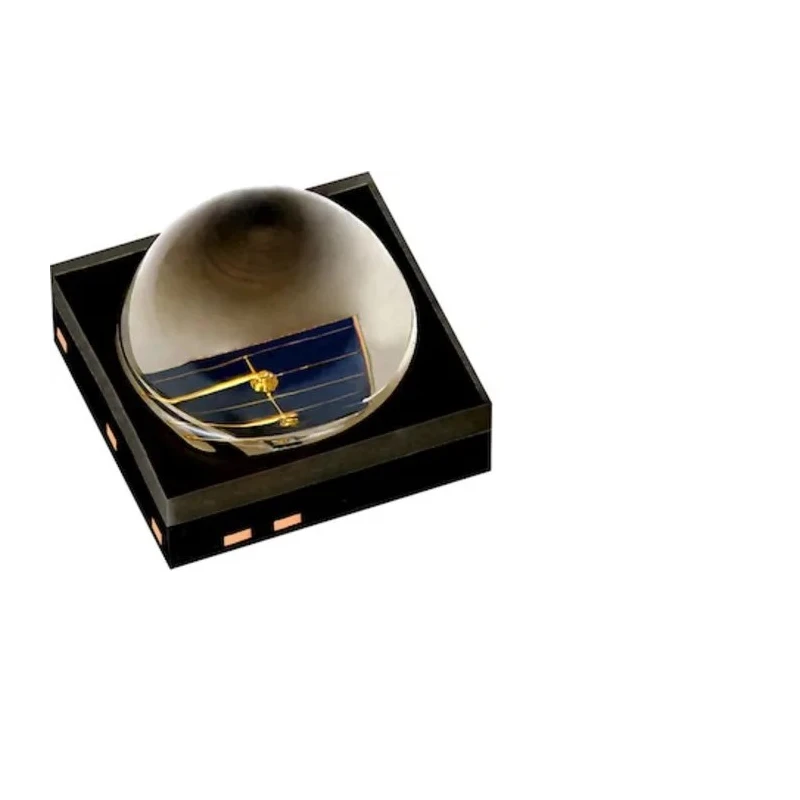

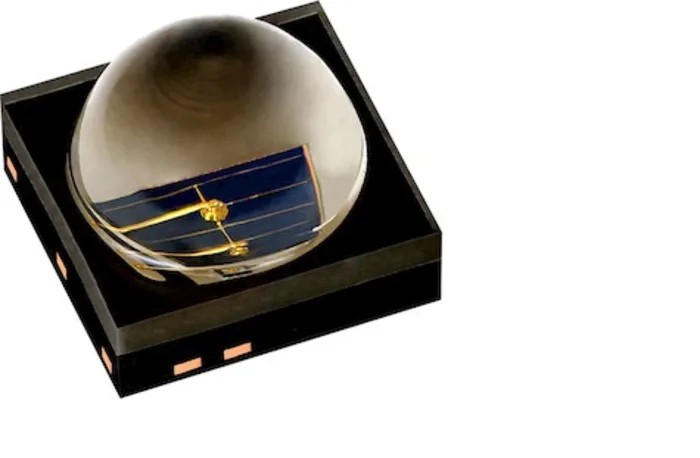

Vishay High Power Infrared Emitting Diode 860 nm Radiant Flux 2100mW Surface Mount VSMA1085250
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VSMA1085250 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | VSMA1085250 |
| Package Type | Surface Mount |
| Standards/Approvals | JEDEC JS-001, ANSI, ESDA |
| Maximum Supply Voltage | 5V |
| Peak Wavelength | 860nm |
| Radiant Flux | 2100mW |
| Angle of half intensity | 28° |
| Radiant Intensity | 1950mW/sr |
Key Features
- Operates with a maximum supply voltage of 5 V ensuring stable performance.
- Surface mount type designed for high power infrared emission applications.
- Radiant intensity reaches up to 1950 mW/sr for efficient infrared output.
- Incorporates a double stack emitter chip supporting pulsed currents up to 5 A.
- Compact dimensions of 3.4 x 3.4 x 2.9 mm (L x W x H) for versatile PCB integration.
- Low thermal resistance between 6 K/W and 9 K/W for effective heat dissipation.
- Angle of half intensity is ±28° providing directed infrared emission.
- Complies with JEDEC JS-001, ANSI, and ESDA standards for quality assurance.
Product Description
Vishay VSMA1085250 is a high power infrared emitting diode designed for demanding electronic applications requiring reliable IR emission. This diode operates at a peak wavelength of 860 nm, making it suitable for infrared sensing, communication, and industrial illumination systems.
The diode features a double stack emitter chip which enables it to deliver a high radiant flux of 2100 mW and radiant intensity of 1950 mW/sr, supporting pulsed currents up to 5 A and continuous DC operation at 1.5 A. Its compact surface mount design with dimensions 3.4 x 3.4 x 2.9 mm allows for seamless integration into surface mount technology (SMT) circuits.
Thermal management is optimized through a low thermal resistance rating between 6 K/W and 9 K/W, ensuring the diode maintains performance under continuous operation. The emission angle of ±28° provides a focused infrared beam suitable for precise targeting in sensing and communication devices.
This diode meets key industry standards including JEDEC JS-001, ANSI, and ESDA, guaranteeing reliability and robustness in industrial environments. Additionally, it features electrostatic discharge protection up to 5 kV, enhancing component longevity. Its lead-free package supports environmentally friendly manufacturing processes with compatibility for Pb-free reflow soldering.
Ideal for applications in industrial automation, security systems, medical devices, and communication technologies, the Vishay VSMA1085250 ensures high-efficiency infrared emission within a compact surface mount package.
Operates at peak wavelength of 860 nm for infrared applications. Double stack emitter chip provides high radiant power with 2100 mW flux. Supports DC currents of 1.5 A and pulsed currents up to 5 A. Compact 3.4 x 3.4 x 2.9 mm SMD package for flexible PCB mounting.
Low thermal resistance between 6 K/W and 9 K/W aids heat dissipation. Angular emission half intensity of ±28° ensures focused beam. Meets JEDEC JS-001, ANSI, and ESDA standards for quality and safety. ESD protection rated up to 5 kV enhances device durability.
Lead-free reflow soldering compatible for environmental compliance. Ideal for industrial, security, medical, and communication systems. Discover more infrared LED products and components in our Electronics & Electricals category at EnvMart.
Explore more products in our Semiconductor Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5 V, ensuring stable performance during operation.
This infrared emitting diode operates at a peak wavelength of 860 nm, making it suitable for various infrared applications.
The diode has a radiant flux output of 2100 mW, which supports high power infrared emission.
The radiant intensity of this model reaches up to 1950 mW/sr, providing efficient infrared output.
The angle of half intensity for this diode is ±28°, which allows for directed infrared emission.
This model has compact dimensions of 3.4 x 3.4 x 2.9 mm (L x W x H), facilitating versatile PCB integration.
It is designed as a surface mount type, suitable for integration into surface mount technology (SMT) circuits.
The diode supports continuous DC operation at 1.5 A and pulsed currents up to 5 A, making it versatile for various applications.
This model complies with JEDEC JS-001, ANSI, and ESDA standards, ensuring quality and reliability in industrial applications.
The thermal resistance is between 6 K/W and 9 K/W, which aids in effective heat dissipation during operation.
This diode is packaged in tape and reel format, which is suitable for automated assembly processes.
It is ideal for applications in industrial automation, security systems, medical devices, and communication technologies.
