Nexperia 8-Bit Addressable D Type Latch Logic IC, CMOS, 16-Pin SO 74HC259D,653

Name: Nexperia 8-Bit Addressable D Type Latch Logic IC, CMOS, 16-Pin SO 74HC259D,653
Brand: Nexperia
SKU: 290040
Price: 0.27 USD
Availability: InStock



Category Latch ICs Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.45mm
Length	10mm
Model	74HC259D,653
Mount Type	Surface
Output type	CMOS
Series	74HC
Maximum Operating Temperature	85°C
Package Type	SO
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	1
Pin Count	16
Maximum Supply Voltage	12V
Logic Family	74HC
Logic Function	D Type
Minimum Supply Voltage	5V
Latch Mode	Addressable
Number of Bits	8
onsemi MC74HC259ADR2G 8-Bit Latch, Addressable, 3 State, 16-Pin SOICBrand	onsemi

Key Features

This device offers four modes of operation to enhance functionality.
Data is latched at the addressed storage bit using inputs A0 to A3.
Features combined demultiplexer and 8-bit latch functionality.
Provides serial-to-parallel capability for versatile data handling.
Output from each storage bit is readily available for external use.
Operates with a minimum supply voltage of 5V and maximum of 12V.
Compatible with logic family 74HC and belongs to the 74HC series.
Specified to operate within temperature range from -40°C to 85°C.

Product Description

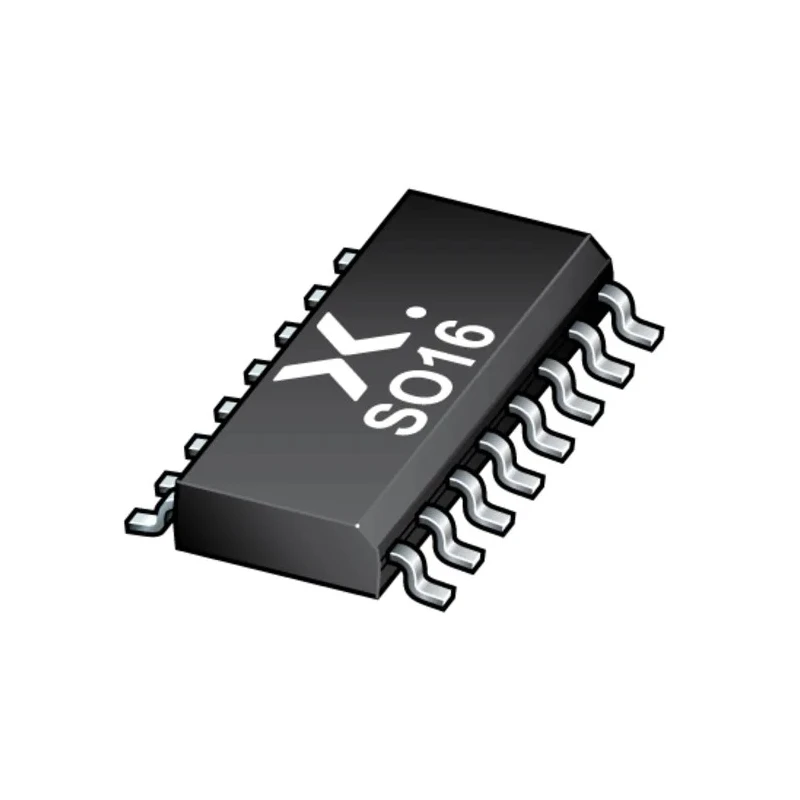

The Nexperia 74HC259D,653 is an 8-bit addressable D Type latch logic IC that operates with CMOS technology and comes in a 16-Pin SO surface mount package. It belongs to the 74HC logic family and 74HC series, making it compatible with standard digital electronics applications. The device supports four modes of operation, including addressable latch mode wherein data from the D input is written into the latch addressed by inputs A0 through A3.

This latch IC integrates combined demultiplexer and 8-bit latch functionalities, along with serial-to-parallel conversion capability, allowing versatile data handling and output at each storage bit for system interfacing.

It is designed to operate with a minimum supply voltage of 5 volts up to a maximum of 12 volts, supporting a wide range of electronic circuits requiring stable logic control. The device's operating temperature range from -40°C to 85°C ensures reliable performance in diverse industrial, automotive, and consumer environments.

With a pin count of 16 and compact physical dimensions including a height of 1.45 mm and length of 10 mm, it fits well in dense PCB layouts. The non-inverting output polarity ensures straightforward logic interpretation, and single channel architecture simplifies system design.

This product is ideal for use in industrial electronics, logic control systems, embedded device designs, and automation applications. The latch IC offers stable performance for both new designs and maintenance in existing hardware.

Designed with surface mount technology to support modern PCB assembly methods. The Nexperia brand assures quality and compliance with industry standards, making this latch IC a dependable choice for professional electronic engineers.

Package type SO ensures compatibility with standard surface mounting processes and equipment. Explore related solutions by browsing the Semiconductor and Logic IC categories at EnvMart for complementary components and accessories to build robust electronic systems.

Explore more products in our Latch ICs category.
