Vishay Schottky Diode 170 V 10 A Surface Mount TO-263AC Package D2PAK

Free Delivery in India | Lowest Global Shipping Charges

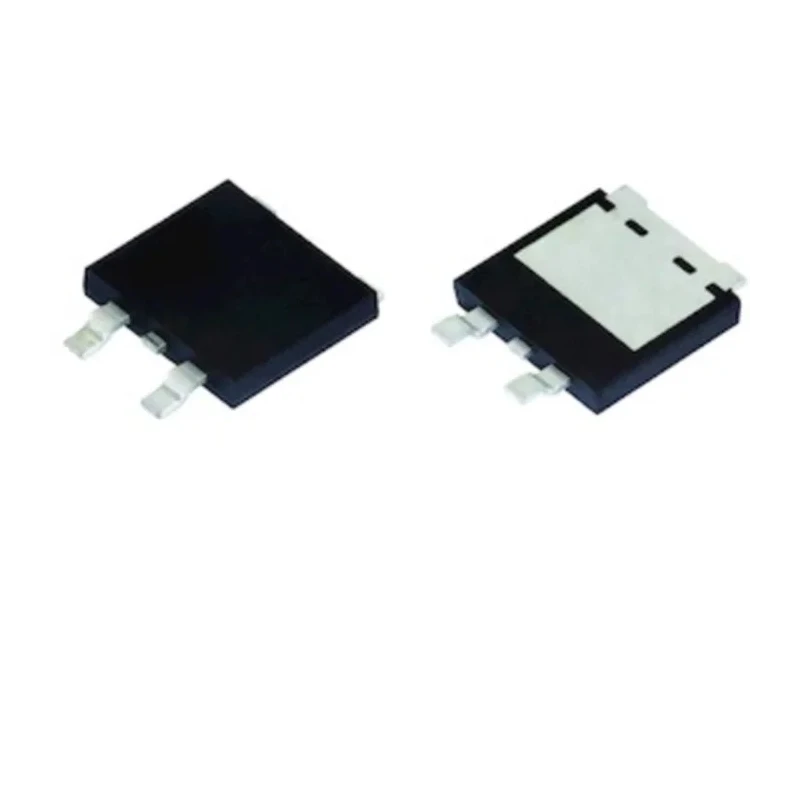

Vishay Schottky Diode 170 V 10 A Surface Mount TO-263AC Package D2PAK

Name: Vishay Schottky Diode 170 V 10 A Surface Mount TO-263AC Package D2PAK
Brand: Vishay
SKU: 289941
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.8mm
Length	8.9mm
Model	D2PAK
Width	10.2mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	TO-263AC
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	170V
Diode Configuration	2x Common Cathode Pair
Rectifier Type	Schottky
Peak Reverse Current Ir	3mA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	0.74V

Key Features

Low forward voltage drop for efficient power conversion.
High maximum continuous forward current of 10 A.
Peak reverse repetitive voltage of 170 V supports demanding applications.
Compact TO-263AC (D2PAK) package suitable for surface mount technology.
Diode configured as 2x common cathode pair providing enhanced performance.
Wide operating temperature range from -40°C to 175°C.
Peak non-repetitive forward surge current up to 100 A for transient conditions.
Low leakage current and fast switching speed ideal for inverter and DC/DC converter applications.

Product Description

Vishay V10D170C-M3/I is a high-performance Schottky diode designed for use in a variety of electronic and power applications. It offers a peak reverse repetitive voltage of 170 V and supports a continuous forward current of 10 A, making it ideal for high-frequency inverters, freewheeling circuits, DC/DC converters, and polarity protection systems in both commercial and automotive fields.

The diode is built in a TO-263AC (D2PAK) package that facilitates surface mount assembly, allowing for automated placement on printed circuit boards. Its 2x common cathode pair configuration provides efficient rectification characteristics.

With a low forward voltage drop of 0.74 V, this Vishay Schottky diode ensures reduced power loss and improved energy efficiency. It withstands peak non-repetitive forward surge currents up to 100 A, enhancing device robustness during transient load conditions. The device operates reliably across a wide temperature range from -40°C to 175°C, suitable for harsh environments and automotive applications.

Additional product features include RoHS compliance and adherence to the automotive standard AEC-Q101, guaranteeing quality and safety for demanding usage scenarios. The diode's compact dimensions - 8.9 mm length, 10.2 mm width, and 1.8 mm height - make it suitable for space-constrained designs.

Low forward voltage ensures minimal power dissipation. High continuous forward current supports substantial load requirements. Wide operating temperature enhances reliability. Automotive-grade qualification for demanding environments.

Compact D2PAK package enables easy surface mounting.

This Vishay Schottky diode is widely used in industrial power management, automotive electronics, commercial inverter circuits, and other demanding applications requiring high efficiency and reliability.
