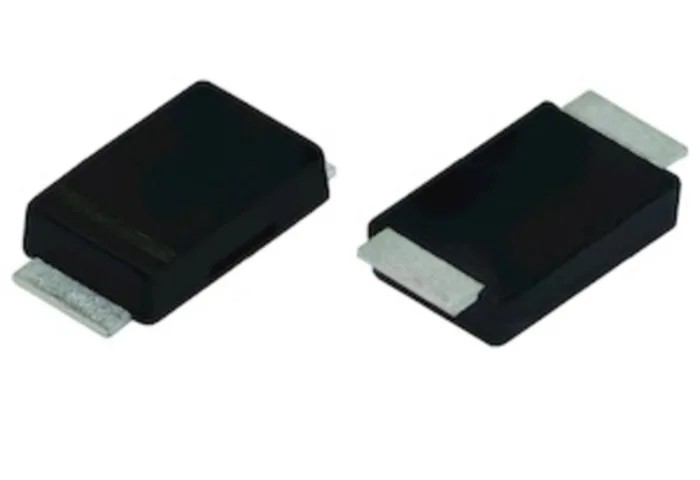

Vishay 100 V 5 A Schottky Barrier Diode Surface Mount DO-221AD VSS8D5M10-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VSS8D5M10-M3/H |
| Mount Type | Surface |
| Series | VSS8D5M10 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A |
| Maximum Forward Voltage Vf | 0.56V |
Key Features
- Designed for use in high frequency inverters and DC/DC converters.
- Features low forward voltage drop of 0.56 V for efficiency.
- Supports a peak surge current of up to 60 A.
- Operates reliably from -40°C to 175°C temperatures.
- Body dimensions include length of 5 mm and height of 2.7 mm.
- Meets RoHS compliance and automotive standard AEC-Q101.
- Manufactured in China with high-quality Vishay standards.
Product Description
Vishay VSS8D5M10-M3/H Schottky Barrier Diode is a high-performance discrete semiconductor designed for efficient switching applications in electronic circuits. This single diode features a surface mount DO-221AD package, making it suitable for compact PCB layouts.
The diode offers a maximum continuous forward current rating of 5 A and a peak reverse repetitive voltage of 100 V, enabling it to handle significant power in automotive, industrial, and commercial electronic systems.
With a low forward voltage of 0.56 V, this Schottky barrier diode minimizes power losses and enhances energy efficiency in power supplies such as DC/DC converters and polarity protection circuits. It can withstand peak surge currents up to 60 A, providing robustness during transient load conditions.
The device is operational in a wide temperature range from -40°C to 175°C, fulfilling the stringent requirements of automotive-grade electronics conforming to the AEC-Q101 standard. Its compact length of 5 mm and height of 2.7 mm help facilitate integration in space-constrained designs.
Compliant with RoHS environmental standards, this diode is manufactured with high-quality materials ensuring reliability and longevity in demanding industrial applications, including inverters, converters, and general electrical systems requiring fast switching and low leakage currents.
Low forward voltage drop reduces power dissipation and heat generation. High surge current tolerance enhances durability in fluctuating electrical environments. Automotive standard AEC-Q101 compliance ensures suitability for vehicle electronics.
Wide operating temperature range guarantees stable performance in harsh conditions. Compact surface mount package simplifies PCB assembly and design. RoHS compliant for environmentally responsible manufacturing. This Vishay Schottky Diode is a versatile component ideal for industrial, automotive, and commercial electronic applications requiring efficient rectification and protection.
Explore the Electronics & Electricals category on EnvMart to find additional semiconductor and diode solutions from Vishay and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 5 A.
This diode can handle a peak reverse repetitive voltage of 100 V.
The maximum forward voltage drop is 0.56 V, which helps in minimizing power losses.
It supports a peak surge current of up to 60 A.
This diode operates reliably within a temperature range of -40°C to 175°C.
The diode is packaged in a surface mount DO-221AD configuration.
It meets the automotive standard AEC-Q101, ensuring suitability for vehicle electronics.
Yes, this diode is compliant with RoHS environmental standards.
The body dimensions include a length of 5 mm and a height of 2.7 mm.
This model has a pin count of 2.
This diode is a Schottky rectifier, designed for efficient switching applications.
This diode is manufactured in China.
