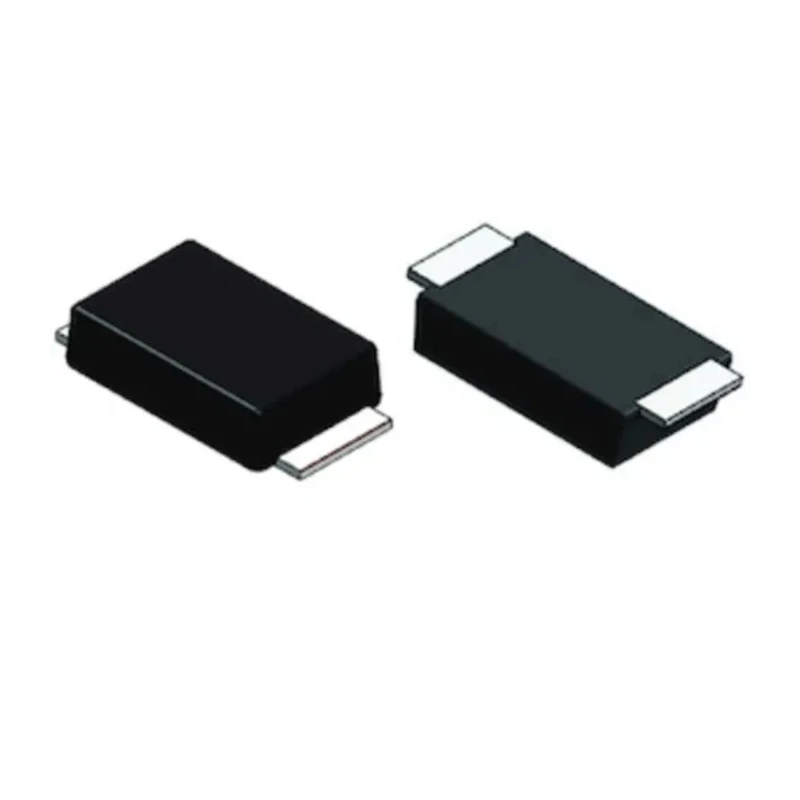

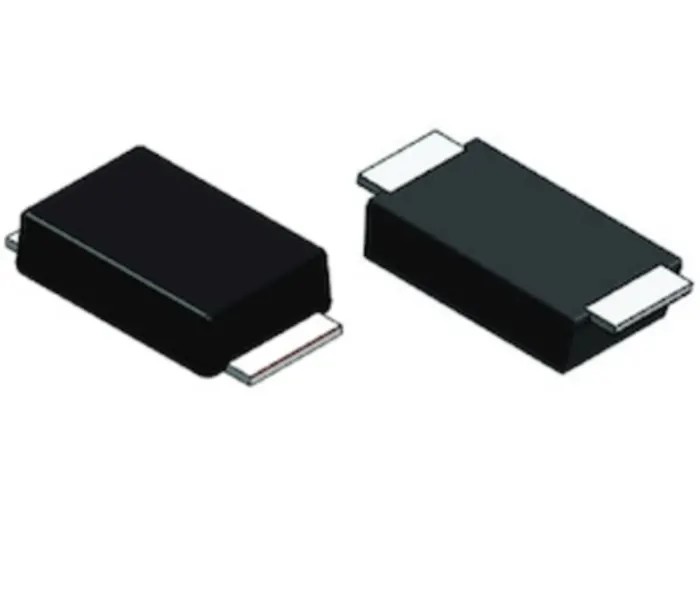

Vishay 100 V 3 A General Purpose Hyper-Fast Diode Surface Mount 2-Pin DO-221AD VS-3EYH01HM3/H

Name: Vishay 100 V 3 A General Purpose Hyper-Fast Diode Surface Mount 2-Pin DO-221AD VS-3EYH01HM3/H
Brand: Vishay
SKU: 289862
Price: 0.35 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	2.7mm
Length	5mm
Model	VS-3EYH01HM3/H
Mount Type	Surface
Series	eSMP
Maximum Operating Temperature	175°C
Package Type	DO-221AD
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	2μA
Peak Non-Repetitive Forward Surge Current Ifsm	70A
Maximum Forward Voltage Vf	0.71V

Key Features

The diode features low forward voltage of 0.71 V for improved efficiency.
It supports a peak non-repetitive forward surge current of 70 A for transient loads.
The operating temperature range spans from -55°C to 175°C for versatile applications.
It is designed for fast switching speed suitable for high frequency inverter and DC/DC converter use.
The device exhibits low leakage current enhancing reliability in power management circuits.
Automotive grade certified to AEC-Q101 standard ensuring durability.
The compact size includes a length of 5 mm and height of 2.7 mm for space-saving PCB designs.
Applicable in freewheeling and polarity protection circuits in industrial and automotive electronics.

Product Description

Vishay VS-3EYH01HM3/H is a 2-pin general purpose hyper-fast diode suitable for surface mount technology, offered in a DO-221AD package. Rated at 100 V and 3 A continuous forward current, this diode delivers excellent performance in high frequency inverters, freewheeling, DC/DC converters, and polarity protection circuits across commercial, industrial, and automotive applications.

Its low forward voltage drop of 0.71 V minimizes power losses and improves energy efficiency, while the 70 A peak non-repetitive forward surge current capability ensures resilience to transient overload conditions. The diode operates reliably in a wide temperature range from -55°C to 175°C, making it adaptable to harsh environments.

This component complies with automotive standard AEC-Q101, suitable for robust automotive systems and industrial machinery. The compact 5 mm by 2.7 mm form factor supports space-constrained PCB designs and automated assembly processes.

Key features include a single diode configuration with low leakage current, enabling efficient power management in semiconductor circuits. Ideal for engineers designing rugged and efficient power supply units, motor drives, and automotive electronics.

Low forward voltage of 0.71 V reduces power dissipation. Fast switching speeds optimize performance in high frequency converter circuits. Wide operational temperature supports diverse application environments. AEC-Q101 automotive qualification ensures suitability for automotive electronics.

Compact DO-221AD package accommodates automated placement and dense PCB layouts. High surge current rating handles transient power spikes safely. Low leakage current enhances overall device reliability and efficiency.

This Vishay diode is a reliable choice for industry professionals seeking durable semiconductor devices for their electronic component designs. For more electronic components from Vishay and to explore products for your industrial needs, browse the Electronics & Electricals category on EnvMart.
