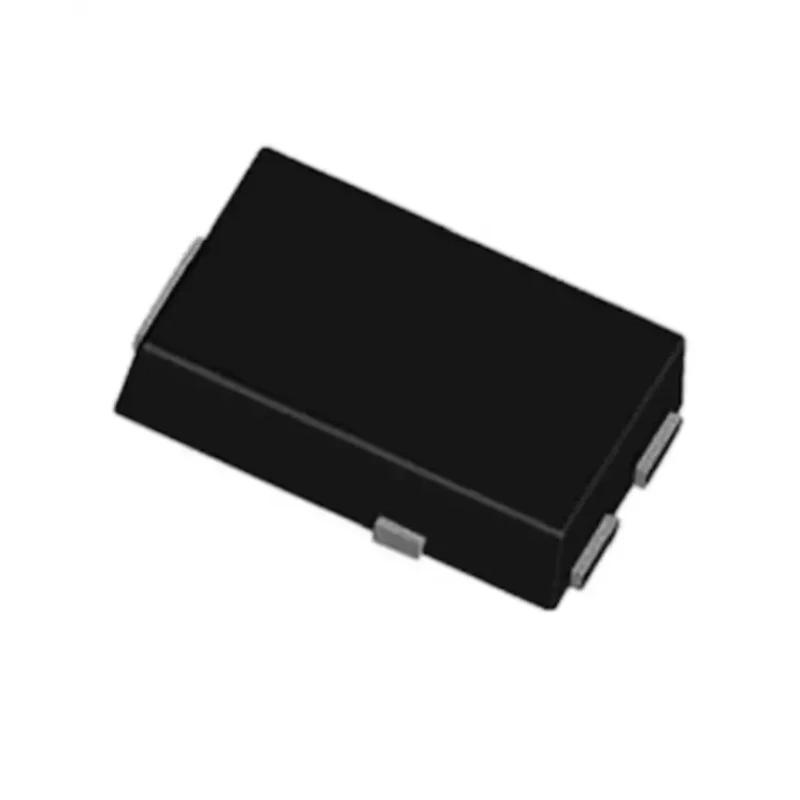

Vishay 45 V 8 A Schottky Diode Single Configuration Surface Mount TO-277 Package V8PM45-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.65mm |
| Model | V8PM45-M3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 8mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 140A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Features a low forward voltage drop of 0.6 V to minimize power losses.
- Maximum continuous forward current rating of 8 A supports robust current handling.
- Peak reverse repetitive voltage is 45 V, suitable for high-frequency circuits.
- Peak non-repetitive forward surge current of 140 A enables short surge tolerance.
- Operates within a wide temperature range from -40°C to 175°C for automotive and industrial applications.
- Complies with RoHS standards and AEC-Q101 automotive qualification.
- Compact dimensions of 6.65 mm length, 4.75 mm width, and 1.2 mm height optimized for PCB layouts.
- Designed for high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection.
Product Description
Vishay V8PM45-M3/H Schottky diode is a single diode with a surface mount TO-277 package, rated at 45 V peak reverse voltage and 8 A maximum continuous forward current. This device offers fast switching speed and low forward voltage drop of 0.6 V, ensuring low power dissipation in demanding power electronics applications.
Its robust electrical characteristics, including a peak non-repetitive forward surge current of 140 A and low leakage current, make it ideal for use in automotive, industrial, and commercial electronic circuits. The diode's operating temperature range from -40°C to 175°C suits harsh environmental conditions.
The diode package has compact dimensions of 6.65 mm length, 4.75 mm width, and 1.2 mm height, facilitating automated placement and space-efficient PCB designs. Meeting RoHS compliance and the automotive AEC-Q101 standard, it is suitable for automotive electronics requiring high reliability.
Common applications include use as freewheeling diodes, polarity protection diodes, in high-frequency inverters, and DC/DC converters where efficient rectification and fast recovery are critical.
Low forward voltage drop reduces thermal losses. High peak surge current capability enables tolerance to transient overloads. Wide operating temperature gives suitability for automotive and industrial environments. Compact TO-277 surface mount package allows automated PCB assembly.
Certified to RoHS and automotive AEC-Q101 standards for quality and environmental compliance. Optimized for high-frequency, high-efficiency power conversion applications.
For users seeking reliable, efficient Schottky diodes for automotive, industrial and commercial electronics, the V8PM45-M3/H is a solid choice. Explore more components like this in the Schottky Diode category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 8 A.
The peak reverse repetitive voltage for the V8PM45-M3/H is 45 V.
It features a low forward voltage drop of 0.6 V, which helps minimize power losses.
This model operates within a wide temperature range from -40°C to 175°C.
The dimensions of the TO-277 package are 6.65 mm in length, 4.75 mm in width, and 1.2 mm in height.
The peak non-repetitive forward surge current rating is 140 A.
Yes, it complies with RoHS standards and is qualified under the AEC-Q101 automotive standard.
This Schottky diode is designed for high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection applications.
The V8PM45-M3/H has a pin count of 3.
It uses a surface mount type for easy PCB integration.
The peak reverse current is rated at 8 mA.
This model is classified as a Schottky rectifier type.
