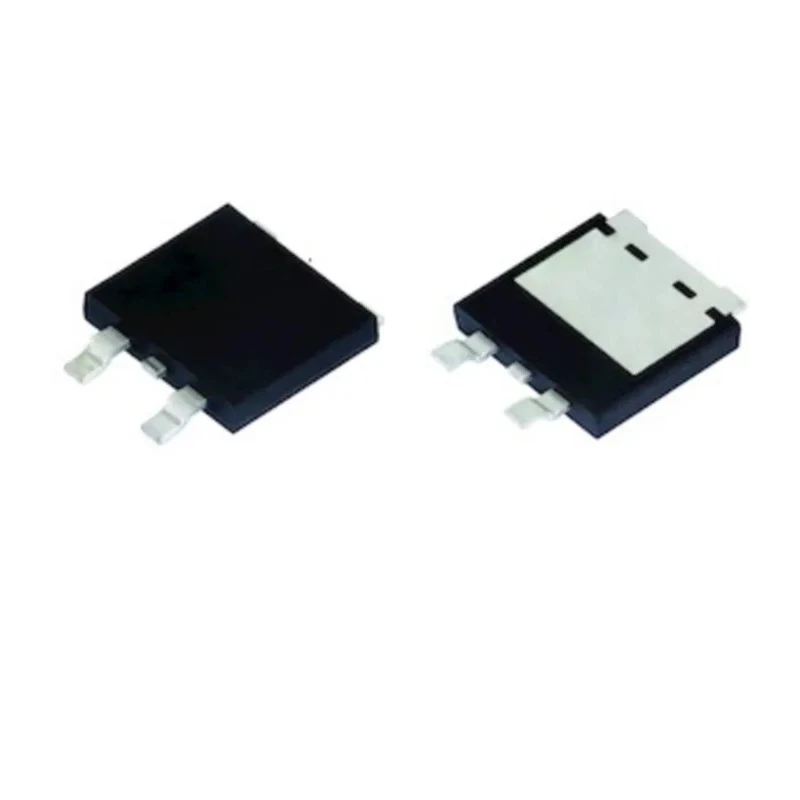

Vishay General Purpose Diode 600 V 12 A 3-Pin D2PAK Surface Mount SE12DLJ-M3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.8mm |
| Length | 12.93mm |
| Model | SE12DLJ-M3/I |
| Width | 10.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263AC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 70μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 165A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 300ns |
Key Features
- Supports maximum continuous forward current of 12 amperes.
- Peak reverse repetitive voltage capability of 600 volts.
- Low forward voltage drop of 1 volt for efficient performance.
- Peak reverse current is limited to 70 microamperes.
- Operates reliably from -55°C up to 175°C.
- Peak non-repetitive forward surge current rating of 165 amperes.
- Fast peak reverse recovery time of 300 nanoseconds suitable for high frequency applications.
- Designed for commercial, industrial, and automotive use cases requiring general purpose rectification.
Product Description
Vishay SE12DLJ-M3/I general purpose diode is a single diode in a 3-pin D2PAK surface mount TO-263AC package. It features a maximum continuous forward current of 12 A and a peak reverse repetitive voltage rating of 600 V, making it suitable for various power rectification purposes in electronic circuits.
This diode is designed with a low forward voltage drop of 1 V and a low peak reverse current of 70 μA, which helps in minimizing power losses and improving efficiency. Its fast peak reverse recovery time of 300 ns makes it ideal for use in high frequency inverters, DC-DC converters, freewheeling applications, and polarity protection devices across commercial, industrial, and automotive sectors.
The diode operates reliably in a wide temperature range from -55°C to 175°C, ensuring durability in harsh environmental conditions. The compact surface mount TO-263AC package measures 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height, facilitating automated placement on PCBs.
With a peak non-repetitive forward surge current of 165 A, this diode can sustain high transient currents without damage. The product is a standard solution for general purpose rectification requiring robust performance and reliability.
Supports maximum continuous forward current of 12 amperes. Peak reverse repetitive voltage capability of 600 volts. Low forward voltage drop of 1 volt for efficient performance. Peak reverse current is limited to 70 microamperes.
Operates reliably from -55°C up to 175°C. Peak non-repetitive forward surge current rating of 165 amperes. Compact TO-263AC package with dimensions: length 12.93 mm, width 10.2 mm, height 1.8 mm. Fast peak reverse recovery time of 300 nanoseconds suitable for high frequency applications.
Designed for commercial, industrial, and automotive use cases requiring general purpose rectification. Manufactured in China ensuring quality control compliance.
This diode is categorized under Vishay's Schottky Diodes & Rectifiers series and is an excellent choice for engineers requiring a high-performance, general purpose rectifier Diode.
Explore more Vishay semiconductor products and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 12 amperes.
This diode has a peak reverse repetitive voltage capability of 600 volts.
It features a low forward voltage drop of 1 volt for efficient performance.
The peak reverse current is limited to 70 microamperes.
This diode operates reliably from -55°C up to 175°C.
The peak non-repetitive forward surge current rating is 165 amperes.
It has a fast peak reverse recovery time of 300 nanoseconds, suitable for high frequency applications.
The TO-263AC package measures 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height.
This diode is designed for surface mount installation.
It is suitable for various power rectification purposes in commercial, industrial, and automotive applications.
This model has a pin count of 3.
This diode is manufactured in China, ensuring quality control compliance.
