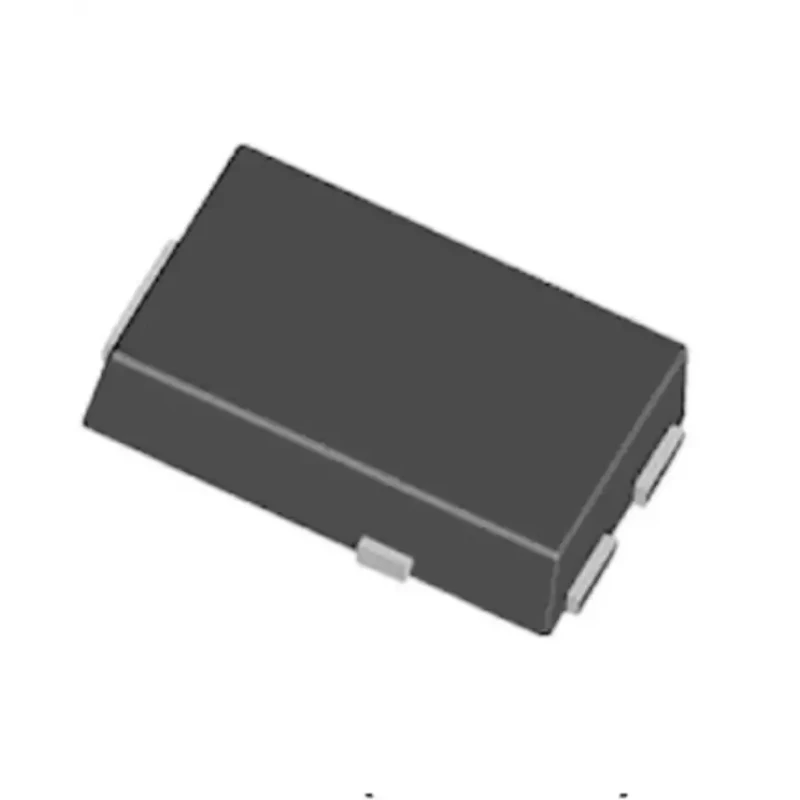

Vishay Schottky Diode 150 V 10 A Surface Mount TO-277 3-Pin V10PM15-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 6.66mm |
| Model | V10PM15-M3/H |
| Width | 4.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Designed for high-frequency inverters, DC/DC converters, and polarity protection.
- Trench MOS Barrier Schottky technology ensures low forward voltage drop.
- Low power losses and leakage current enhance efficiency.
- Peak non-repetitive forward surge current rating of 180 A for transient durability.
- Wide operating temperature range from -40°C to 175°C ensures reliability.
- Compliant with RoHS and meets automotive AEC-Q101 standards.
- Ideal for commercial, industrial, and automotive electronics applications.
Product Description
Vishay V10PM15-M3/H Schottky Diode is a surface mount semiconductor device in a TO-277 package, rated for a peak reverse voltage of 150 V and maximum continuous forward current of 10 A. The diode features Trench MOS Barrier Schottky technology providing high-speed switching and low forward voltage drop, ideal for efficient operation in power circuits.
This diode supports applications such as high-frequency inverters, freewheeling diodes, DC/DC converters, and polarity protection circuits commonly used in commercial, industrial, and automotive electronics. It offers low power losses and minimal leakage current, increasing circuit efficiency.
The device withstands a peak non-repetitive forward surge current of 180 A, allowing durability under transient conditions. It operates reliably across a temperature range from -40°C to 175°C, making it suitable for demanding environments.
Its compact physical dimensions - 6.66 mm in length, 4.75 mm in width, and 1.2 mm in height - allow efficient PCB layout and automated placement. Compliance with RoHS directives and the automotive-grade AEC-Q101 standard ensures environmental and quality assurance for critical uses.
Typical industrial and automotive use cases include power supply rectification, voltage clamping, and protection circuits in electronic assemblies. Vishay’s robust manufacturing and design standards make this device a dependable component for engineers seeking high-performance Schottky diodes.
Designed for high-frequency inverters, DC/DC converters, and polarity protection. Trench MOS Barrier Schottky technology ensures low forward voltage drop. Low power losses and leakage current enhance efficiency. Peak non-repetitive forward surge current rating of 180 A for transient durability.
Wide operating temperature range from -40°C to 175°C ensures reliability. Compact dimensions: 6.66 mm length, 4.75 mm width, and 1.2 mm height. Compliant with RoHS and meets automotive AEC-Q101 standards. Ideal for commercial, industrial, and automotive electronics applications.
Explore more semiconductor components and Schottky diodes in the Electronics & Electricals category on EnvMart for your industrial and commercial projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay V10PM15-M3/H Schottky diode is 10 A.
This diode has a peak reverse voltage rating of 150 V.
The operating temperature range for the Vishay V10PM15-M3/H is from -40°C to 175°C.
The diode is packaged in a TO-277 surface mount configuration.
It has a peak non-repetitive forward surge current rating of 180 A.
The dimensions of the Vishay V10PM15-M3/H are 6.66 mm in length, 4.75 mm in width, and 1.2 mm in height.
Yes, it is compliant with RoHS directives and meets the automotive AEC-Q101 standard.
The maximum forward voltage drop for this model is 1 V.
It is suitable for applications such as high-frequency inverters, DC/DC converters, and polarity protection circuits.
This Schottky diode features a 3-pin configuration.
The Vishay V10PM15-M3/H is a Schottky rectifier.
The peak reverse current for this model is 2 mA.
