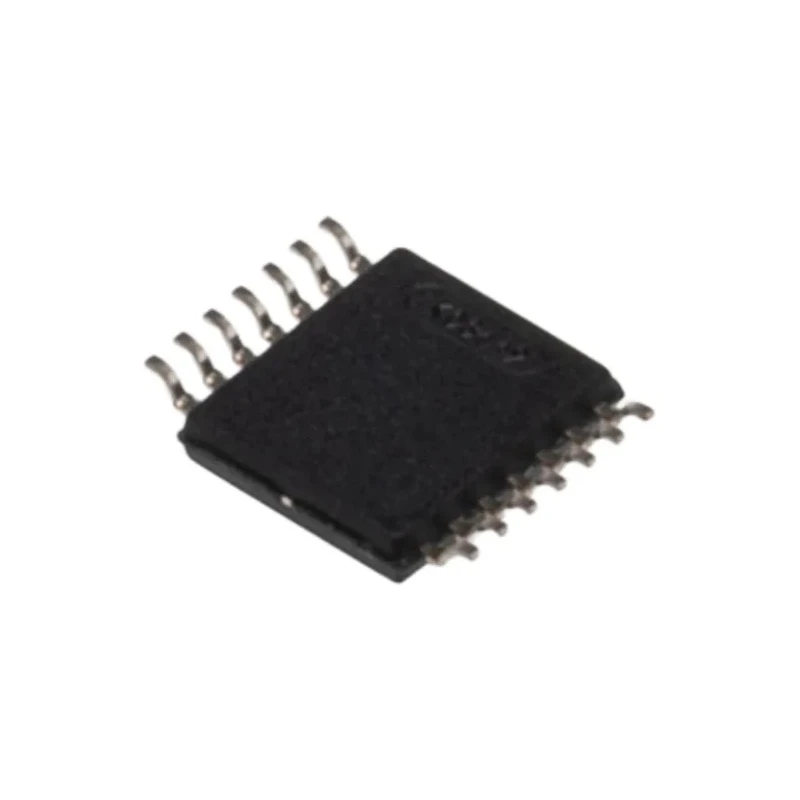

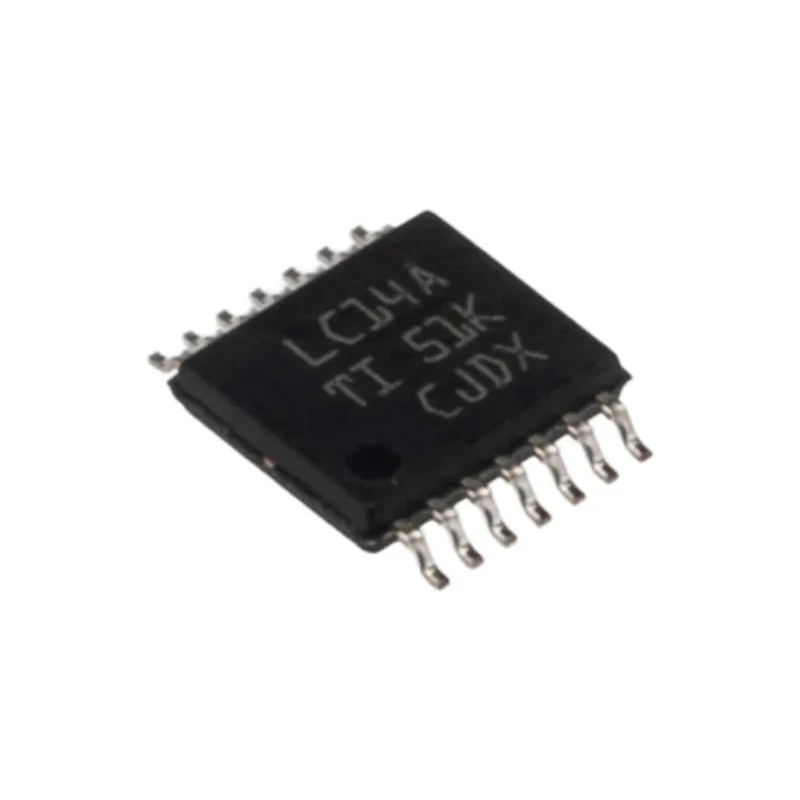

Texas Instruments Schmitt Trigger Input Schmitt Trigger Inverter 1, 14-Pin TSSOP SN74LVC14APWR

Texas Instruments SN74LVC14APWR Schmitt Trigger Inverter 1, 14-Pin TSSOP is a high-performance logic IC designed to provide Schmitt trigger input functionality and signal inversion with hysteresis effect. Operating within a supply voltage range of 1.65 V to 3.6 V, this device supports a wide variety of low voltage electronic applications needing reliable signal conditioning and noise immunity.

The device incorporates a single inverter element with a Schmitt trigger input, enabling it to process input signals with slow edges or noisy signals effectively. Packaged in a compact 14-pin TSSOP surface mount package, it is ideal for space-critical designs and modern PCB assembly techniques.

With a maximum propagation delay time of 9.5 nanoseconds at a specified load capacitance, it ensures quick switching speed suitable for timing-sensitive circuits. The IC supports ambient operating temperatures from -40°C to 125°C, making it well suited for industrial, automotive (non-automotive standard), and commercial electronics environments requiring robust thermal performance.

The logic family is LVC compatible CMOS technology, which assures low power consumption and compatibility with modern digital logic levels. Output current capabilities include a maximum high-level output current of -24 mA and a maximum low-level output current of 24 mA, catering to a range of output drive requirements.

This product complies with RoHS standards, ensuring it is manufactured with reduced hazardous substances, supporting environmentally responsible electronics manufacturing practices.

Operates with supply voltage range from 1.65 V to 3.6 V for flexible power options. Features a maximum propagation delay time of 9.5 nanoseconds ensuring fast switching performance. Includes 1 Schmitt trigger input element per chip, providing signal conditioning with hysteresis.

Built with a 14-pin TSSOP package suitable for surface mounting on printed circuit boards. Supports operating temperature range from -40°C to 125°C, suitable for diverse industrial environments. Logic family LVC compatible for low voltage CMOS applications.

Maximum high-level output current is -24 mA and maximum low-level output current is 24 mA. Compliant with RoHS standards ensuring reduced hazardous substances.

This Schmitt Trigger Inverter IC from Texas Instruments is well suited for use in industrial automation, consumer electronics, communications infrastructure, and various electronics devices. It enables signal refinement in systems that require clean digital transitions from noisy or slow-changing analog signals.
