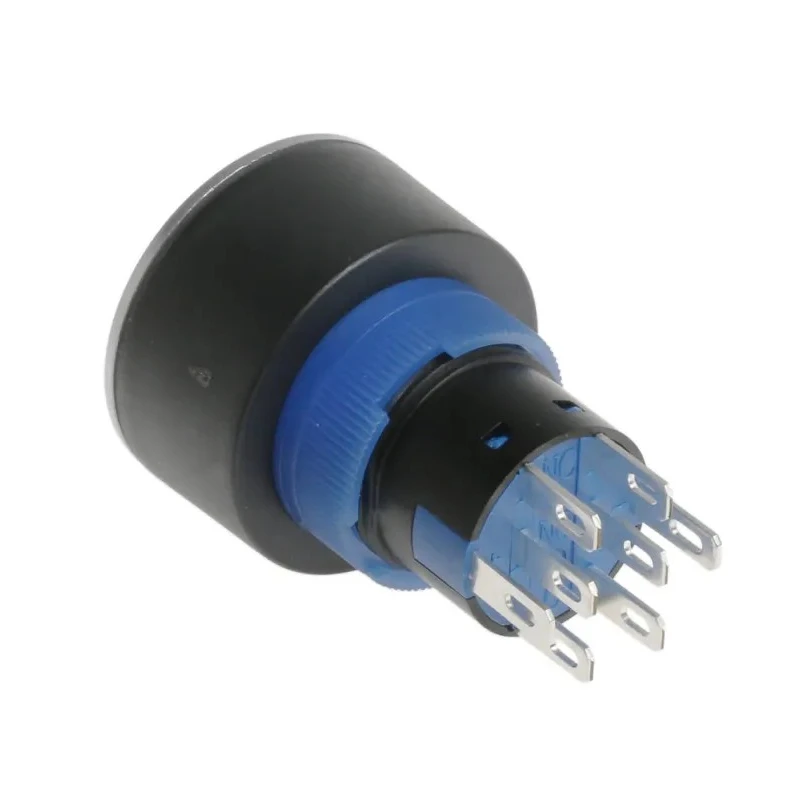

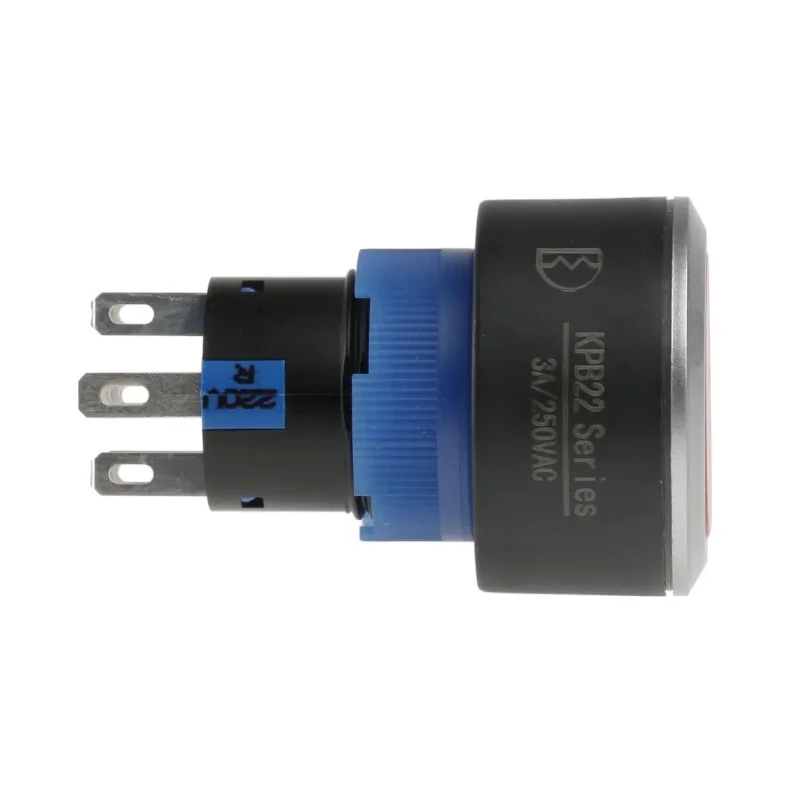

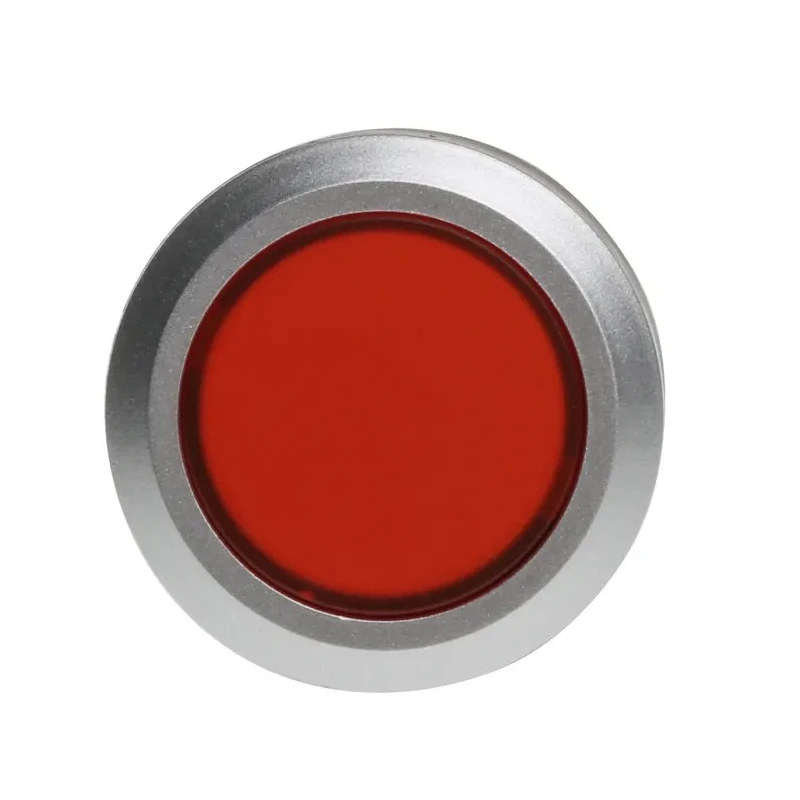

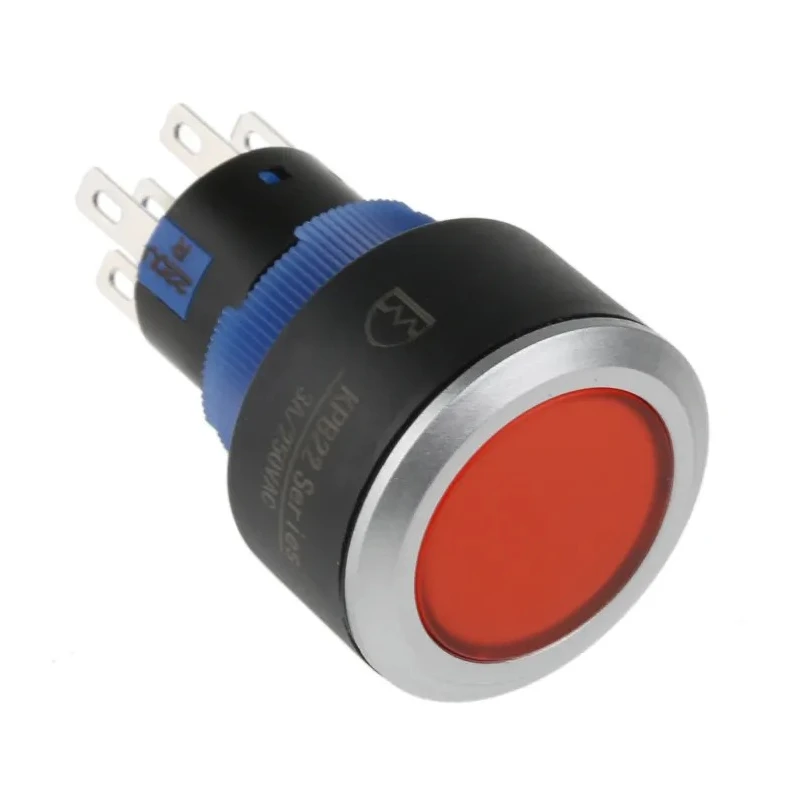

RS PRO Illuminated Push Button Switch Momentary Panel Mount DPDT Red LED IP65 250 V 175-8245

RS PRO 175-8245 is a high-quality illuminated push button switch designed for momentary operation with a double-pole double-throw (DPDT) contact configuration. The device is mounted on panels requiring a 22.2 mm cutout size and features a red LED for clear status indication, making it suitable for precise control panel applications.

This switch is rated IP65, providing excellent protection against dust ingress and water jets, which makes it ideal for use in industrial environments requiring robust and reliable control components. It operates within temperature limits ranging from -35°C to 70°C, accommodating a wide range of operational conditions.

The actuator is of a flat style with a red color, matched by the LED color, providing high visibility and user feedback. The terminal connections are designed for soldering, ensuring secure and long-lasting electrical contacts.

Conforming to UL 94 V-0 and V-2 standards, it features flame-retardant materials enhancing safety during operation. This illuminated push button switch supports operating voltages of up to 250 V AC/DC with a contact current rating of 3 to 5 amperes, making it suitable for various electronic measuring instruments, automation systems, communication equipment, and industrial control units.

This switch has a 22.2 mm panel cutout size for easy installation. The actuator color and LED are both red for clear visual indication. The switch operation is momentary, ideal for push-to-activate control. It supports AC and DC voltage up to 250 V, suitable for various industrial uses.

IP65 rating ensures protection against dust and water ingress. The terminal type is solder for secure electrical connections. Operates reliably between -35°C and 70°C temperature range. The flat actuator style offers a sleek ergonomic design for panel mounting.

It meets UL 94 V-0 and UL 94 V-2 standards ensuring material flame resistance. The switch contact current rating is 3 to 5 A for dependable current handling.

Applications for this product encompass communication equipment, wireless devices, electronic measuring instruments, office automation equipment, and industrial machinery control panels. The rugged design and illumination feature provide visual status feedback, which is essential in high-precision and safety-critical environments.
