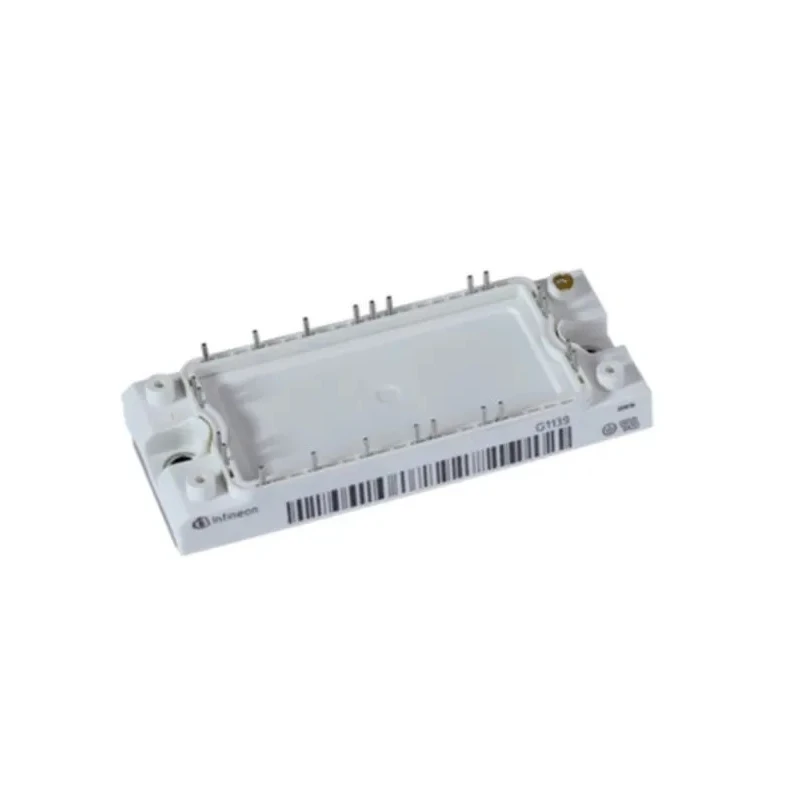

Infineon N-Channel IGBT Module FP50R12KT4PBPSA1, 50 A, 1200 V, EASY2B Package, Clamp Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 17mm |
| Length | 107.5mm |
| Model | FP50R12KT4PBPSA1 |
| Width | 45mm |
| Mount Type | Clamp |
| Series | FP50 |
| Maximum Operating Temperature | 150°C |
| Package Type | EASY2B |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Collector Current Ic | 50A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.25V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 20mW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- This module features TRENCHSTOP IGBT4 technology for low switching losses.
- It has a compact EASY2B package with clamp mount for easy installation.
- Operating temperature ranges from -40°C up to 150°C, suitable for demanding environments.
- The module provides high reliability and power density with copper base plate for optimal heat dissipation.
- Maximum collector emitter saturation voltage is 2.25 V ensuring efficient conduction.
- Maximum power dissipation is 20 mW, enabling energy-efficient operation.
- Designed predominantly for servo motor controls and industrial motor drives.
- The module supports maximum gate emitter voltage of 20 V ensuring safe gate drive control.
Product Description
The Infineon FP50R12KT4PBPSA1 is a high-performance N-Channel IGBT Module designed for industrial and power electronics applications. It supports a maximum continuous collector current of 50 A and a collector emitter voltage rating of 1200 V delivered in a compact EASY2B package with clamp mounting for secure and stable connection.
This module incorporates the advanced TRENCHSTOP IGBT4 technology, offering low switching losses and enabling high switching frequencies suitable for servo motors, motor control, and drive systems. Its copper base plate construction optimizes heat spreading to maintain operational efficiency and reliability.
The operating temperature range of -40°C to 150°C allows use in a wide range of harsh environments. Additionally, the module's maximum collector emitter saturation voltage of 2.25 V ensures minimal conduction losses. The gate emitter voltage rating of 20 V facilitates stable gate control signals.
With a power dissipation of only 20 mW, this module is engineered for energy efficiency, offering high power density in a compact form factor. Its dimensions of 107.5 mm length, 45 mm width, and 17 mm height are optimized for integration into industrial setups.
Compact EASY2B package suitable for tight spaces. Clamp mount type providing ease of installation. RoHS compliant ensuring environmentally safe use. Ideal for servo drives, motor control, and industrial automation. Supports high reliability and power density applications.
EnvMart invites you to explore our extensive range of Infineon semiconductor products and IGBT Modules designed for industrial, manufacturing, and power electronics needs. Our catalog offers high-quality components engineered to meet stringent performance standards and reliability requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for the Infineon FP50R12KT4PBPSA1 is 50 A.
This module has a collector emitter voltage rating of 1200 V.
The operating temperature range for this model is from -40°C to 150°C.
The maximum collector emitter saturation voltage is 2.25 V, ensuring efficient conduction.
This module features a clamp mount type for secure installation.
The dimensions are 107.5 mm in length, 45 mm in width, and 17 mm in height.
It incorporates TRENCHSTOP IGBT4 technology, which is designed for low switching losses.
The maximum gate emitter voltage is 20 V, allowing for safe gate drive control.
The maximum power dissipation is 20 mW, enabling energy-efficient operation.
Yes, the module is RoHS compliant, ensuring environmentally safe use.
This module is designed predominantly for servo motor controls and industrial motor drives.
The module features a copper base plate for optimal heat dissipation.
