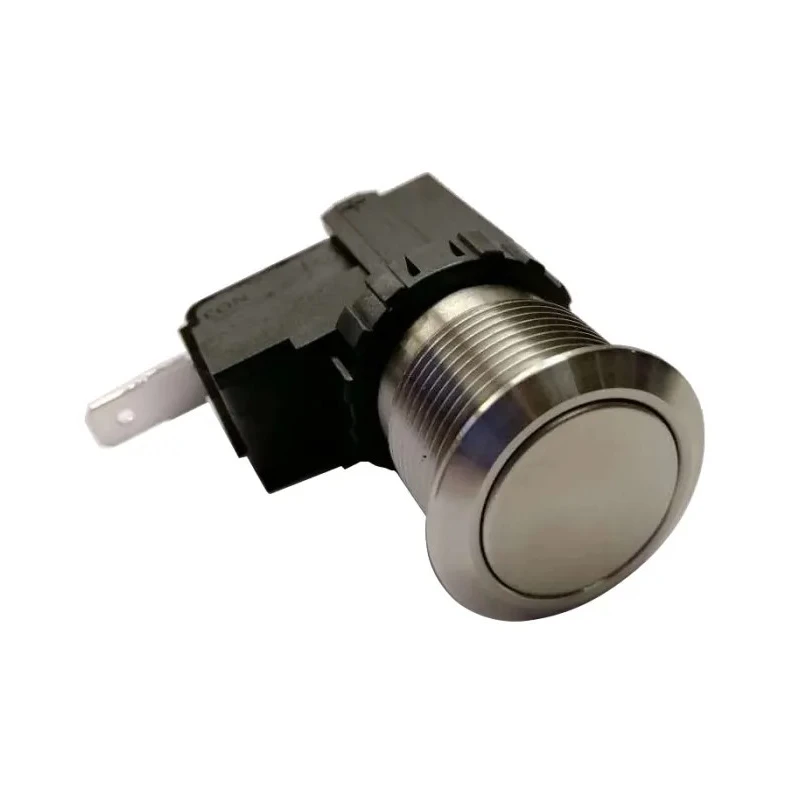

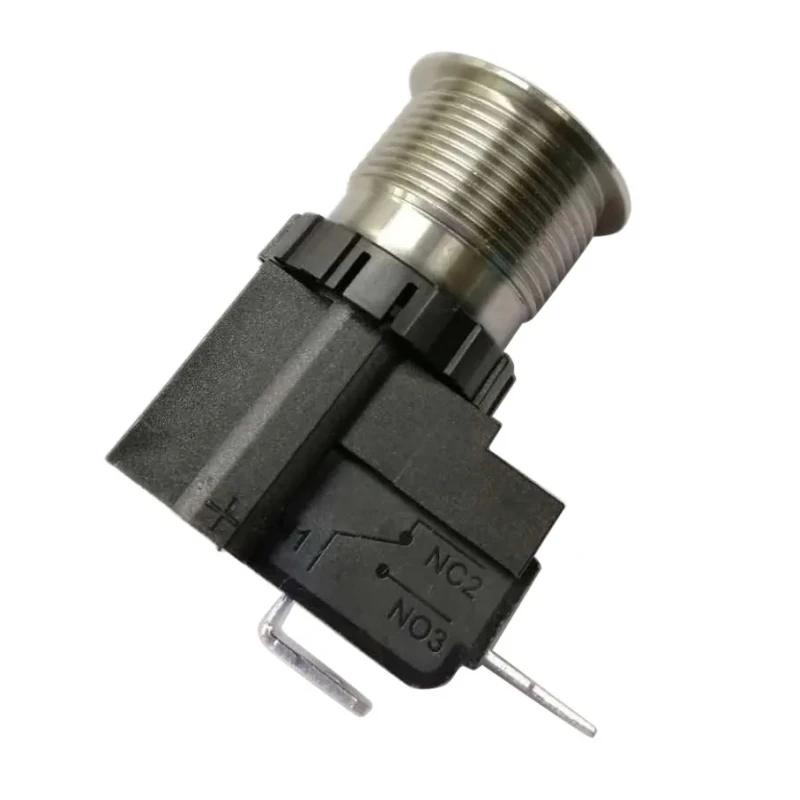

RS PRO Push Button Switch, Momentary, Panel Mount, 19.1 mm Cutout, SPST, IP67, 36 V DC 250 V AC 175-8365
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 175-8365 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 19.1 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | cULus Recognized, EC18, EN18, UL 94 V-0, UL 94 V-2 |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 36V dc |
| Actuator Style | Flat |
| Switch Contact Current | 16, 26A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a silver-colored flat actuator for easy operation.
- Configured as a Single Pole Single Throw (SPST) switch with momentary action.
- Rated IP67 for dust and water resistance ensuring durability in harsh environments.
- Operates at 36 V DC and 250 V AC with a switch contact current of up to 26 A.
- Equipped with quick connect terminals for fast installation.
- Designed for operation within a wide temperature range from -35°C to 70°C.
- Compliance with multiple standards including cULus Recognized, EC18, EN18, and UL 94 V-0/V-2 flammability classifications.
- Suitable for industrial control, medical equipment, security monitoring, vehicle peripherals, and audio-visual equipment.
Product Description
RS PRO 175-8365 Push Button Switch is a robust momentary switch featuring a sleek silver flat actuator and designed for panel mounting with a precise 19.1 mm cutout. This switch has a SPST contact configuration and supports high current ratings up to 26 A, suitable for industrial and commercial electrical control applications.
Its IP67 rating ensures superior protection against dust and water ingress, making it ideal for use in harsh industrial environments.
Operating comfortably over a temperature range from -35°C to 70°C, this product meets strict approvals and standards such as cULus Recognized and UL 94 V-0/V-2 rated flame retardancy.
The switch features quick connect terminals that enable straightforward installation, reducing setup time in manufacturing or maintenance scenarios.
Typical use cases include industrial control instruments, medical devices, security monitoring systems, vehicle peripherals, and audio-visual equipment, reflecting its versatile application spectrum.
This product is manufactured in Taiwan, Province Of China, and is supplied new, ready for integration into control panels and automation projects. Features a silver-colored flat actuator for easy operation. Configured as a Single Pole Single Throw (SPST) switch with momentary action.
Rated IP67 for dust and water resistance ensuring durability in harsh environments. Operates at 36 V DC and 250 V AC with a switch contact current of up to 26 A. Equipped with quick connect terminals for fast installation.
Designed for operation within a wide temperature range from -35°C to 70°C. Compliance with multiple standards including cULus Recognized, EC18, EN18, and UL 94 V-0/V-2 flammability classifications. Suitable for industrial control, medical equipment, security monitoring, vehicle peripherals, and audio-visual equipment.
Discover a comprehensive range of Push Button Switches and components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 36 V DC and 250 V AC with a switch contact current of up to 26 A.
It has an IP67 rating, providing protection against dust and water ingress, making it suitable for harsh environments.
The switch is designed to operate within a temperature range of -35°C to 70°C.
It is equipped with quick connect terminals for fast and straightforward installation.
This model complies with several standards including cULus Recognized, EC18, EN18, and UL 94 V-0/V-2 for flammability.
The required panel cutout size for this switch is 19.1 mm.
It is configured as a Single Pole Single Throw (SPST) switch with momentary action.
The actuator is silver-colored and features a flat style for easy operation.
It is suitable for various applications including industrial control, medical equipment, security monitoring, vehicle peripherals, and audio-visual equipment.
This push button switch is manufactured in Taiwan, Province Of China.
The switch can handle a maximum contact current of 26 A.
The actuator style of this model is flat, designed for easy operation.
