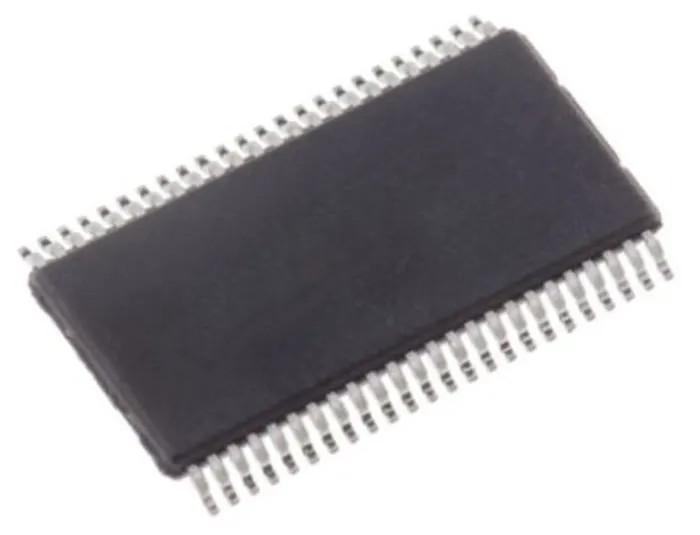

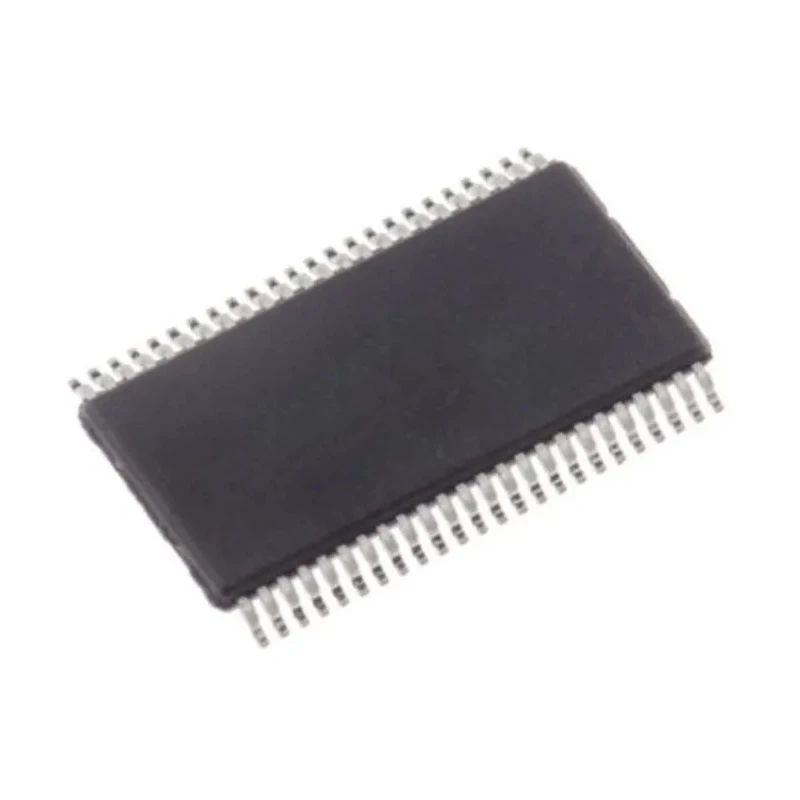

Renesas Electronics Bus Transceiver 16-Bit Non-Inverting 3 State 48-Pin TSSOP 74FCT162245ATPAG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1mm |
| Length | 12.5mm |
| Model | 74FCT162245ATPAG |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74FCT |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 16 |
| Pin Count | 48 |
| Maximum Supply Voltage | 7V |
| Logic Family | 74FCT |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | -0.5V |
| Maximum Propagation Delay Time @ CL | 4.9ns |
| Output Level | 3 State |
| Input Level | CMOS |
| Balanced Output Drivers | ±24mA |
Key Features
- Operates as either two independent 8-bit or one 16-bit transceiver.
- Features low ground bounce and minimal undershoot, reducing noise.
- Plug-in replacement for 74FCT16245T for interface applications.
- Supports operating temperature range from -40°C to +85°C.
- Provides balanced output drivers with ±24mA drive capability.
- Designed for surface mounting in a 48-pin TSSOP package.
- Maximum supply voltage of 7V with typical propagation delay time of 4.9ns.
- Low input and output leakage current at a maximum of 1 µA.
Product Description
Renesas Electronics 74FCT162245ATPAG is a high-speed, low-power 16-bit bus transceiver designed for synchronous communication between two buses, ideal for industrial electronics and semiconductor applications. It supports functioning as two 8-bit transceivers or a single 16-bit transceiver with non-inverting 3-state outputs, packaged in a compact 48-pin TSSOP surface mount configuration.
This device offers low ground bounce and undershoot, minimizing the need for external termination components and enhancing signal integrity. Its balanced output drivers deliver ±24mA current to maintain reliable signal levels while reducing system switching noise.
Its wide operating temperature range from -40°C to 85°C and a supply voltage range up to 7V ensure durability in demanding environments. The typical propagation delay of 4.9ns ensures fast data transfer rates suitable for complex electronic systems.
Featuring low input and output leakage currents (.
Explore more products in our Bus Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 7V.
The typical propagation delay time is 4.9ns.
It operates within a temperature range from -40°C to +85°C.
This bus transceiver supports 16 channels.
It provides a 3-state output type.
The package type is TSSOP, specifically designed for surface mounting.
The balanced output drivers have a drive capability of ±24mA.
Yes, it can operate as either two independent 8-bit transceivers or one 16-bit transceiver.
The input level type is CMOS.
The height of this model is 1mm.
The minimum supply voltage is -0.5V.
The country of origin for this model is India.
