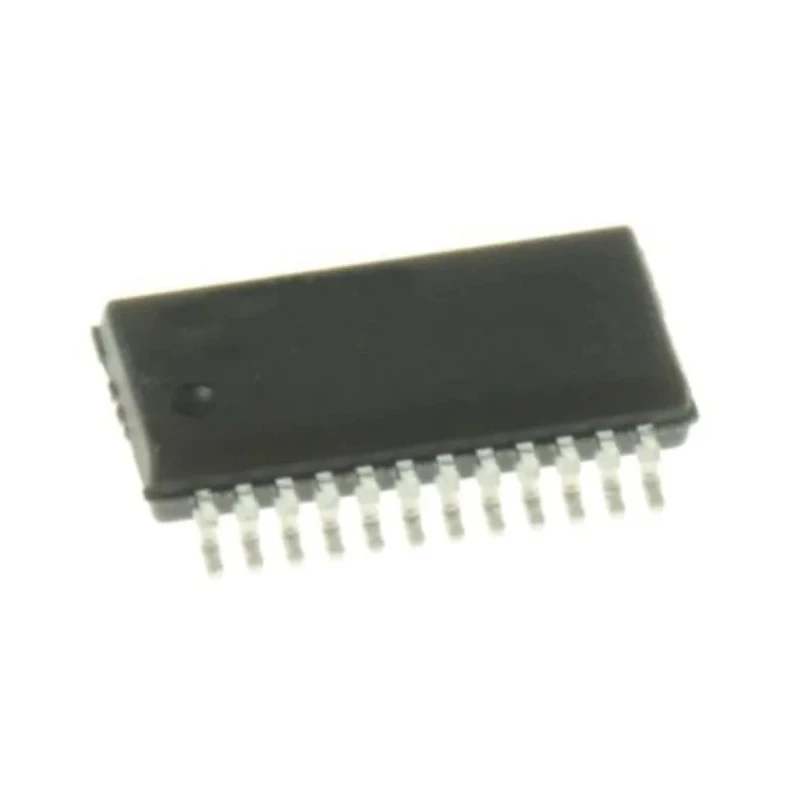

Renesas Electronics Bus Switch, 1 x 1:1 Configuration, 24-Pin TSSOP QS3861PAG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.47mm |
| Length | 8.7mm |
| Model | QS3861PAG |
| Mount Type | Surface |
| Series | QS3861 |
| Configuration | 1 x 1:1 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Number of Elements per Chip | 21 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2.3V |
| Maximum Propagation Delay Time @ CL | 0.25ns |
| Maximum Quiescent Current | 3μA |
| Maximum On State Resistance | 15Ω |
| Configuration1 x 1 | 1 |
| Renesas Electronics QS3861PAG, Bus Switch, 1 x 1 | 1, 24-Pin TSSOP |
Key Features
- The component features 21 CMOS high-speed TTL-compatible switches.
- Low ON resistance of 5 ohms ensures minimal signal degradation and noise.
- Supports operating temperature range from -40°C to +85°C.
- Maximum supply voltage is 3.6 volts with minimum supply voltage of 2.3 volts.
- Package dimensions include length of 8.7 mm and height of 1.47 mm.
- Switches are bidirectional with zero propagation delay and zero ground bounce effects.
- Available in surface mount package suitable for compact PCB designs.
- Includes undershoot clamp diodes on all switch and control inputs.
Product Description
Renesas Electronics QS3861PAG is a high-performance bus switch integrated circuit featuring 21 high-speed CMOS TTL-compatible switches designed for efficient signal routing and switching applications.
This 1 x 1:1 configuration device is packaged in a compact 24-pin Thin Shrink Small Outline Package (TSSOP), enabling easy surface mounting on printed circuit boards with limited space.
The low ON state resistance of 5 ohms allows for electrical inputs to be connected with minimal signal loss or added propagation delay, ensuring high signal integrity and reduced ground bounce noise, essential for sensitive electronics and high-frequency signals.
Operating over a temperature range from -40°C to +85°C, it is suitable for robust industrial and commercial electronics environments, providing reliable switching performance under various thermal conditions.
The bus enable (BE) signal allows control to activate the switches conveniently, and built-in undershoot clamp diodes protect the device against voltage spikes on switch and control inputs.
The device runs on a supply voltage ranging from a minimum of 2.3V up to a maximum of 3.6V while maintaining a low maximum quiescent current of 3 microamperes, optimizing power consumption in powered systems.
This component complies with RoHS environmental standards, helping meet regulatory requirements for hazardous substance restrictions in electronic products.
The QS3861PAG is an ideal choice for industrial, telecommunications, computing, and consumer electronics, where precise and fast switching with low noise and power consumption is critical.
The small footprint and surface mount design support modern high-density PCB applications. Available from reliable distributors, it supports designers in creating compact, efficient electronic designs that meet demanding performance criteria.
Explore more in our Electronics Components category for additional semiconductor and IC solutions to complement your designs at EnvMart.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 3.6 volts.
The minimum operating temperature for the QS3861PAG is -40°C.
This component features 21 high-speed CMOS TTL-compatible switches.
The maximum ON state resistance is 15 ohms, ensuring minimal signal degradation.
The package dimensions include a length of 8.7 mm and a height of 1.47 mm.
This model supports surface mount installation, suitable for compact PCB designs.
The maximum quiescent current is 3 microamperes, optimizing power consumption.
The configuration of this bus switch is 1 x 1:1.
Yes, it complies with RoHS environmental standards, meeting regulatory requirements for hazardous substance restrictions.
The maximum propagation delay time is 0.25 nanoseconds.
The logic family of this component is CMOS.
It is suitable for industrial, telecommunications, computing, and consumer electronics applications where efficient signal routing is critical.
