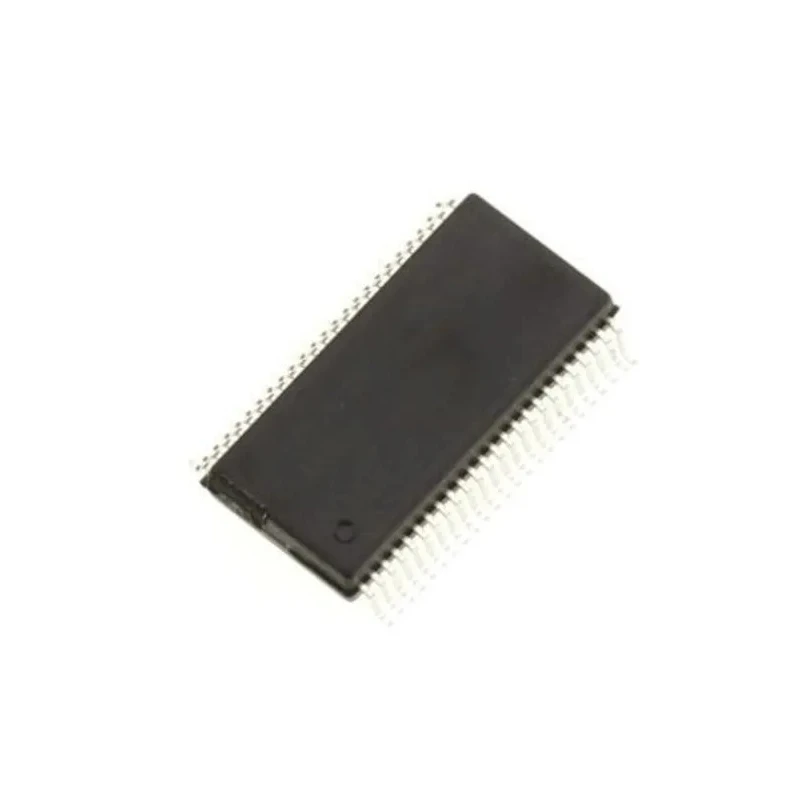

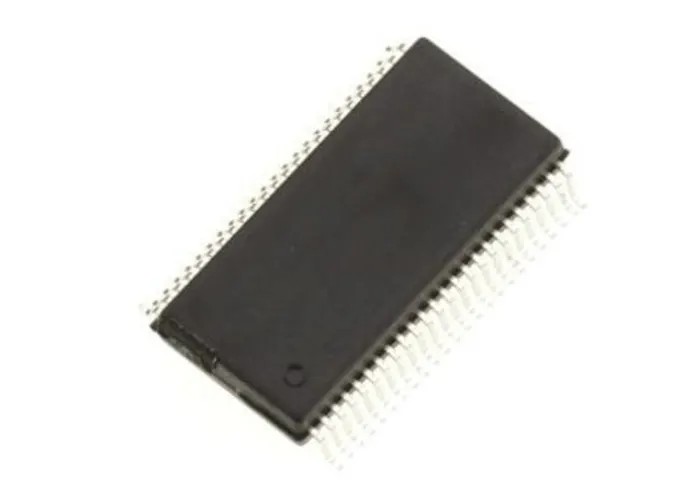

Renesas Electronics Bus Transceiver 8-Bit Non-Inverting 3 State SSOP 48-Pin 74ALVC164245PVG8
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 2.3mm |
| Length | 15.9mm |
| Model | 74ALVC164245PVG8 |
| Mount Type | Surface |
| Output type | 3 State |
| Series | 74ALVC |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Non-Inverting |
| Number Of Channels | 8 |
| Pin Count | 48 |
| Maximum Supply Voltage | 6V |
| Logic Family | CMOS |
| Logic Function | Bus Transceiver |
| Minimum Supply Voltage | -0.5V |
| Maximum High Level Output Current | 50mA |
| Maximum Propagation Delay Time @ CL | 5.8ns |
| Maximum Low Level Output Current | -50mA |
| Output Level | 3 State |
| Input Level | CMOS |
Key Features
- The transceiver features CMOS logic family for low power consumption.
- It supports 8 bidirectional channels with non-inverting logic function.
- Minimum operating temperature of -40°C and maximum up to 85°C ensures reliability in harsh environments.
- SSOP surface mount package with 48 pins offers a compact footprint.
- Maximum propagation delay time at CL is 5.8 nanoseconds enabling fast data transfer.
- It features 3-state outputs for bus-oriented applications allowing multiple devices to share the same bus.
- Supports voltage rails with VCCA operating between 2.7V to 3.6V and VCCB at 5V ± 0.5V.
- Maximum high level output current is 50mA and low level output current is -50mA.
Product Description
Renesas Electronics 74ALVC164245PVG8 is an 8-bit bus transceiver featuring a non-inverting logic function and 3-state outputs, enclosed in a compact 48-pin SSOP surface mount package. It operates with two separate supply rails allowing voltage level shifting between 3.3V and 5V domains, suitable for interfacing between different logic voltage levels in embedded systems.
Designed with CMOS logic family technology, this device consumes very low power with a typical static current of 0.4 µA, ideal for power-sensitive applications. The transceiver supports bidirectional data transmission over 8 channels, making it useful in data buses and memory interfacing scenarios.
The device ensures operational reliability across wide temperature ranges from -40°C to 85°C, supporting automotive and industrial temperature requirements. With a maximum propagation delay time of 5.8 ns at specified load conditions, it is suitable for high-speed data communication.
The transceiver's rail-to-rail output swing enhances noise margin, ensuring signal integrity in noisy environments common in industrial and automotive applications. The 3-state output configuration enables multiple devices to share common data buses without contention.
This 74ALVC164245PVG8 transceiver is particularly applicable in industrial electronics, automotive control systems, embedded computing, and other electronic designs requiring robust voltage level translation and efficient bus management.
The transceiver employs CMOS logic family technology for low power consumption. It supports 8 channels with non-inverting 3-state output line configurations. Dual supply rails allow level shifting between 3.3V and 5V systems.
Compact SSOP 48-pin surface mount package reduces PCB footprint. Wide operating temperature range from -40°C to 85°C ensures durability. Propagation delay time of 5.8 ns supports high-speed operations. Rail-to-rail output swing improves noise immunity in industrial environments.
Maximum output current ratings of ±50mA allow reliable interfacing with other devices. Designed for use in industrial, automotive, embedded systems, and communication devices. Explore the wide range of semiconductor and bus transceiver products available on EnvMart for your electronic component needs.
Explore more products in our Bus Transceivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 85°C, ensuring reliability in high-temperature environments.
This bus transceiver supports 8 bidirectional channels, allowing for versatile data transmission.
The maximum propagation delay time at specified load conditions is 5.8 nanoseconds, suitable for high-speed data communication.
It operates with dual supply rails, with VCCA ranging from 2.7V to 3.6V and VCCB at 5V ± 0.5V.
This transceiver features 3-state outputs, enabling multiple devices to share the same bus without contention.
It comes in a compact SSOP (Shrink Small Outline Package) with 48 pins, which helps reduce PCB footprint.
The minimum operating temperature is -40°C, making it suitable for harsh environments.
The maximum supply voltage for this model is 6V, providing flexibility in various applications.
The height of the SSOP package is 2.3mm, allowing for compact designs in electronic applications.
It utilizes CMOS logic family technology, which contributes to its low power consumption.
The maximum high level output current is 50mA, enabling reliable interfacing with other devices.
This model is particularly applicable in industrial electronics, automotive control systems, and embedded computing, requiring robust voltage level translation.
