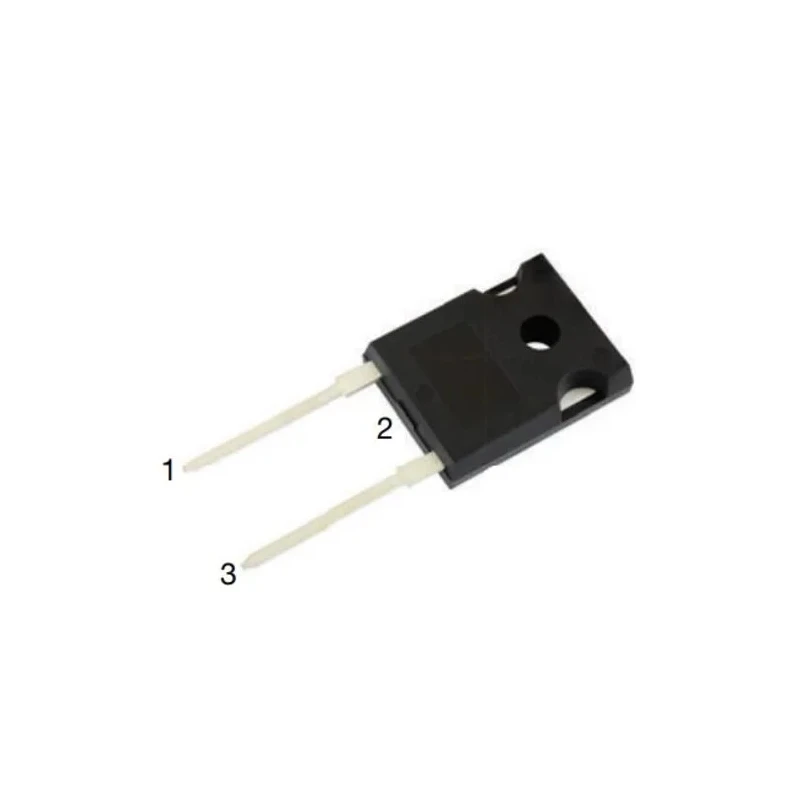

Vishay 600 V 60 A General Purpose Rectifier & Schottky Diode TO-247AD 2L VS-E5TH1506THN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-E5TH1506THN3 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD 2L |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A |
| Maximum Forward Voltage Vf | 1.6V |
| Peak Reverse Recovery Time trr | 49ns |
Key Features
- Features low conduction and switching losses suitable for resonant and soft switching converters.
- Maximum continuous forward current of 60 A with peak reverse voltage of 600 V.
- Optimized for high speed operation with forward voltage drop of 1.6 V.
- Operates reliably in temperature range from -55°C to 175°C junction temperature.
- Single diode configuration with peak surge current rating of 200 A.
- Supported by RoHS compliance ensuring environmentally safe materials.
- Designed for automotive applications with AEC-Q101 qualification and JESD 201 class 1A whisker test pass.
- Ideal for LLC output rectification stages in EV/HEV on-board battery chargers.
Product Description
Vishay VS-E5TH1506THN3 is a high-performance 600 V, 60 A general purpose rectifier and Schottky diode housed in a TO-247AD 2L through-hole package. It is engineered for applications requiring low conduction and switching losses, making it the optimal choice for soft switched, resonant, and medium frequency hard switching converters.
This diode excels in high-speed operations with a maximum forward voltage drop of 1.6 V and fast switching characteristics represented by a peak reverse recovery time of 49 ns. It is rated for robust continuous forward current up to 60 A and a peak non-repetitive forward surge current of 200 A, ensuring reliable performance under transient loads.
The VS-E5TH1506THN3 achieves a high junction temperature tolerance up to 175°C and a wide operating temperature range from -55°C, making it suitable for harsh industrial environments. Its single diode configuration supports various power conversion and rectification tasks while maintaining compliance with RoHS standards for environmental safety.
Specifically designed for automotive electronics, this diode is AEC-Q101 qualified and meets JESD 201 class 1A whisker test requirements, enhancing its credibility for use in electric and hybrid vehicle onboard battery chargers, particularly in LLC output rectification stages.
The device features polyimide passivation, which improves durability and sensitivity to moisture and contaminants. Overall, the VS-E5TH1506THN3 is a reliable semiconductor component widely used in industrial, automotive, and power electronics sectors.
Features low conduction and switching losses suitable for resonant and soft switching converters. Maximum continuous forward current of 60 A with peak reverse voltage of 600 V. Optimized for high speed operation with forward voltage drop of 1.6 V.
Operates reliably in temperature range from -55°C to 175°C junction temperature. Single diode configuration with peak surge current rating of 200 A. Supported by RoHS compliance ensuring environmentally safe materials. Designed for automotive applications with AEC-Q101 qualification and JESD 201 class 1A whisker test pass.
Ideal for LLC output rectification stages in EV/HEV on-board battery chargers. Polyimide passivation enhances device reliability and longevity. Explore more Vishay Schottky Diodes and Rectifiers on EnvMart for your industrial and automotive semiconductor needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the VS-E5TH1506THN3 diode is 60 A.
The peak reverse voltage rating of this rectifier is 600 V.
The forward voltage drop for the VS-E5TH1506THN3 is 1.6 V.
This diode operates reliably within a temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current rating for this unit is 200 A.
The VS-E5TH1506THN3 comes in a TO-247AD 2L through-hole package.
The peak reverse recovery time for this model is 49 ns.
Yes, the VS-E5TH1506THN3 is RoHS compliant, ensuring environmentally safe materials.
This model has a single diode configuration.
It is specifically designed for automotive applications, including use in electric and hybrid vehicle onboard battery chargers.
The VS-E5TH1506THN3 is AEC-Q101 qualified and meets JESD 201 class 1A whisker test requirements.
The country of origin for this diode is India.
