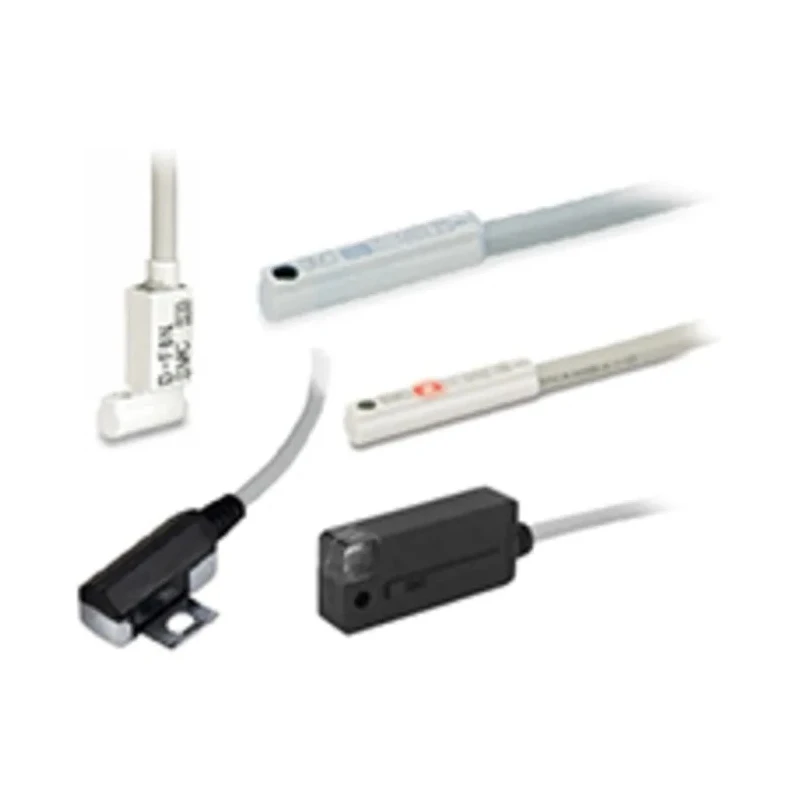

SMC 2-Wire Open End Cable Band NPN Solid State Switch Pneumatic Cylinder & Actuator Switch 24V dc LED D-G5BASAPC
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Height | 18mm |
| Model | D-G5BASAPC |
| Depth | 46mm |
| IP Rating | IP67 |
| Width | 15.5mm |
| Operation Type | NPN |
| Mount Type | Band |
| Series | D-G5 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| For Use With | CG1 Series Air Cylinder |
| Standards/Approvals | IEC 529 |
| Electrical Connection Type | 2-Wire Open End Cable |
| Applicable Load | 24 V dc Relay/PLC |
Key Features
- Compatible with CG1 Series Air Cylinder for seamless integration.
- Features a solid state design for reliable switching operation.
- Equipped with a 2-wire open end cable electrical connection type.
- Operates on 24V dc voltage with NPN operation type for control circuit compatibility.
- LED indicator present to provide operational status feedback.
- IP67 rated for water resistance and protection against dust.
- Supports switching current up to 40mA suitable for relay and PLC interfacing.
- Functions reliably within -10°C to 60°C operating temperature range.
Product Description
SMC D-G5BASAPC is a 2-Wire Open End Cable Band NPN Solid State Switch designed for pneumatic cylinders and actuators, operating at 24V dc with an LED indicator. It is engineered for industrial automation applications and supports reliable cylinder positioning detection.
This switch specifically complements the CG1 Series Air Cylinder, providing a dependable solid state switch solution with a 2-wire open end cable electrical connection. Its NPN operation type ensures compatibility with standard control systems.
The device features a robust IP67 rated enclosure, making it suitable for harsh environments by preventing ingress of dust and water. The switch supports a switching current of up to 40mA, ideal for use with relays and Programmable Logic Controllers (PLCs).
Operating within a temperature range of -10°C to 60°C, this switch ensures performance stability in varying industrial conditions. It complies with IEC 529 standards which attest to its quality and reliability in pneumatic automation tasks.
Its compact form factor with dimensions of 18mm in height, 15.5mm in width, and 46mm in depth allows easy mounting and integration in limited spaces using a band mount type. Compatible with CG1 Series Air Cylinder for enhanced pneumatic control.
Solid state technology for high switching reliability and long life. 2-Wire open end cable connection simplifies installation and wiring. NPN type operation suitable for modern control circuits. IP67 rated enclosure provides excellent resistance to dust and water.
Switching current rated at 40mA for control applications. Wide operating temperature range from -10°C to 60°C for diverse conditions. Compact size facilitates easy installation in pneumatic systems. Meets IEC 529 standards ensuring industrial-grade quality.
LED indicator for clear operational status indication.
This Pneumatic Cylinder Switch is essential for manufacturing, industrial automation, fluid power control, and pneumatic actuator detection systems. The SMC D-G5BASAPC delivers consistent performance and durability required in demanding industrial environments.
Explore a wide range of pneumatic cylinders, actuators, and sensor switches at EnvMart to complete your automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 24V dc.
It features a 2-wire open end cable electrical connection type.
The switch supports a maximum switching current of 40mA.
It functions reliably within an operating temperature range of -10°C to 60°C.
The switch has an IP67 rating, providing protection against dust and water ingress.
It is specifically designed for use with the CG1 Series Air Cylinder.
The dimensions are 18mm in height, 15.5mm in width, and 46mm in depth.
This model uses a band mount type for installation.
The operation type is NPN, which is suitable for standard control systems.
It complies with IEC 529 standards, ensuring quality and reliability in industrial applications.
This switch is essential for manufacturing, industrial automation, fluid power control, and pneumatic actuator detection systems.
Yes, it is equipped with an LED indicator that provides operational status feedback.
