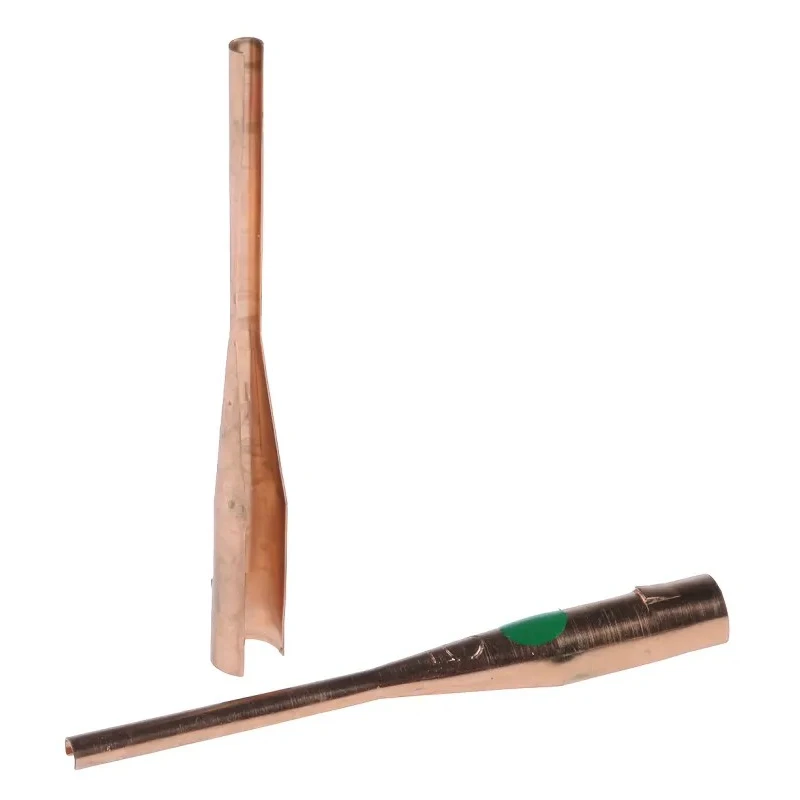

TE Connectivity Insertion & Extraction Tool for Crimp Contact AMPLIMITE High Density Connectors 543382-8
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Model | 543382-8 |
| Sub Type | Extraction & Insertion Tool |
| Contact Type | Crimp |
| For Use With | AMPLIMITE High Density (HD) Connectors |
| • Compatible contacts | HD-22 |
| • Wire size | 28-22 AWG |
| (782-1182) 543382-5 | HD-20 28-20AWG |
| (782-6317) - 1-543382-1 | HD-20 28-24AWG |
| (782-6329) - 543382-8 | HD-22 28-22AWG |
Key Features
- This tool is compatible with HD-22 contacts and wire sizes 28-22 AWG.
- It provides both insertion and extraction functionality for crimp contacts.
- The tip is color coded with a green dot for easy identification.
- The tool is high quality and made in the United States.
- This is a pack of 25 replacement tips for the 91285-1 tool handle.
- It saves time by not requiring tip changes between insertion and extraction.
- Ideal for use in industrial electrical connector maintenance.
Product Description
TE Connectivity 543382-8 is a high-quality insertion and extraction tool designed for crimp contacts used in AMPLIMITE High Density (HD) connectors.
This tool features a tip compatible specifically with HD-22 series connectors supporting wire sizes from 28 to 22 AWG. The tip is color coded green to indicate its type and wire size compatibility for quick and reliable identification.
The 543382-8 tip supports both insertion and extraction of crimp terminals, allowing terminals to be inserted or removed from connector housings without causing damage. This dual function eliminates the need for changing tips between insertion and extraction operations, increasing efficiency and reducing downtime.
Manufactured in the United States, this replacement tip is compatible with the 91285-1 tool handle (catalog number 446-822). It is supplied as a pack of 25 tips, making it suitable for maintenance, repair, and manufacturing applications involving TE Connectivity's AMPLIMITE D-Subminiature connectors.
To replace the tip, remove the old one using the included hex wrench, then install and secure the new tip into the tool handle. Other tips are available for HD-20 series contacts, but this model 543382-8 is specifically for HD-22 contacts.
This tool is essential for industrial, electrical, manufacturing, and laboratory settings requiring precise connector assembly and maintenance. Its robust construction and compatibility make it a reliable choice for professionals working with crimp contact connectors.
This tool is compatible with HD-22 connector contacts and wire size 28-22 AWG. The tip supports both insertion and extraction functions. Pack of 25 replacement tips included. Manufactured in the United States ensuring high quality and reliability.
Compatible with 91285-1 tool handle (446-822). Color coded green tip for easy identification. Reduces tool changeover time by combining functionality. Explore more specialized hand tools and connector accessories from TE Connectivity and other leading brands at EnvMart for your industrial and electronic applications.
Explore more products in our Insertion & Extraction Tool category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 28 to 22 AWG.
It is specifically designed for use with HD-22 crimp contacts.
This tool provides both insertion and extraction functionality for crimp contacts, allowing terminals to be inserted or removed without damage.
The tool is supplied as a pack of 25 replacement tips.
The tip is color coded with a green dot for easy identification of its type and wire size compatibility.
Yes, this tool is manufactured in the United States.
It is designed for use with AMPLIMITE High Density (HD) connectors.
These tips are compatible with the 91285-1 tool handle (catalog number 446-822).
The dual function eliminates the need for changing tips between insertion and extraction operations, increasing efficiency and reducing downtime.
The sub-type of this tool is an extraction and insertion tool.
Yes, it is essential for industrial, electrical, manufacturing, and laboratory settings requiring precise connector assembly and maintenance.
The contact type for this tool is crimp.
