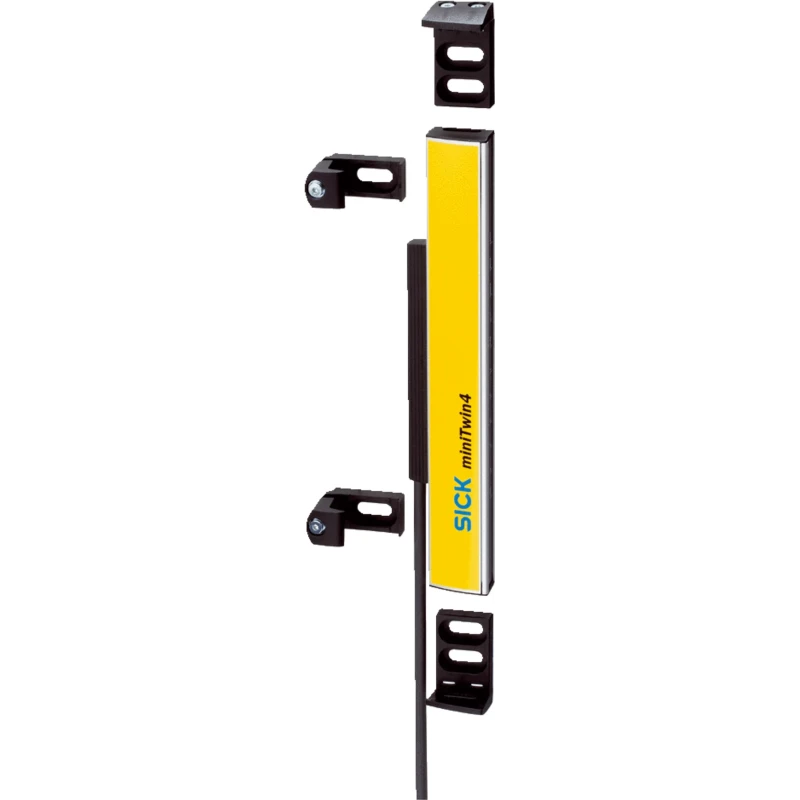

SICK miniTwin4 Series Light Curtain Type 4 Safety 24V, 14mm Resolution, 1 Twin-Stick

SICK miniTwin4 Series Light Curtain C4MT-11414ABB03FE0 is a compact safety device designed for hazardous point protection of fingers and hands. This Type 4 Safety Light Curtain features a 14 mm beam resolution for precise detection and a 1 Twin-Stick configuration in a miniature housing, where the sender and receiver are symmetrically installed. Its innovative twin stick design ensures a secure protective field by positioning one stick opposite and rotated 180 degrees to the other.

Designed for industrial safety applications, this light curtain offers a protective height of 1140 mm and supports a maximum protective width of up to 5 meters. It operates on a 24V supply and has a fast maximum response time of 17 milliseconds, ensuring optimal safety performance. The device is robust, functioning reliably in harsh environments exposed to strong shocks, vibrations, and temperatures as low as -20 degrees Celsius.

The miniTwin4 series supports cascading, enabling the connection of multiple units to extend safety coverage. Operators benefit from diagnostics through protective field visualization and commissioning facilitated by color LED indicators, eliminating the need for additional software. These features contribute to a reduction in mounting and maintenance times.

Applications include integration into automated machinery for enhanced staff safety, minimizing blind zones around hazardous points, and improving the ergonomic work environment to accelerate production processes. The compact size and different protective field heights, with gradations in 60 mm increments, allow flexible adaptation to various safety requirements.

The miniature design saves production space and enables small safety distances. Robust operation under significant shocks, vibrations, and cold temperature environments. Easy commissioning and alignment supported by color LED indicators without software.

Protective field visualization aids in quick diagnostics and maintenance. Cascading capability allows for scalable safety solutions. Application-specific mounting brackets reduce installation times. Eliminates blind spots to ensure operator safety effectively.

Promotes productivity through optimal work ergonomics at machinery.

This product is manufactured in Hungary and meets PL e safety standards. It is ideally suited for industrial, manufacturing, automation, and machine safety applications where finger and hand protection are critical. Explore the full range of automation and control gear safety equipment at EnvMart for complementary safety solutions.
