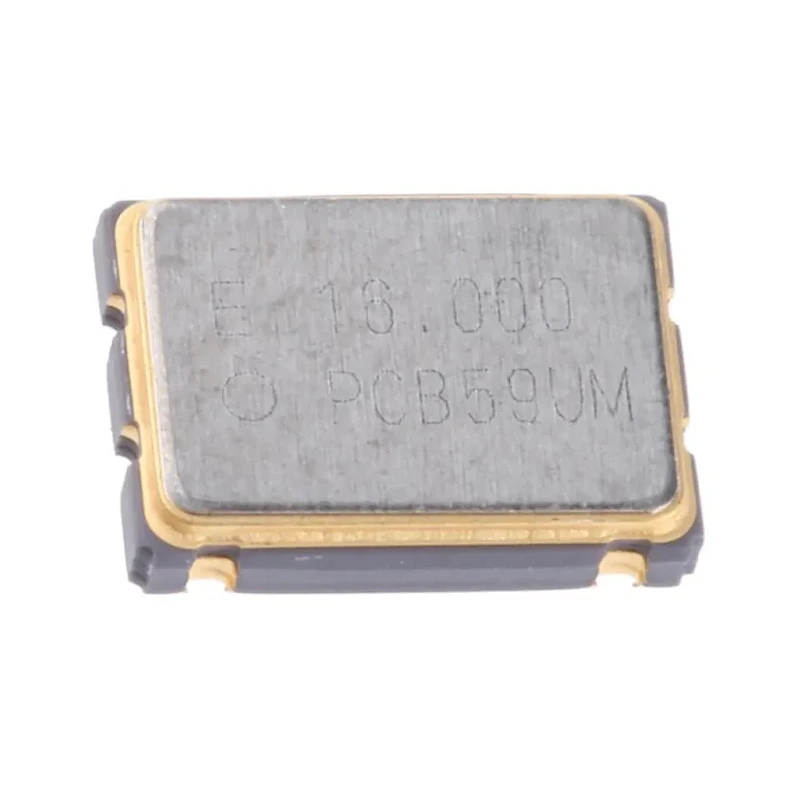

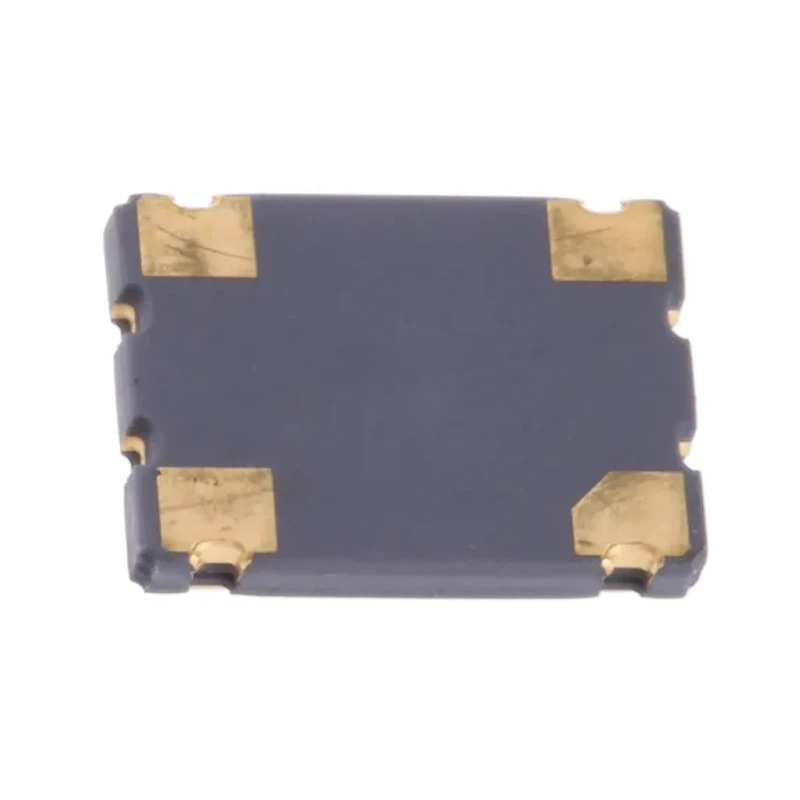

Epson 16MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount Q3309CA40006612

Free Delivery in India | Lowest Global Shipping Charges

Epson 16MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount Q3309CA40006612

Name: Epson 16MHz XO Oscillator ±50 ppm CMOS 4-Pin Surface Mount Q3309CA40006612
Brand: Epson
SKU: 285674
Price: 5.84 USD
Availability: InStock



Category Oscillator Brand Epson Condition New

Specifications

Country of Origin	India
Brand	Epson
Height	1.4mm
Length	7mm
Model	Q3309CA40006612
Width	5mm
Series	SG-8002
Maximum Operating Temperature	70°C
Output Frequency	16MHz
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	ISO9001, ISO 14001, EU RoHS
Pin Count	4
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V
Oscillator Type	XO
Output Level	CMOS
Epson, 16MHz XO Oscillator, ±50ppm CMOS, 4-Pin SMD Q3306JA21005001Brand	Epson

Key Features

Operates with a supply voltage range of 2.7V to 5.5V for versatile applications.
Utilizes CMOS output level for compatibility with modern digital circuits.
Compact ceramic package measures 7mm length, 5mm width, and 1.4mm height.
Functional within temperature range from -20°C to 70°C ensuring reliable performance.
Designed with four pins for secure surface mount installation on PCBs.
Complies with ISO9001, ISO14001, and EU RoHS standards for quality and environmental safety.
Part of the SG-8002 series offering programmable high-frequency crystal oscillators.
Ideal for applications requiring precise timing such as industrial and electronic control systems.

Product Description

The Epson Q3309CA40006612 XO Oscillator is a high-performance crystal oscillator offering a precise 16MHz output frequency with ±50 ppm stability. Featuring CMOS output technology and a robust 4-pin surface mount ceramic case, this oscillator is designed for electronic components requiring compact size and reliable timing signals.

The oscillator supports a wide supply voltage range from 2.7V to 5.5V, allowing flexible integration in various electronic and industrial applications. Its temperature tolerance from -20°C to 70°C ensures dependable operation under diverse environmental conditions.

Compliant with ISO9001, ISO14001, and EU RoHS standards, this oscillator meets high-quality and environmental requirements. The SG-8002 series also incorporates advanced PLL technology capabilities and includes options for low current consumption with stand-by or output enable functions.

Stable 16MHz output frequency with ±50 ppm frequency deviation. CMOS output level ideal for digital circuits and low power consumption. Compact dimensions: 7mm length, 5mm width, 1.4mm height in ceramic case. Wide operational temperature from -20°C to 70°C for industrial use.

Wide supply voltage range, supporting 2.7V minimum to 5.5V maximum input. 4-pin configuration for surface mount PCB assembly. Compliance with ISO9001, ISO14001, EU RoHS for reliability and environmental safety. Suited for industrial electronics including timing, control systems, and signal generation.

This oscillator is widely used in industrial, electronic manufacturing, instrumentation, and control system sectors. It enables precise clock and timing reference signals necessary for consistent performance of systems including communication devices, embedded systems, and consumer electronics.
