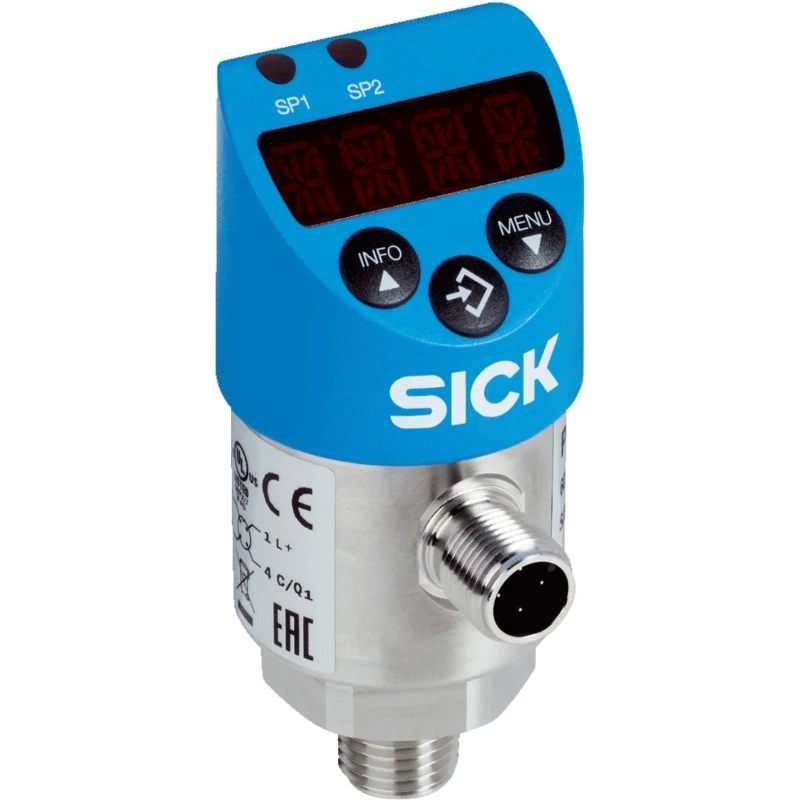

SICK PBS Plus Series Pressure Sensor NPN/PNP Output 0 bar to 250 bar Relative Reading PBS2-RB250SG1SSDLMA0Z

The SICK PBS2-RB250SG1SSDLMA0Z Pressure Sensor is part of the PBS Plus Series, delivering reliable and accurate pressure measurement with a relative reading range from 0 to 250 bar. Designed with an NPN/PNP output option and IO-Link communication, this sensor combines the functionality of an electronic pressure switch, pressure transmitter, and display in one compact unit.

This sensor features a rugged stainless steel measuring cell and a plastic housing rated IP67, ensuring protection against dust and water ingress, making it suitable for harsh industrial environments. The device’s housing and display can be rotated or twisted in two places to facilitate optimal installation alignment and reduce setup time.

Capable of measuring various media such as air, gas, hydraulic fluids, liquids, oil, and water, the sensor excels in diverse applications including hydraulic system pressure monitoring, clamping pressure control in CNC machines, cylinder pressure monitoring in hydraulic presses, and hydrostatic level measurement. Its high accuracy of ±0.5% and fast 5 ms response time ensure precise and timely process control and monitoring.

The IO-Link interface transmits process data directly to control systems as bar values, eliminating the need for manual data conversion. Extensive diagnostic capabilities via IO-Link enable monitoring of pressure peaks and ambient temperature, facilitating predictive maintenance and minimizing downtime.

The pressure switch is configurable using three large pushbuttons and a clear display or remotely via IO-Link. It supports supply voltages from 15 V up to 35 V, with a screw-type terminal for robust electrical connections and is mounted via a threaded process connection.

This sensor is compliant with multiple standards and approvals including RoHS 2011/65/EU, Pressure Equipment Directive 2014/68/EU, and EMC Directive 2014/30/EU, ensuring safety and regulatory adherence. Made in Germany, it provides a dependable industrial solution for precise pressure measurement and control.

Offers switchable switching outputs including PNP and NPN types for flexible installation. Features scalable analog output with 5:1 turn down ratio for precise control. Provides high measurement accuracy of ±0.5% for reliable readings.

Includes IO-Link interface for seamless process data communication. Rugged design with stainless steel measuring cell and IP67 rated housing ensures durability. Housing and display are rotatable and can be twisted in two places for optimal mounting.

Measuring mediums include air, gas, hydraulic fluid, liquid, oil, and water. Supports a wide operating temperature range from -20°C to 85°C. Mount type is threaded with screw terminal type for secure connections. Ideal for hydraulic systems, CNC machine clamping pressure control, and hydrostatic level measurement.
