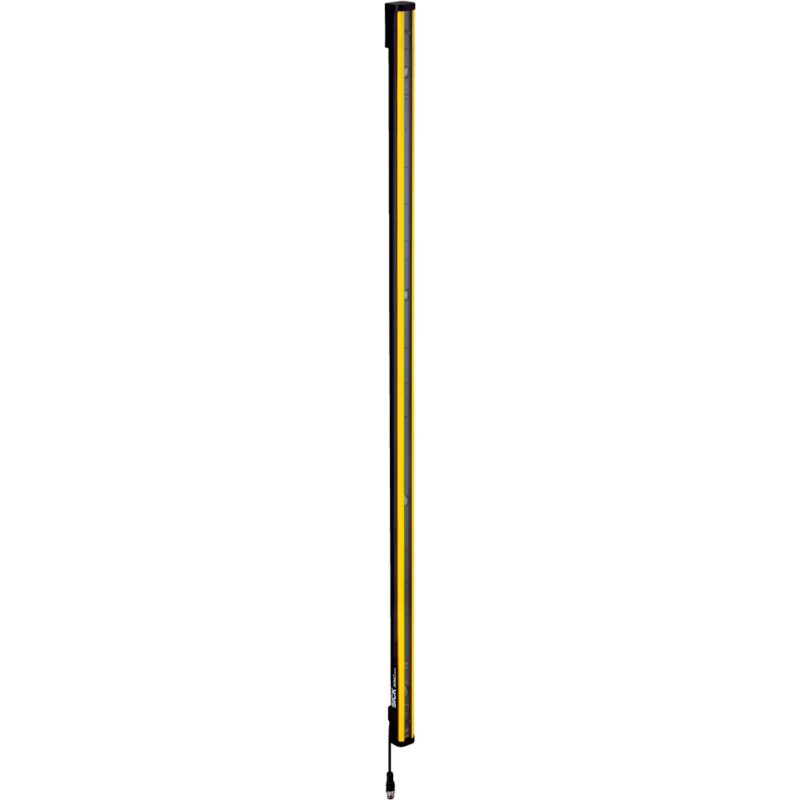

SICK deTem2 Core Series Light Curtain Receiver, 4 Beam(s), 300 mm Resolution deTem2

SICK deTem2 Core Series Light Curtain Receiver deTem2 is a high-performance safety device designed for industrial and automation applications requiring precise access protection. It features 4 beams with a beam resolution of 300 mm and complies with Type 2 safety according to IEC 61496-1, supporting Performance Level c (PL c) standards.

The device offers a maximum protective width of 90 meters and a scanning distance range from 10 meters up to 90 meters, catering to various industrial safety needs. With a compact housing and a length of 1.07 meters, it allows flexible installation in constrained spaces. The maximum response time of 20000 microseconds ensures timely safety interruption to protect personnel and machinery.

This receiver includes smart sensor capabilities providing diagnostic data via IO-Link or NFC technology accessible through the SICK Safety Assistant app, facilitating predictive maintenance and enhanced machine availability. The integrated alignment aid with status LEDs directly on the device substantially reduces installation time and error.

Standardized connectivity through a 5-pin M12 terminal simplifies wiring and commissioning. The device configuration is achievable without dedicated software, saving time and financial resources during setup. Variants are available for use in explosion-hazardous areas and environments requiring IP69K enclosure protection, enhancing durability and reliability under harsh conditions.

Designed for applications such as access protection on automated material transportation systems, press lines, roller conveyors, pallet handling machines, and secondary metallurgy furnaces, this light curtain receiver increases safety and productivity on industrial floors.

This receiver features Type 2 safety compliant with IEC 61496-1 standards. Provides maximum protective width of 90 meters and scanning distance from 10 to 90 meters. Maximum response time of 20000 microseconds for rapid safety signaling.

Smart sensor functionality with diagnostic data via IO-Link or NFC and the Safety Assistant app. Compact housing with integrated alignment aid and status LEDs for easy installation. Standardized 5-pin M12 terminal connectivity for quick setup.

Variants available for explosion-hazardous areas and IP69K rated enclosures. Supports configuration without software for simplified commissioning. Ideal for use in access protection of automated material transport, press lines, and pallet handling.

Made in Germany, ensuring high quality and compliance. Explore the SICK range of industrial Safety Light Curtains on EnvMart for optimized machine protection and safety compliance.
