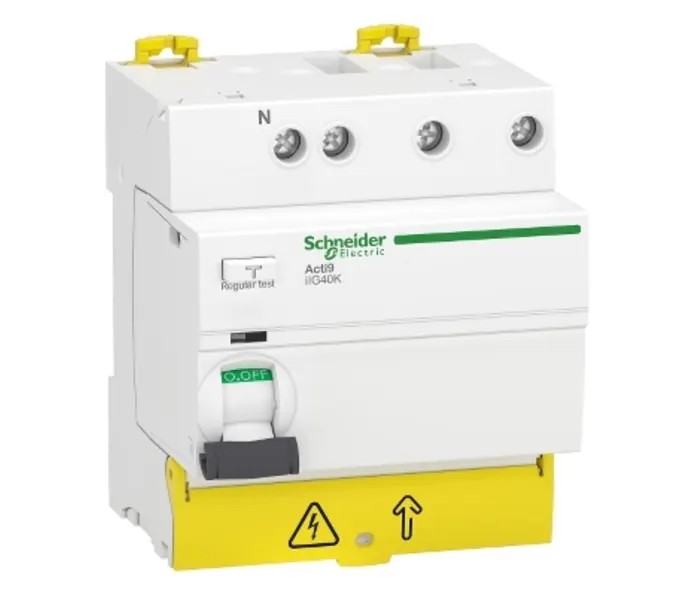

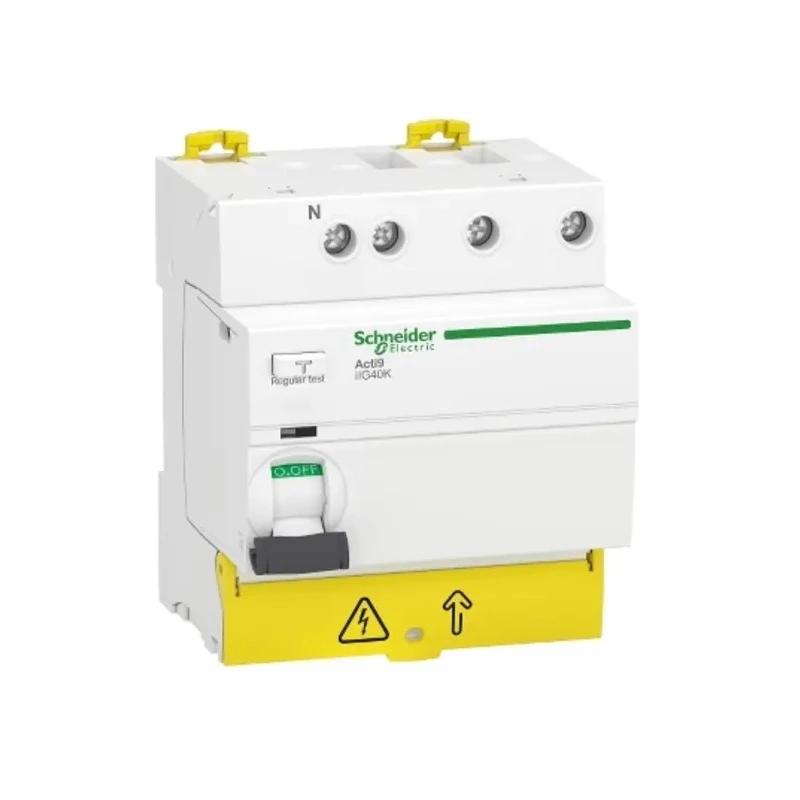

Schneider Electric Acti9 iIG40K Series Residual Current Circuit Breaker 40A 3+N-Pole 30mA Type AC 500A Breaking A9R69740

Schneider Electric A9R69740 Residual Current Circuit Breaker from the Acti9 iIG40K series is designed for reliable earth-leakage protection in residential and industrial electrical systems. It delivers a rated current of 40 amperes across 3+N poles, ensuring comprehensive circuit interruption in case of fault currents.

This RCCB features trip sensitivity of 30 mA with Type AC tripping characteristics, making it suitable for alternating current earth-leakage detection. Its compact build fits a compact 36 mm width, 85 mm height, and 74 mm depth, allowing installation on standard DIN rails for efficient space management.

The device includes a toggle switch actuator that provides simple ON/OFF control along with a trip indicator for easy fault identification. It conforms to rigorous EN/IEC 61008-2-1 standards, guaranteeing compliance with international safety protocols.

With a breaking capacity of 500A, this circuit breaker offers robust protection for power systems handling medium fault levels. It operates reliably within ambient temperatures of -25 °C to 70 °C, ensuring operation in diverse environments.

Designed with a padlockable feature, the breaker allows additional security to prevent unauthorized toggling, enhancing safety in both residential and industrial applications. This product is manufactured in Spain and is part of Schneider Electric's Green premium class, emphasizing energy-efficient and sustainable design.

Supports a trip sensitivity of 30 mA ensuring effective earth-leakage detection. Equipped with Type AC tripping characteristics suitable for general AC applications. Compact dimensions: 36 mm width, 85 mm height, and 74 mm depth for space-saving DIN rail mounting.

Breaking capacity rated at 500A supports industrial and residential power safety. Toggle switch actuator allows easy ON/OFF reset operations with trip indication. Complies with international standards EN/IEC 61008-2-1 ensuring high quality and safety.

Earth leakage protection type is AC ensuring instantaneous break time for fast response. Designed for ambient temperatures ranging from -25 °C to 70 °C for versatile environments. Padlockable design provides additional safety and control against unauthorized operation.

Manufactured in Spain, meets Schneider Electric's premium quality standards.

This Schneider Electric A9R69740 RCCB is ideal for use in residential, industrial, and commercial electrical installations requiring fast and effective earth-leakage fault protection. It offers peace of mind with rigorous standard compliance and ease of use.
