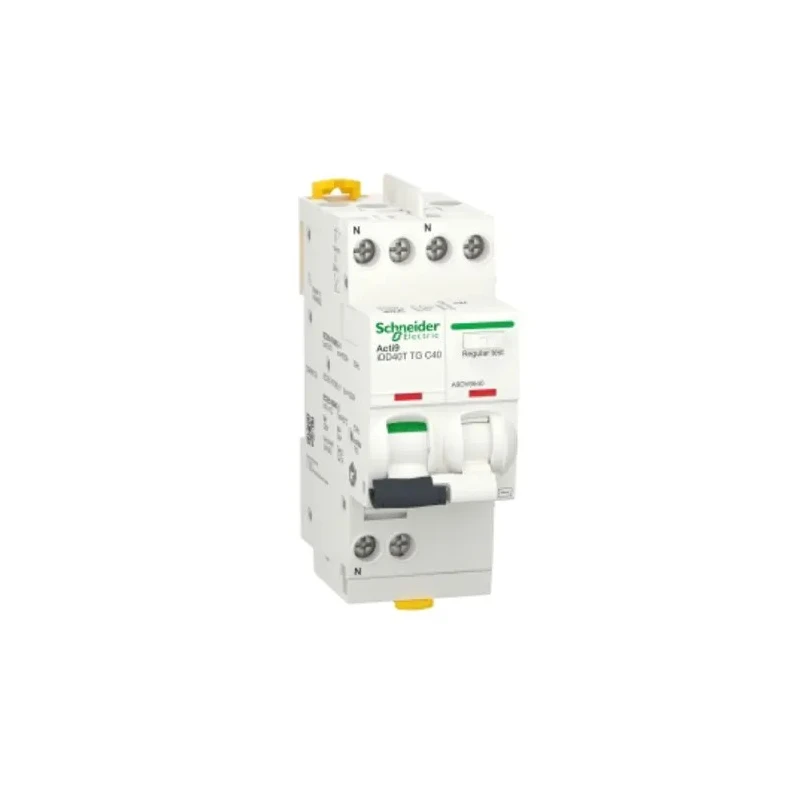

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 40A Current Rating, 1-Pole, 300 mA A9DV6640

Schneider Electric A9DV6640 Residual Current Circuit Breaker with Overload Protection is a premium electrical protection device designed for robust circuit safeguarding in residential and distribution applications. Rated for 40A current with a single-pole configuration and 300 mA trip sensitivity, it effectively detects earth leakage and overload conditions.

This device integrates thermal-magnetic trip technology combining instantaneous short-circuit interruption and delayed overload protection. The toggle switch reset actuator includes ON/OFF and trip indicators to provide clear operational status.

Designed for DIN rail mounting, the compact breaker measures 85mm in height, 36mm width, and 73mm depth, allowing integration into a variety of electrical panels. It is rated for 230V AC voltage and features a robust breaking capacity of 10 kA suitable for typical residential and light commercial electrical networks.

The Schneider Electric A9DV6640 complies with international standards EN/IEC 60947-2 and RoHS directives, ensuring safety, reliability, and environmentally responsible manufacturing practices. Its earth leakage protection of 300 mA AC type helps prevent electric shocks by promptly interrupting the circuit when leakage current exceeds safe levels.

This circuit breaker has electrical durability certified for 20,000 operational cycles and can withstand impulse voltages up to 4 kV, underscoring its resilience in harsh electrical environments. The device can operate reliably across a wide ambient temperature range from -5°C to 60°C with humidity tolerances up to 95% at 55°C.

Its thermal magnetic tripping characteristics of type C make it suitable for general-purpose protection against overloads and short circuits while providing selective coordination in electrical distribution systems.

Originating from France, this Schneider Electric Acti9 iDD40T series RCBO is a Schneider Green premium-class product representing quality and sustainable electrical protection solutions.

This RCBO features thermal-magnetic trip mechanism for reliable overload and short circuit protection. Rated for 230V AC voltage with a breaking capacity of 10kA. Compact dimensions of 85mm height, 36mm width, and 73mm depth enable DIN rail mounting.

Equipped with toggle switch reset actuator with ON/OFF and trip indication. Impulse withstand voltage up to 4 kV and electrical durability of 20,000 cycles ensures long service life. Earth leakage protection type is AC with 300 mA trip sensitivity to prevent hazardous leakages.

Compliant with EN/IEC 60947-2 and RoHS standards. Suitable for residential distribution and overcurrent protection applications. Explore more Schneider Electric circuit protection devices and RCBOs at EnvMart for reliable industrial, residential, and commercial electrical safety solutions.
