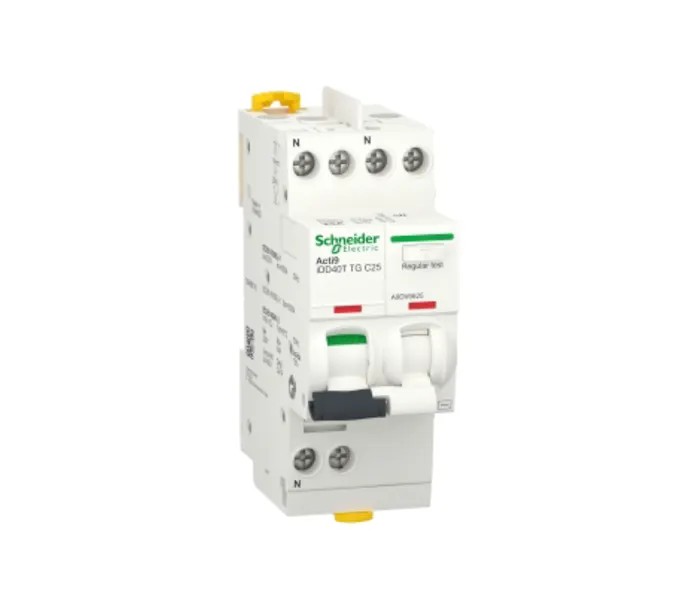

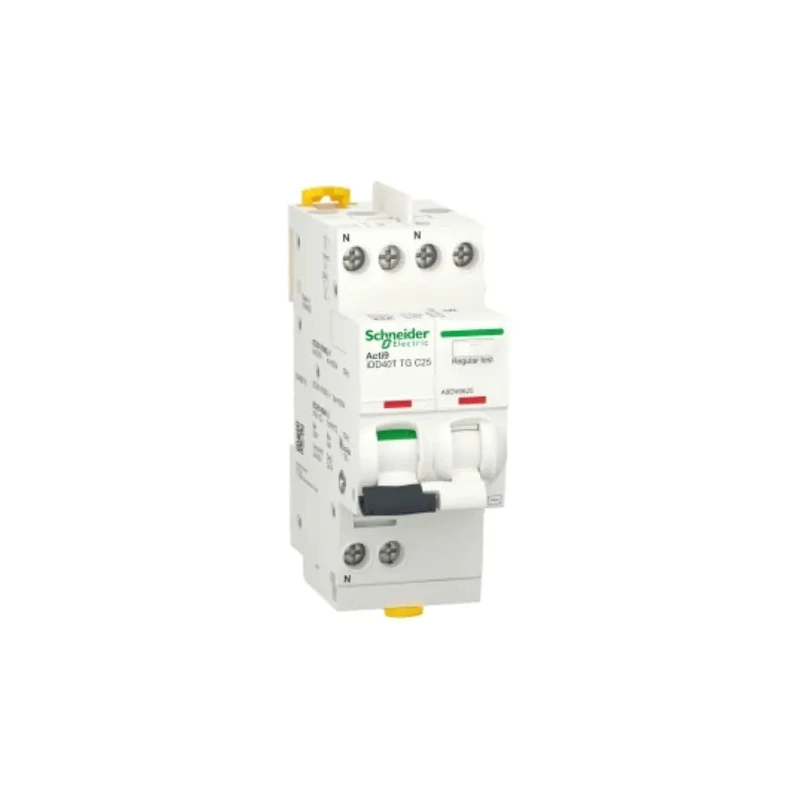

Schneider Electric Residual Current Circuit Breaker with Overload Protection 25A Current Rating 1-Pole 300 mA Trip A9DV6625
Specifications
| Country of Origin | France |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DV6625 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | Acti9 iDD40T |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | EN/IEC 60947-2, RoHS |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- Features a current rating of 25A suitable for residential and commercial circuits.
- Designed with 1-pole configuration and a trip sensitivity of 300 mA for enhanced safety.
- Complies with EN/IEC 60947-2 and RoHS standards ensuring quality and safety.
- Equipped with a toggle switch actuator and thermal magnetic tripping mechanism.
- Compact dimensions measuring 85mm height, 73mm depth, and 36mm width for DIN rail mounting.
- Breaking capacity of 10kA to safely interrupt fault currents.
- Rated for 230V AC operation with tunnel-type terminals for secure connections.
- Impulse withstand voltage rated at 4 kV with 20000 electrical durability cycles.
Product Description
Schneider Electric A9DV6625 Residual Current Circuit Breaker with Overload Protection is a high-quality circuit protection device designed for residential and distribution applications. It features a 25A current rating and a 1-pole configuration optimized for 230V AC systems.
This breaker integrates a thermal magnetic trip mechanism combined with instantaneous earth-leakage protection, providing fast and reliable circuit interruption during overloads or earth fault conditions. The device uses a toggle switch reset actuator with clear ON/OFF and trip indication to facilitate operation and troubleshooting.
Manufactured to comply with standards including EN/IEC 60947-2 and RoHS, the breaker offers a breaking capacity of 10kA, supporting safe interruption of short circuits. Its compact form factor with dimensions of 85 mm height, 73 mm depth, and 36 mm width makes it suitable for DIN rail mounting in electrical panels with limited space.
The tunnel terminal design ensures secure and easy wiring connections, and the earth leakage protection type is AC, making it effective against AC earth faults. The device’s impulse withstand voltage of 4 kV and electrical durability rated at 20000 cycles underscore its robustness and long-term reliability.
Designed to operate in ambient conditions ranging from -5°C to 60°C with high relative humidity tolerance, this Schneider Electric residual current breaker also includes a padlockable feature providing additional safety during maintenance by preventing unauthorized operation.
Current rating: 25A for effective circuit protection. Single pole with 300 mA trip sensitivity for earth leakage detection. Type C trip characteristics to handle typical household and industrial load conditions. DIN rail mounting compatible with easy installation.
Toggle switch actuator for user-friendly resetting and indication. Compliant with relevant IEC and RoHS standards for safety and environmental considerations. Compact dimensions fit standard electrical enclosures. High breaking capacity of 10kA ensures reliable fault clearance.
Robust construction suitable for varied industrial, residential, and commercial use cases.
This Schneider Electric Acti9 series RCBO is ideal for electrical distribution panels requiring integrated earth leakage and overload protection. It is suitable for use in industrial automation, manufacturing, residential installations, and other electrical distribution systems that demand reliable protection components.
Explore more Schneider Electric products and enhance your electrical safety and control solutions with EnvMart's extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this model is 25A, making it suitable for residential and commercial circuits.
This unit has a trip sensitivity of 300 mA, providing enhanced safety against earth leakage.
It features a breaking capacity of 10kA, which allows for safe interruption of fault currents.
The dimensions are 85mm in height, 73mm in depth, and 36mm in width, making it compact for DIN rail mounting.
This model is designed for DIN rail mounting, suitable for installation in electrical panels.
It is rated for operation at 230V AC, which is standard for many residential and commercial applications.
It employs a thermal magnetic tripping mechanism, providing reliable circuit interruption during overloads or faults.
The device complies with EN/IEC 60947-2 and RoHS standards, ensuring quality and safety.
This model provides AC earth leakage protection, making it effective against AC earth faults.
It features a toggle switch reset actuator, which allows for easy operation and indication of the circuit status.
It operates effectively in ambient conditions ranging from -5°C to 60°C, with high humidity tolerance.
This model has a 1-pole configuration, optimized for single-phase applications.
