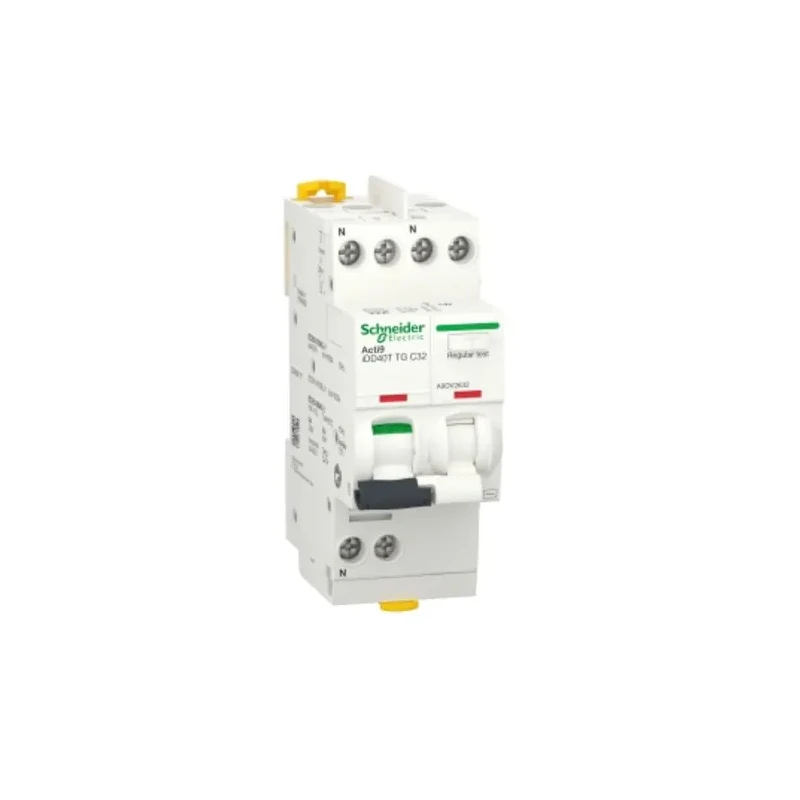

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 32A Current Rating, 1-Pole, 30 mA Trip A9DV2632

Schneider Electric A9DV2632 residual current circuit breaker with overload protection features advanced thermal-magnetic trip unit technology with instantaneous earth-leakage protection and time delay. It is engineered for reliability in distribution and overcurrent protection applications in both residential and light industrial settings. The breaker is designed to mount on standard DIN rails with a toggle switch actuator providing ON/OFF operation and trip indication to facilitate easy monitoring and reset.

Operating at a rated AC voltage of 230V, the device has a current rating of 32A and a breaking capacity of 10kA, allowing it to safely interrupt fault currents. Its trip sensitivity of 30 mA detects earth leakage currents promptly, enhancing safety against electric shocks and fire hazards. The compact form factor, with a height of 85mm, width of 36mm, and depth of 73mm, enables efficient panel integration in confined electrical enclosures.

Built to stringent standards (EN/IEC 60947-2 and RoHS), this Schneider Electric Acti9 series RCBO delivers consistent performance over an electrical durability of 20,000 cycles. It features a 4 kV impulse withstand voltage rating ensuring resilience to transient voltages. Suitable for ambient temperatures ranging from -5 to 60 °C, it ensures stable operation in diverse environments. Its AC earth leakage protection type and Type C tripping characteristic afford optimized response to overloads and short circuits.

This product is ideal for distribution boards requiring combined residual current and overload protection. It is padlockable, providing an extra layer of safety during maintenance or operational shutdowns. Manufactured in France, the breaker exemplifies Schneider Electric's commitment to quality and innovation in electrical safety devices.

Features thermal magnetic tripping mechanism ensuring precise overload protection. Mount type designed for DIN rail installation for easy mounting. Rated AC voltage of 230V AC suitable for residential and commercial distribution.

Has a breaking capacity of 10kA to handle fault currents safely. Includes toggle switch reset actuator with ON/OFF and trip indicator functionality. Compact dimensions: height 85mm, width 36mm, depth 73mm optimize panel space usage.

Trip sensitivity of 30mA for effective earth leakage protection. Complies with EN/IEC 60947-2 and RoHS standards ensuring international quality and safety. Impulse withstand voltage rating of 4kV supports durability under voltage spikes.

Electrical durability of 20000 cycles guarantees long operational life. Operating ambient temperature range from -5 to 60 °C suits varied environments. Choose Schneider Electric Residual Current Circuit Breakers from EnvMart for proven reliability and safety in electrical distribution and protection applications.
