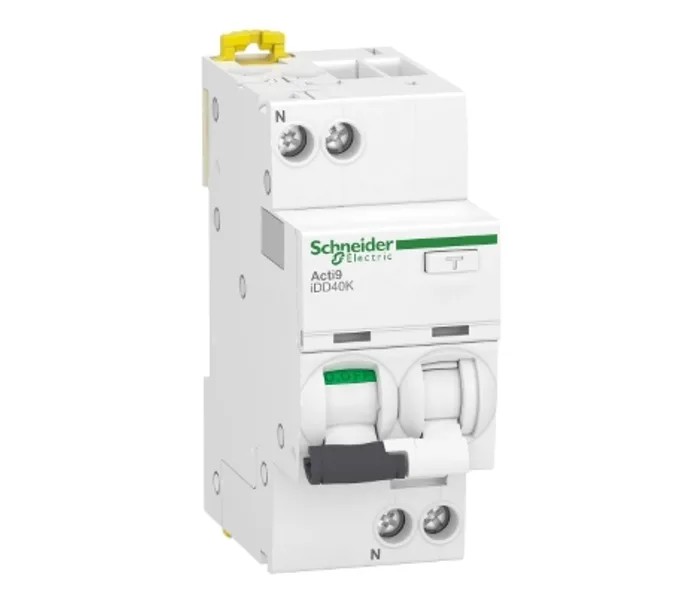

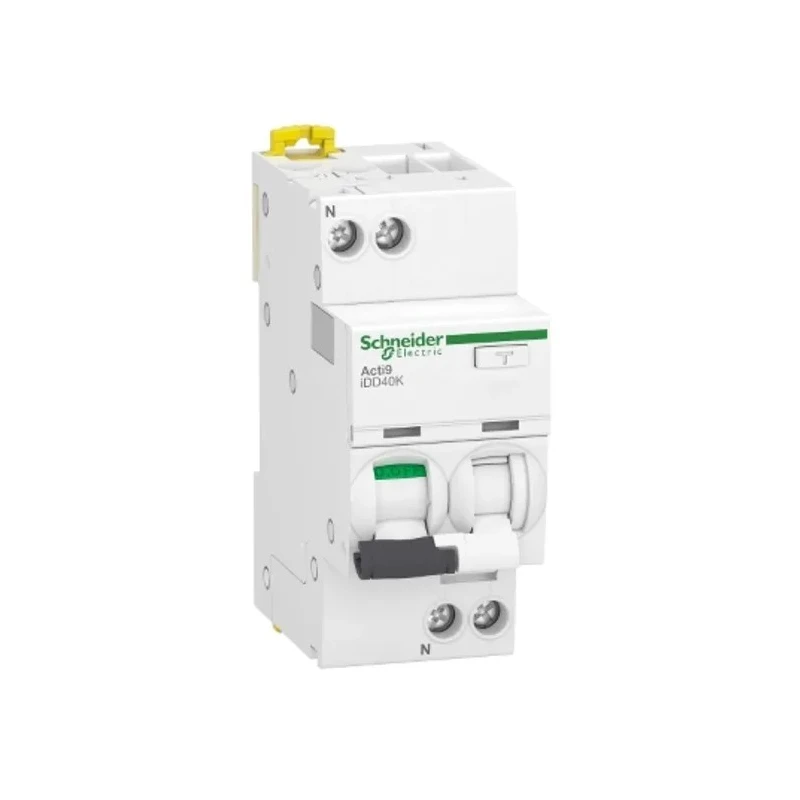

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 40A Current Rating, 1-Pole, 300 mA A9DK5640
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 85mm |
| Model | A9DK5640 |
| Depth | 73mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 40A |
| Series | Acti9 iDD40K |
| Terminal type | Tunnel |
| Breaking Capacity | 4.5kA |
| Number of Poles | 1 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 300mA |
| Earth Leakage Protection Type | AC |
Key Features
- Features thermal-magnetic trip mechanism for precise overload and short circuit protection.
- Equipped with toggle switch reset actuator and ON/OFF & trip indicator for easy operation.
- Constructed for DIN rail mounting with tunnel-type terminals.
- Complies with RoHS and EN/IEC 60947-2 standards ensuring high reliability and safety compliance.
- Compact dimensions of 85 mm height, 73 mm depth, and 36 mm width optimize panel space usage.
- Rated for 230V AC voltage with a breaking capacity of 4.5 kA suitable for residential and distribution applications.
- Designed to operate in ambient temperatures from -5 to 60 °C with 95% relative humidity tolerance at 55 °C.
- Provides instantaneous earth-leakage protection with 300 mA trip sensitivity enhancing residential safety.
Product Description
Schneider Electric A9DK5640 Residual Current Circuit Breaker with Overload Protection combines earth-leakage protection with thermal magnetic overload defense to ensure exceptional safety for electrical installations. Rated at 40A current and 230V AC, it offers reliable protection in residential and distribution electrical circuits.
The product features a 1-pole design with a toggle switch reset actuator that displays ON/OFF and trip indicator status. It is specifically designed for DIN rail mounting, employing tunnel-type terminals for secure and efficient wiring connections.
This breaker utilizes a thermal magnetic trip mechanism that responds instantly to earth leakage and overload conditions, providing effective short circuit and overload current defense. The 300 mA trip sensitivity ensures timely disconnection under leakage faults, minimizing electrical hazards in residential applications.
The device meets stringent RoHS and EN/IEC 60947-2 standards, guaranteeing quality and compliance. Its compact form factor measures 85 mm in height, 73 mm in depth, and 36 mm in width, saving space in electrical panels.
Designed for tough environmental conditions, it withstands ambient temperatures from -5 to 60 °C and supports up to 95% relative humidity at 55 °C. With a breaking capacity of 4.5 kA, it can safely interrupt fault currents, ensuring the protection of connected circuits and equipment.
Its clip-on mounting and padlockable feature add to ease of installation and operational security. This Schneider Electric Acti9 series breaker is a premium class product designed for distribution, overcurrent protection, and residential electrical safety applications.
Features thermal-magnetic trip mechanism for precise overload and short circuit protection. Equipped with toggle switch reset actuator and ON/OFF & trip indicator for easy operation. Constructed for DIN rail mounting with tunnel-type terminals.
Complies with RoHS and EN/IEC 60947-2 standards ensuring high reliability and safety compliance. Compact dimensions of 85 mm height, 73 mm depth, and 36 mm width optimize panel space usage. Rated for 230V AC voltage with a breaking capacity of 4.5 kA suitable for residential and distribution applications.
Designed to operate in ambient temperatures from -5 to 60 °C with 95% relative humidity tolerance at 55 °C. Provides instantaneous earth-leakage protection with 300 mA trip sensitivity enhancing residential safety. Explore more Schneider Electric products and high-quality circuit breakers at EnvMart for your electrical protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 40A, making it suitable for various residential and distribution applications.
It features a trip sensitivity of 300 mA, providing instantaneous earth-leakage protection to enhance safety.
The dimensions are 85 mm in height, 73 mm in depth, and 36 mm in width, allowing for efficient use of panel space.
It is designed for DIN rail mounting, which facilitates easy installation in electrical panels.
The breaking capacity is rated at 4.5 kA, ensuring it can safely interrupt fault currents.
It complies with RoHS and EN/IEC 60947-2 standards, ensuring high reliability and safety compliance.
This circuit breaker utilizes a thermal magnetic tripping mechanism for precise overload and short circuit protection.
It is rated for 230V AC voltage, suitable for standard residential electrical systems.
It is designed to operate in ambient temperatures ranging from -5 to 60 °C and can tolerate up to 95% relative humidity at 55 °C.
It features tunnel-type terminals, which allow for secure and efficient wiring connections.
This model is a 1-pole circuit breaker, designed for single-phase applications.
It is equipped with a toggle switch reset actuator, which allows for easy operation and status indication.
