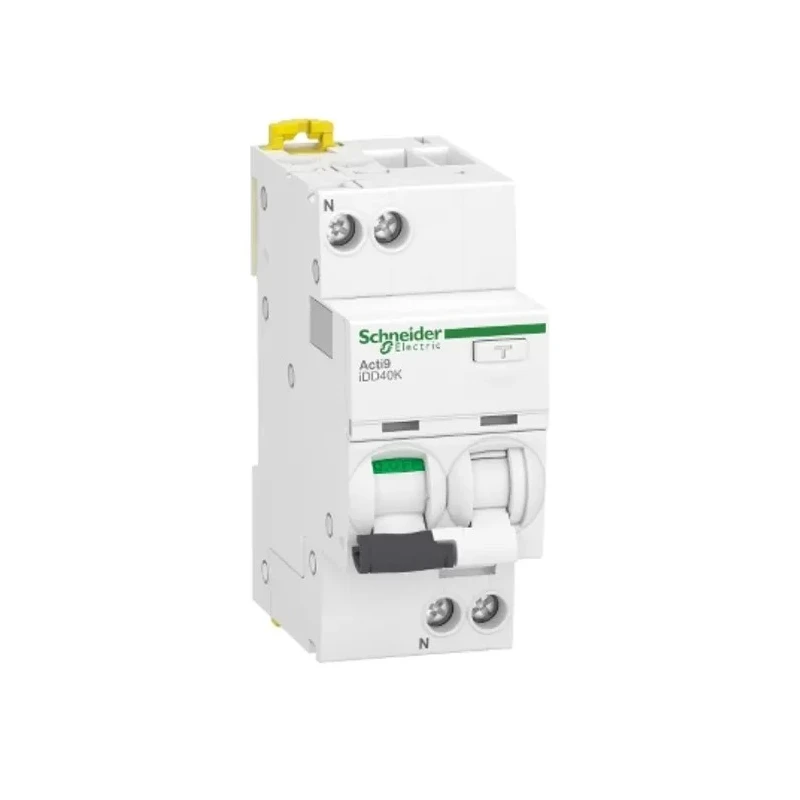

Schneider Electric Residual Current Circuit Breaker with Overload Protection 10A, 1-Pole, 230V AC, Thermal Magnetic A9DK5610

Schneider Electric A9DK5610 Residual Current Circuit Breaker with Overload Protection is designed for efficient and reliable protection of electrical circuits in residential, commercial, and light industrial applications. This device offers a 10A current rating and features a single-pole configuration suitable for 230V AC electrical systems.

The breaker incorporates a thermal magnetic trip unit technology, combining thermal overload protection with magnetic short circuit protection. The instantaneous earth-leakage detection with a 300mA trip sensitivity enhances safety by minimizing the risk of electric shock and fire hazards.

The product dimensions of 85mm height, 73mm depth, and 36mm width make it compatible with standard DIN rail mounting systems, facilitating easy installation and replacement. It boasts a breaking capacity of 4.5kA, ensuring robust interruption capability during fault conditions.

The toggle switch reset actuator includes ON/OFF and trip indicators, allowing users to readily identify the operational status of the breaker. This RCBO is compliant with industry standards EN/IEC 60947-2 and RoHS, ensuring performance and environmental responsibility.

It is designed to operate reliably under ambient conditions ranging from -5°C to 60°C, with relative humidity up to 95% at 55°C. The device supports padlocking, providing an extra layer of operational safety by preventing unauthorized switch operation.

Ideal for use in residential electrical panels and distribution boards, this Schneider Electric breaker helps maintain circuit integrity and personnel safety from electrical faults, overloads, and earth leakage currents.

Equipped with thermal magnetic tripping mechanism to provide overcurrent protection and short circuit interruption. Compact dimensions: 85mm height, 73mm depth, and 36mm width suitable for DIN rail mounting. Breaking capacity of 4.5kA enabling safety in residential and commercial electrical installations.

Toggle switch reset actuator with ON/OFF and trip status indicators for easy operation. Compliance with EN/IEC 60947-2 and RoHS standards ensures quality and environmental safety. Earth leakage protection type is AC, suitable for alternating current leakage detection.

Rated for operation in ambient temperatures from -5°C to 60°C and relative humidity up to 95% at 55°C. Padlockable design for enhanced safety and prevention of unauthorized operation. Explore more Residual Current Circuit Breakers and related electrical protection products on EnvMart for reliable and certified industrial and residential electrical solutions.
