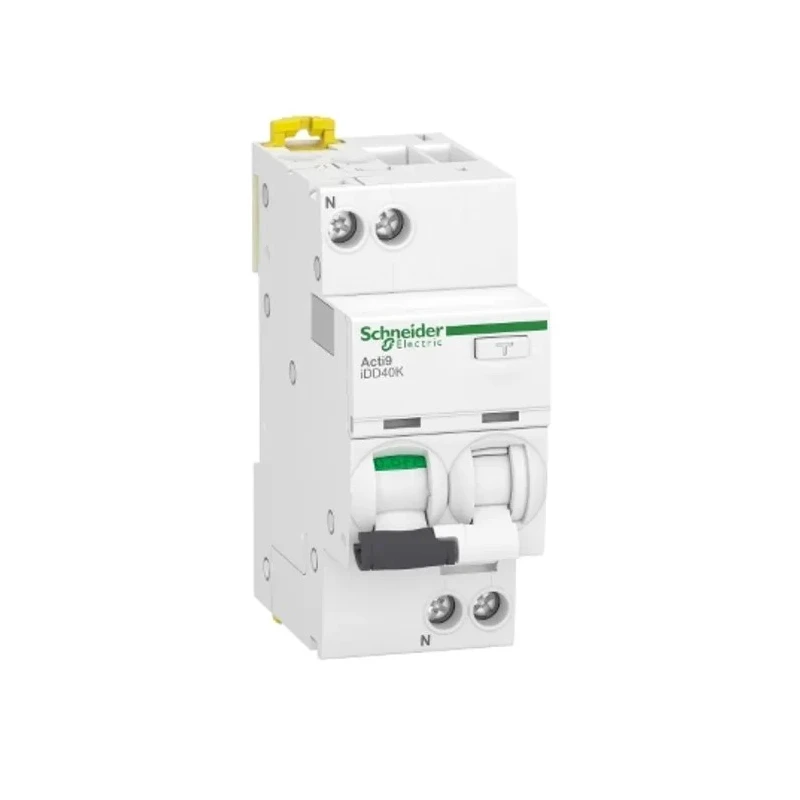

Schneider Electric Residual Current Circuit Breaker with Overload Protection 32A 1-Pole 30mA Trip A9DK1632

Schneider Electric A9DK1632 Residual Current Circuit Breaker with Overload Protection is engineered for superior electrical safety in residential and distribution systems. Featuring a 32 amp current rating and a 1-pole configuration, this RCBO provides instantaneous earth leakage protection at 30 mA sensitivity, safeguarding people and equipment from potential electrical shocks and circuit faults.

The device incorporates a thermal magnetic tripping mechanism, which combines thermal overload protection with instantaneous magnetic short-circuit interruption for fast and reliable response under fault conditions. Its compact dimensions of 85mm height, 73mm depth, and 36mm width allow for efficient use of panel space while offering easy DIN rail mounting for convenient installation.

Designed with a toggle switch reset actuator, it displays clear ON/OFF and trip status indicators to simplify operation and troubleshooting. The circuit breaker complies with international standards EN/IEC 60947-2 and RoHS, ensuring both safety and environmental responsibility.

Its rated AC voltage of 230V and breaking capacity of 4.5 kA make it suitable for various electrical distribution and overcurrent protection applications across industrial, commercial, and residential settings. The AC earth leakage protection type is tailored specifically for sinusoidal residual currents, commonly found in such installations.

Manufactured in Spain, this Schneider Electric Acti9 series product represents premium quality and reliability with an electrical durability rated at 20,000 mechanical operating cycles and an impulse withstand voltage of 4 kV. It is suitable for ambient operating temperatures ranging from -5 to 60 °C and is padlockable to enhance safety during maintenance or outages.

Ideal for distribution boards, overload, and short circuit protection in a range of electrical systems, the A9DK1632 delivers efficient, long-lasting performance meeting rigorous industrial and domestic electrical protection requirements.

Equipped with thermal magnetic trip unit technology for accurate overload and short circuit protection. Toggle switch with ON/OFF and trip indicator for clear operational status. Mounts easily on DIN rails for streamlined panel assembly.

High breaking capacity of 4.5kA for safe interruption of fault currents. AC earth leakage protection type with 30mA trip sensitivity enhances user safety. Compliant with EN/IEC 60947-2 and RoHS standards for safety and environmental compliance.
