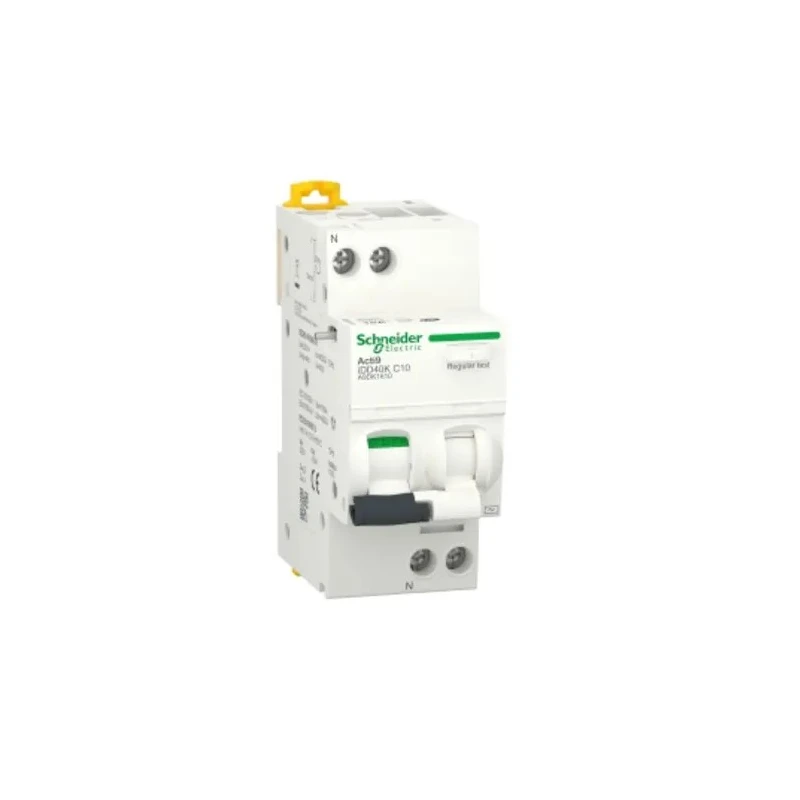

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 1-Pole, 30 mA Trip A9DK1610

Schneider Electric A9DK1610 Residual Current Circuit Breaker with Overload Protection delivers superior circuit protection for electrical distribution and overload conditions. Featuring thermal magnetic tripping technology with instantaneous earth-leakage time delay, it ensures sensitive detection and disconnection in case of current faults. Its toggle actuator provides clear ON/OFF status indication alongside trip signaling.

This 1-pole breaker is suitable for use in residential and commercial electrical installations with a rated current of 10A and a trip sensitivity of 30mA, providing compliance with stringent electrical safety standards including EN/IEC 60947-2 and RoHS. The breaker mounts securely on DIN rails, facilitating integration into standard electrical panels.

The compact form factor (85mm height, 73mm depth, 36mm width) conserves panel space while offering a breaking capacity of 4.5kA, ensuring robust protection against short circuits and overloads. It incorporates AC type earth leakage protection and withstands impulse voltages up to 4 kV, making it reliable under transient electrical disturbances.

Designed for rigorous industrial and residential environments, it operates efficiently within ambient temperatures from -5°C to 60°C and relative humidity of up to 95%. The padlockable feature enhances safety by preventing unauthorized breaker operation. This device is part of Schneider Electric's Acti9 series, known for premium quality and advanced electrical protection solutions.

Equipped with thermal magnetic trip unit technology ensuring precise overload protection. Toggle switch actuator with ON/OFF and trip indicator for easy operation. Designed for DIN rail mounting suited for residential and industrial electrical applications.

Complies with EN/IEC 60947-2 and RoHS standards for safety and environmental requirements. Compact dimensions of 85mm height, 73mm depth, and 36mm width optimize panel space. Breaking capacity rated at 4.5kA to handle fault conditions effectively.

Earth leakage protection type AC with 30 mA trip sensitivity for enhanced safety. Impulse withstand voltage of 4 kV and durability rated for 20000 electrical cycles. Operating ambient temperature range from -5°C to 60°C with 95% relative humidity tolerance.

Padlockable design provides additional protection against unauthorized operation.

This Residual Current Circuit Breaker is an ideal choice for electrical protection in residential, commercial, and industrial installations requiring reliable current interruption and earth leakage detection. It supports electrical safety, reduces risk of electrical fires, and ensures compliance with international standards. Explore more Schneider Electric products and circuit breakers at EnvMart for comprehensive electrical solutions.
