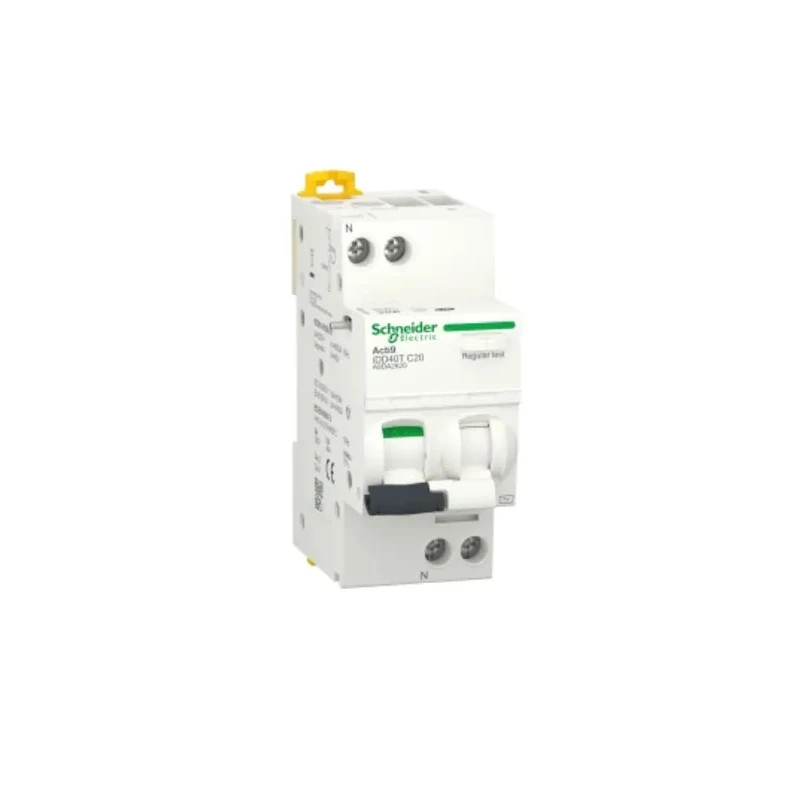

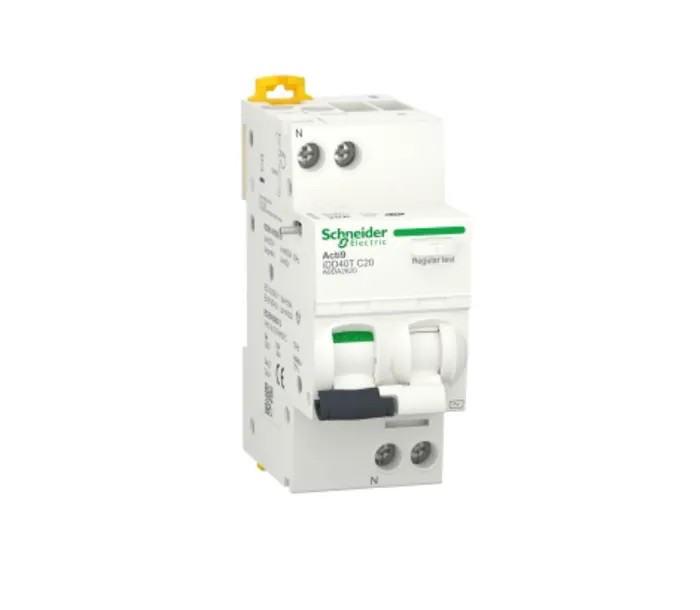

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A 1-Pole 30mA Trip A9DA2620

Schneider Electric A9DA2620 Residual Current Circuit Breaker with Overload Protection is a high-quality electrical protection device designed to combat short circuits, overload currents and earth leakage faults. Operating at 230V AC with a current rating of 20A and trip sensitivity of 30mA, this 1-pole circuit breaker ensures optimal safety for residential and distribution panels.

This breaker features thermal-magnetic tripping characteristics using advanced instantaneous earth-leakage protection with a time delay, which helps prevent nuisance tripping while maintaining safety. It is designed with a user-friendly toggle switch for easy manual reset and includes a trip indicator for quick status checks.

The device mounts easily on a standard DIN rail, with a compact form factor measuring 85mm in height, 73mm in depth, and 36mm in width, facilitating installation in confined electrical panels. The breaker incorporates tunnel-type terminals for secure wiring and a padlockable mechanism to prevent unauthorized operation, further enhancing safety measures.

Manufactured with compliance to RoHS and EN/IEC 60947-2 standards, it guarantees electrical and environmental safety. The breaking capacity of 6kA provides strong resistance to fault currents, ensuring device longevity and panel protection. Operating within a relative humidity tolerance of 95% at 55 °C, it is built to withstand demanding environmental conditions.

Produced in Spain, this Schneider Electric Acti9 series residual current breaker is a premium class product offering reliable and robust circuit protection for industrial, commercial, residential, and distribution applications in electrical automation and power management systems.

Features thermal-magnetic trip unit technology for overload and short circuit protection. Mount type suitable for DIN Rail installation. Provides instantaneous earth-leakage protection with time delay. Compliant with RoHS and EN/IEC 60947-2 standards for reliability.

Rated AC voltage of 230V and breaking capacity of 6kA. Compact dimensions: 85mm height, 73mm depth, and 36mm width. Equipped with toggle switch for reset actuator type. Padlockable design for extra safety and protection.

Designed for residential and distribution overcurrent protection applications. Manufactured in Spain ensuring quality and durability. Explore more electrical circuit protection devices and accessories at EnvMart and ensure your power systems operate safely and efficiently with Schneider Electric solutions.
