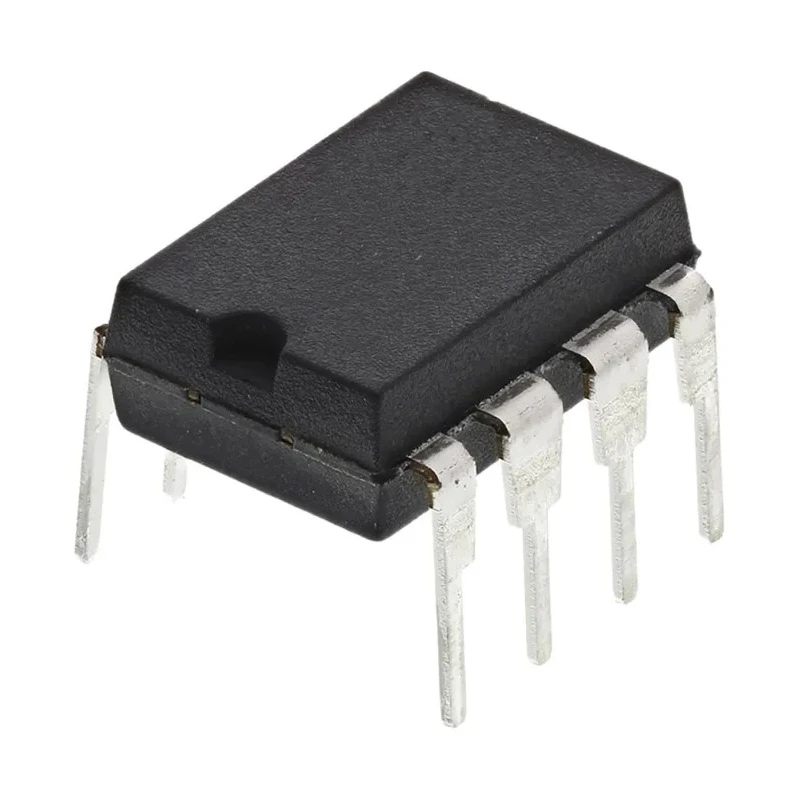

Microchip 8-Bit PIC12C Microcontroller 4 MHz EPROM 8-Pin PDIP PIC12C509A-04/P

Microchip PIC12C509A-04/P is a robust 8-bit PIC microcontroller designed for embedded applications requiring compact size and efficient control. Operating at up to 4 MHz with a CMOS OTP EPROM architecture, it delivers a powerful instruction set with 33 single-word instructions for fast execution at 1 microsecond per instruction. The device comes in an 8-pin PDIP package facilitating easy integration through through-hole mounting.

This microcontroller provides 6 programmable input/output pins, each capable of sourcing or sinking 25 mA, enabling flexible control of external peripherals and devices. It includes a 41-bit RAM size and one timer module to support complex timing functions. Featuring two analogue comparators, it allows on-chip analog signal comparison, ideal for sensor interfacing and control applications.

Operating voltage ranges from 2 V minimum to 5.5 V maximum, making it suitable for a variety of power supplies. Thermal design limits maximum power dissipation to 700 mW. The operational temperature range spans from 0°C to 70°C, ensuring reliability in various industrial and consumer environments.

The PIC12C509A-04/P is compliant with ISO 9001 automotive quality standards, ensuring consistent manufacturing and product reliability. Its compact dimensions of 9.78 mm length, 6.6 mm width, and 3.17 mm height support space-constrained designs. The through-hole PDIP package simplifies prototype development and small-scale production runs.

Utilizes powerful PIC architecture with 33 single-word instructions for ease of programming. Runs at a maximum clock frequency of 4 MHz with an internal RC oscillator and programmable calibration. Offers 6 I/O pins with 25mA source/sink capability per pin for external interfacing.

Operates over a voltage range of 2 to 5.5 volts ensuring versatile power supply compatibility. Includes 41-bit RAM size and 1 timer for various timing operations in embedded systems. Equipped with 2 analogue comparators allowing for analog signal processing tasks.

Maintains operation within temperature range of 0°C to 70°C suitable for industrial conditions. Dimensions of 9.78 mm length, 6.6 mm width, and height of 3.17 mm in a durable PDIP through-hole mount package. Power dissipation limited to a maximum of 700 mW ensuring efficient thermal management.

Complies with ISO 9001 automotive standard ensuring quality and reliability.

This microcontroller is ideal for industrial, automotive, consumer electronics, and embedded systems development applications. Its compact form factor and low power requirements enable use in portable and space-limited devices. Engineers and developers can leverage the available documentation, design tools, and application notes provided by Microchip to facilitate integration and programming.

Explore further Microcontroller products by Microchip on EnvMart for comprehensive embedded control solutions tailored to various industry needs.
