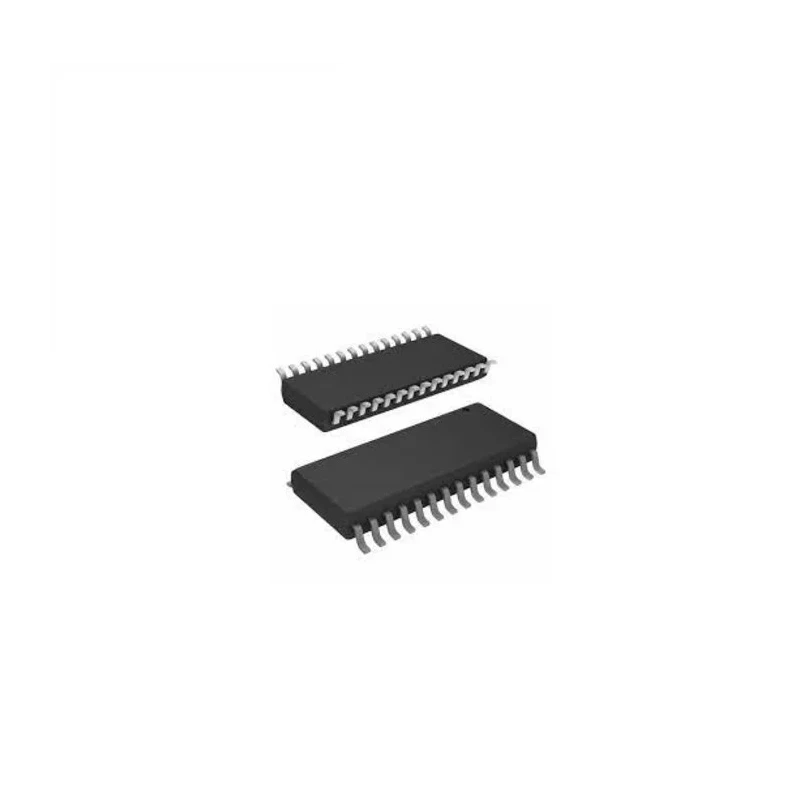

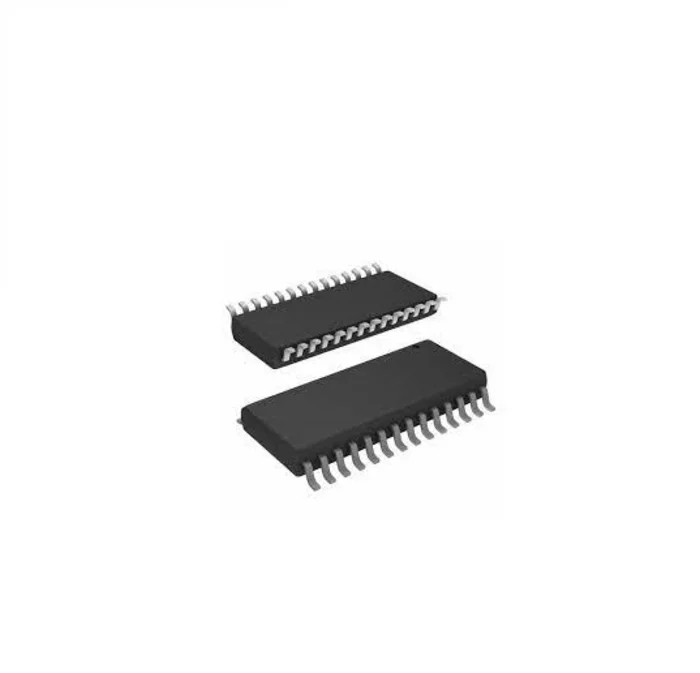

Microchip PIC Microcontroller 64 MHz, 64kB FLASH, 28-Pin SOIC PIC18F26K42-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | PIC18F26K42-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | REACH, RoHS3 |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Instruction Set Architecture | RISC |
| ADCs | 24 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates at a maximum supply voltage of 5.5 V with a minimum of 2.3 V.
- Includes 24 12-bit ADC channels enhancing precision analog conversions.
- Features 25 programmable input/output pins for versatile interfacing.
- Equipped with a 5-bit DAC and supports advanced touch sensing with capacitive voltage divider techniques.
- Supports UART protocols including DMX, DALI, and LIN for serial communication.
- Temperature range from -40°C to 85°C suitable for industrial environments.
- Program memory is flash type, supporting up to 128 KB memory space.
- Provides memory protection and access partitioning for bootloader and data security.
Product Description
Microchip PIC18F26K42-I/SO is a high-performance PIC microcontroller featuring a 64 MHz maximum clock frequency and 64kB flash program memory housed in a 28-pin SOIC surface-mount package. Designed for advanced embedded and industrial applications, it supports a wide voltage range from 2.3 V to 5.5 V, accommodating diverse supply scenarios.
This microcontroller integrates 24 channels of 12-bit analog-to-digital converters enhanced with Computation (ADC2) technology, automating capacitive voltage divider techniques for advanced touch sensing, filtering, and oversampling. It features one 5-bit digital-to-analog converter (DAC) and a factory-calibrated temperature sensor improving accuracy in environmental sensing.
The device supports multiple serial communication protocols, including UART with asynchronous, DMX, DALI, and LIN transmissions, SPI, and I2C interfaces, making it versatile for networking with peripherals and industrial protocols. It also includes a vectored interrupt controller with fixed latency, system bus arbiter, and direct memory access capabilities enhancing performance and real-time responsiveness.
64 MHz maximum clock frequency for fast processing. 64kB flash memory with program protection features. 25 programmable I/Os and surface mount SOIC package for compact PCB designs. Temperature range −40°C to +85°C for reliable industrial operation.
Memory access partitioning to safeguard bootloader and application regions. Device Information Area stores unique IDs and calibration data. Supports power-efficient design through advanced peripherals and features.
This microcontroller fits well in industrial automation, embedded control systems, sensor interface modules, and other environments requiring robust, precise, and flexible Microcontroller solutions. It meets RoHS3 and REACH standards, ensuring compliance with environmental regulations.
Explore EnvMart's extensive semiconductor category for complementary devices and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It features a program memory size of 64kB, which is of flash type.
This microcontroller operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The PIC18F26K42-I/SO includes 25 programmable input/output pins for versatile interfacing.
It integrates 24 channels of 12-bit analog-to-digital converters, enhancing precision in analog conversions.
The minimum supply voltage is 2.3 V, while the maximum supply voltage is 5.5 V.
This model supports UART protocols including DMX, DALI, and LIN, as well as SPI and I2C interfaces.
The PIC18F26K42-I/SO is housed in a 28-pin SOIC surface-mount package.
Yes, it provides memory protection and access partitioning for bootloader and data security.
It is equipped with one 5-bit digital-to-analog converter (DAC).
This microcontroller meets REACH and RoHS3 standards, ensuring compliance with environmental regulations.
The country of origin for this microcontroller is India.
