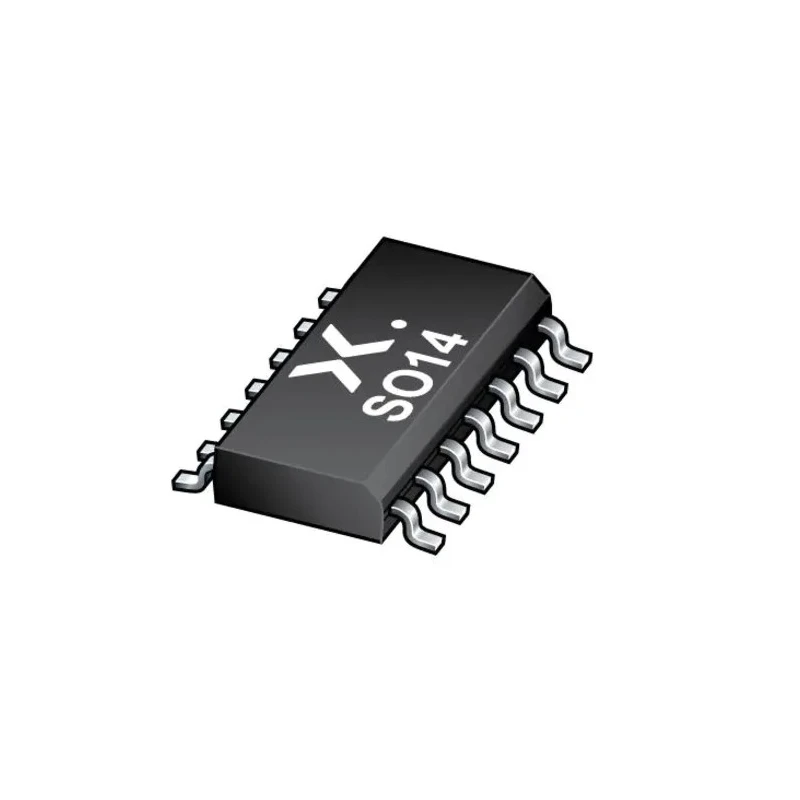

Nexperia Flip Flop IC HC CMOS 14-Pin SO-14 Surface Mount Negative Edge Triggered JK Type 74HC73D-Q100J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | 74HC73D-Q100J |
| Mount Type | Surface |
| Output type | CMOS |
| Series | 74HC73-Q100 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-14 |
| Minimum Operating Temperature | -40°C |
| Polarity | Negative |
| Trigger Type | Negative Edge |
| Standards/Approvals | HBM JESD22-A114F, AEC-Q100 (Grade 1), JEDEC Standards JESD8C (2.7 V to 3.6 V), JESD7A (2.0 V to 6.0 V), MM JESD22-A115-A |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 Grade 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Minimum Supply Voltage | 2V |
| Flip-Flop Type | JK Type |
Key Features
- Wide supply voltage range from 2V to 6V for versatile operation.
- Automotive-grade compliance with AEC-Q100 Grade 1 certification.
- High noise immunity and robust latch-up performance above 100 mA per JESD 78 Level B.
- Schmitt-trigger clock input tolerant to slow rise and fall times.
- Operating temperature range from -40°C to 125°C for harsh environments.
- Complementary outputs provide flexible digital logic interfacing.
- Includes clamp diodes enabling inputs to connect to voltages exceeding VCC.
- Compact SO-14 surface mount package ideal for PCB assembly.
Product Description
Nexperia 74HC73D-Q100J Flip Flop IC HC CMOS is a dual JK type flip-flop device in a 14-pin SO-14 surface mount package. It operates with a wide supply voltage range of 2V to 6V making it suitable for various applications requiring reliable digital flip-flop functions.
This device features negative edge triggered clock input and negative polarity with complementary outputs nQ and nQ. The asynchronous reset input forces nQ output LOW overriding clock and data inputs, ensuring immediate reset functionality when needed.
Designed with Schmitt-trigger action on the clock input, it tolerates slower clock rise and fall times, enhancing operational reliability. It integrates clamp diodes on inputs allowing the use of current limiting resistors and safe interfacing with voltages above VCC.
The flip-flop complies with automotive standard AEC-Q100 Grade 1 and meets JEDEC specifications JESD22-A114F, JESD8C, JESD7A, and others, ensuring high quality and automotive readiness. It supports industrial temperature ranges from -40°C to +125°C and exhibits high latch-up robustness exceeding 100 mA per JESD 78 Class II Level B.
Wide supply voltage from 2V to 6V supports multiple logic systems. Automotive grade AEC-Q100 (Grade 1) ensures reliability in vehicles. High noise immunity enhances signal integrity in noisy environments. Schmitt-trigger clock input tolerates slow signals for flexible timing.
Complementary nQ and nQ outputs facilitate versatile logic configurations. Negative edge triggering for precise timing control in digital circuits. Asynchronous reset input for fast and reliable reset functionality. Compact SO-14 surface mount package reduces PCB space usage.
This flip-flop IC is ideal for automotive, industrial digital logic, semiconductor switching applications, and embedded system designs requiring dependable JK flip-flop functionality at harsh operating conditions.
Explore a wide selection of semiconductor products and Flip Flop ICs at EnvMart to support your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a wide supply voltage range from 2V to 6V, making it suitable for various applications.
This model has an operating temperature range from -40°C to 125°C, allowing it to function in harsh environments.
It features negative edge triggering, which is essential for precise timing control in digital circuits.
The outputs are complementary, providing both nQ and nQ outputs for versatile digital logic interfacing.
Yes, it complies with AEC-Q100 Grade 1, ensuring reliability for automotive applications.
It comes in a compact SO-14 surface mount package, which is ideal for PCB assembly.
The maximum operating temperature is 125°C, suitable for high-temperature environments.
It meets several standards including HBM JESD22-A114F, AEC-Q100 (Grade 1), and JEDEC standards such as JESD8C and JESD7A.
It features a single-ended input type, which is common for flip-flop circuits.
It exhibits robust latch-up performance exceeding 100 mA per JESD 78 Class II Level B, enhancing reliability in various applications.
This flip-flop IC has a pin count of 14, consistent with its SO-14 package type.
Yes, it includes a Schmitt-trigger clock input that tolerates slower rise and fall times, improving operational reliability.
