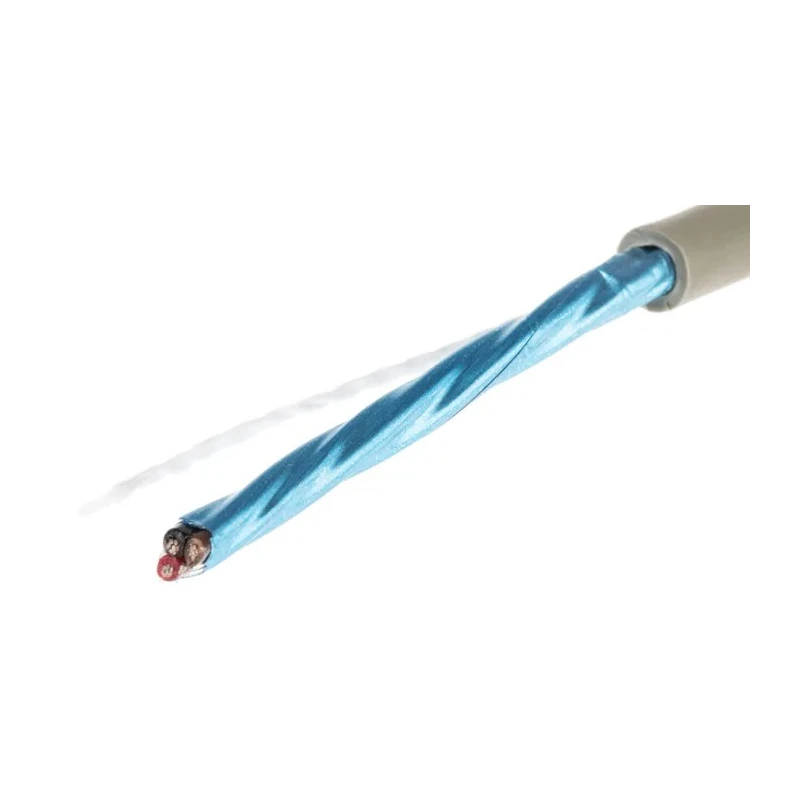

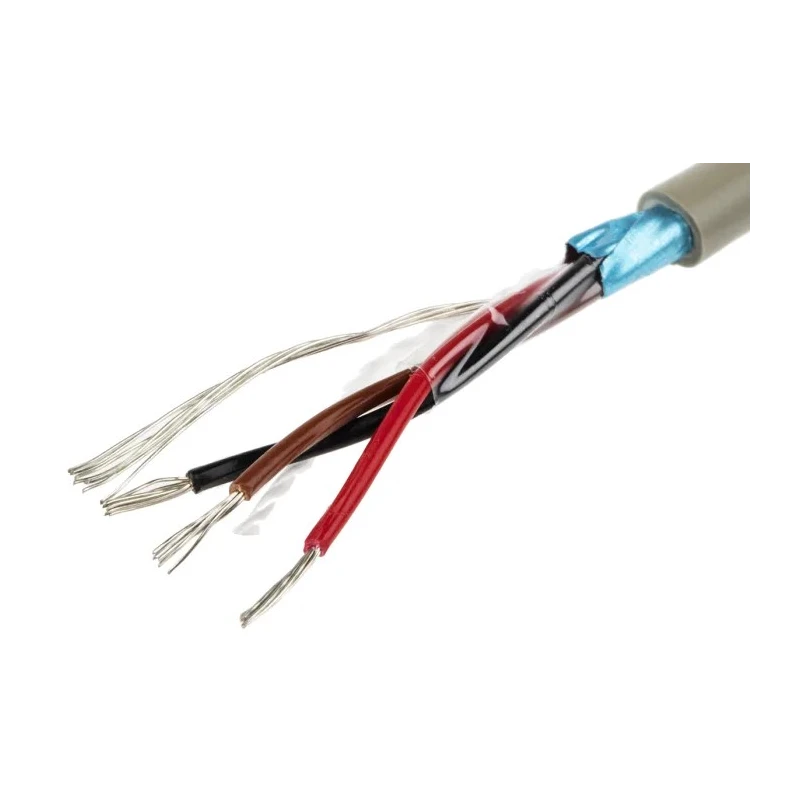

Alpha Wire Pro-Tekt Series Data Cable 3 Cores 0.35 mm² 50 m Grey Polyvinyl Chloride Jacket 300V B954032 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954032 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 4.55mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4588Brand: Alpha WireManufacturers Part No.: B954032 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Conductors | 3, Black, Brown, RedNominal Diameter: 0.179 inch (4.55 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/30Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey |
| RS PRO Data Cable 0.34 mm² 100 m Grey Sheath Polyvinyl ChlorideBrand | RS PRO |
Key Features
- Stranded tin copper conductors provide enhanced flexibility and conductivity.
- Durable grey PVC jacket offers flame retardant properties and resistance to UV and oil exposure.
- Rated operating temperature ranges from -30°C to 105°C for demanding industrial environments.
- Foil shielded design reduces electromagnetic interference and maintains signal integrity.
- Suitable for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
- Meets CE, CSA Certified, and UL standards ensuring compliance and safety.
- Flexible cable construction suits compact and small space installations.
Product Description
Alpha Wire B954032 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible multiconductor cable designed for industrial and commercial use. With 3 cores each having a 0.35 mm² cross sectional area, this 50-meter cable features stranded tin copper conductors that ensure superior flexibility and reliable electrical conductivity. The grey polyvinyl chloride jacket is robust and flame retardant, providing resistance against UV rays, oils, and minor abrasions. Rated for voltages up to 300V, the cable has a nominal outside diameter of 4.55 mm and an operating temperature range from -30°C to 105°C, making it suitable for a wide array of industrial applications.
The Pro-Tekt range includes foil shielding to minimize electromagnetic interference, supporting stable data transmission even in electrically noisy environments. This cable’s design allows use in power equipment, automation systems, medical technology, aerospace, petrochemical sectors, and commercial electronics. It supports combination of data, power, and AV cores in one cable, facilitating versatile connectivity solutions.
Conductors are colour coded in black, brown, and red for easy identification during installations. Specifications include 22 AWG wire gauge, 7 strands per conductor, insulation thickness of 0.25 mm, and a jacket thickness of 0.81 mm for durability. The cable conforms to CE, CSA, and UL certifications ensuring quality and safety compliance for demanding industrial settings.
Stranded tin copper conductors for maximum flexibility. Grey polyvinyl chloride flame retardant jacket resists UV and oil. Foil shielded multi-conductor design reduces signal interference. Rated for 300V voltage and operating temperatures between -30°C and 105°C.
Compact 4.55 mm outside diameter suitable for small space installations. Colour coded conductors for straightforward connection and maintenance. Complies with CE, CSA, and UL industry standards. Ideal for industrial automation, aerospace, medical, and commercial electronics.
This Alpha Wire Pro-Tekt cable offers superior versatility and durability for critical industrial applications requiring reliable data and power transmission. Explore more cables and connectivity solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for voltages up to 300V.
It has a maximum operating temperature of 105°C and a minimum operating temperature of -30°C.
This model features 3 cores, each with a cross-sectional area of 0.35 mm².
The conductors are made of stranded tin copper wire, while the jacket is made of grey polyvinyl chloride (PVC).
The nominal outside diameter of the cable is 4.55 mm.
Yes, it features a foil shielded design to reduce electromagnetic interference and maintain signal integrity.
It meets CE, CSA Certified, and UL standards, ensuring compliance and safety for industrial use.
It is suitable for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
The insulation thickness of the conductors is 0.25 mm.
Each conductor consists of 7 strands.
The conductors are colour coded in black, brown, and red for easy identification during installations.
The cable has a length of 50 meters.
