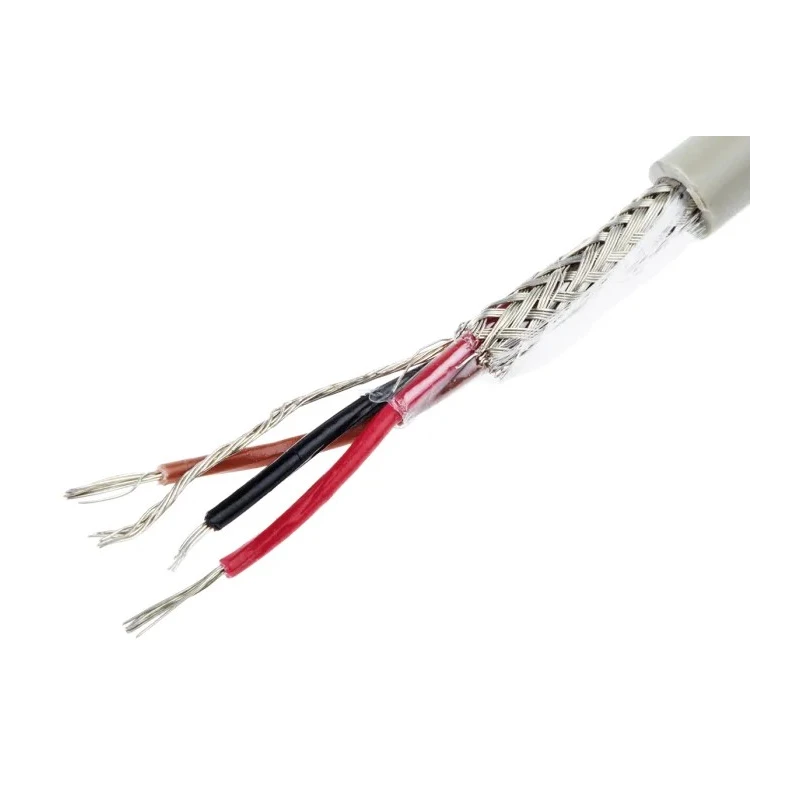

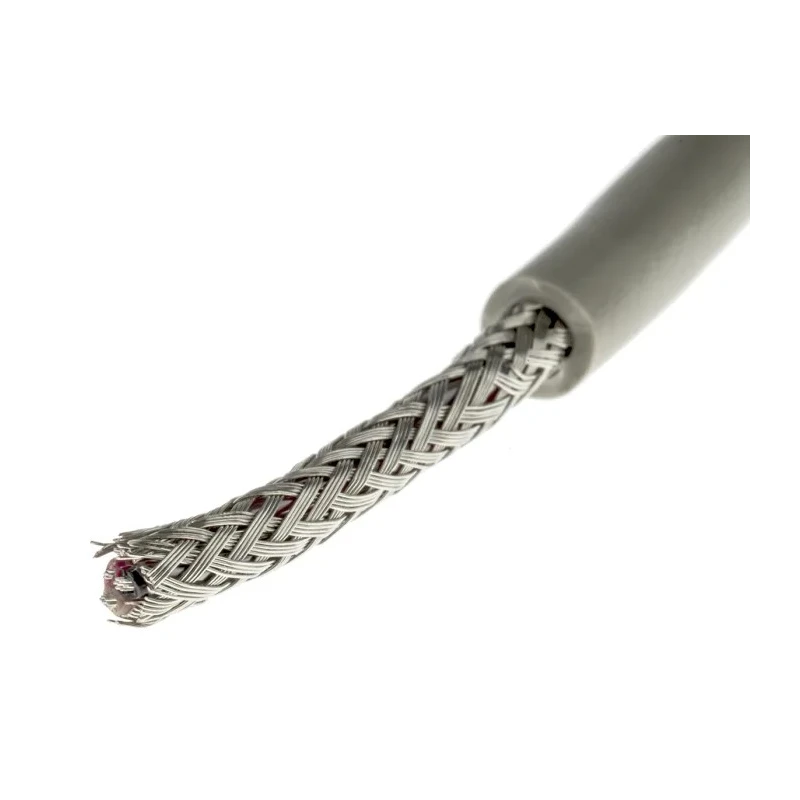

Alpha Wire Pro-Tekt Series Data Cable 3 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954033 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954033 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4642Brand: Alpha WireManufacturers Part No.: B954033 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Conductors | 3, Black, Brown, RedNominal Diameter: 0.197 inch (5.00 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/28Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey |
| RS PRO Data Cable 0.34 mm² 100 m Grey Sheath Polyvinyl ChlorideBrand | RS PRO |
Key Features
- The cable is rated for 300V operating voltage and supports a temperature range from -30°C to 105°C.
- Constructed with tinned copper stranded conductors to enhance flexibility and corrosion resistance.
- The flame-retardant PVC jacket provides UV and oil resistance, ensuring durability in demanding environments.
- Includes a braided shield for superior electromagnetic interference protection and mechanical strength.
- Compact and rounded design with a 5 mm outside diameter enables easy installation in confined spaces.
- Complies with CE, CSA, and UL standards for safety and quality assurance.
- Colour-coded cores (black, brown, red) facilitate clear identification during installation.
- Suitable for industrial automation, medical device applications, aerospace, petrochemical, and commercial electronics.
Product Description
Alpha Wire B954033 GE321 Pro-Tekt Series Data Cable is a high-performance industrial cable designed with three stranded tinned copper conductors, each with a 0.35 mm² cross sectional area, encased in a durable grey polyvinyl chloride sheath. The cable length is 50 meters and it operates safely within a voltage rating of 300V and a temperature range from -30°C to 105°C.
The cable features a flame-retardant jacket that is resistant to UV and oil, making it suitable for harsh industrial environments. Its compact 5 mm diameter and rounded profile facilitate easy routing and installation even in small spaces. The choice of shielding, including a proficient braid shield, offers excellent electromagnetic interference resistance while providing mechanical robustness and flexibility.
Pro-Tekt cables have been engineered for demanding applications across various European industries including industrial automation, aerospace, medical devices, petrochemicals, and commercial electronics. The stranded and tinned copper conductors ensure enhanced flexibility and reliable connectivity to switches, plugs, and connectors.
The cable conforms to CE, CSA, and UL standards ensuring compliance with international safety and quality benchmarks. Colour-coded conductive cores in black, brown, and red simplify installations with clear wiring identification. This cable is well-suited for power equipment and multi-core data transmission scenarios where combining data and power cores in a single cable is beneficial.
The cable’s stranded construction increases flexibility for easier manipulation in installation processes. Operating temperature range from -30°C up to 105°C accommodates diverse industrial settings. UV and oil-resistant polyvinyl chloride jacket delivers long-lasting protection.
Multi-layer braid shield provides excellent resistance against electromagnetic interference. Compact, rounded 5 mm diameter for efficient space usage. Standards compliance includes CE, CSA Certified, and UL approvals. Colour-coded cores simplify wiring and maintenance tasks.
Ideal for applications in industrial automation, aerospace, and medical devices.
Alpha Wire Pro-Tekt Series Data Cable is an optimal solution in the industrial cable category, offering both durability and performance suitable for electrical, automation, and control wiring applications. Explore the full Alpha Wire range for additional industrial wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a voltage of 300V.
It operates safely within a temperature range of -30°C to 105°C.
The cable has an outside diameter of 5 mm.
This model features 3 cores.
It is constructed with tinned copper stranded conductors and a polyvinyl chloride jacket.
It includes a braided shield for superior electromagnetic interference protection.
The cable complies with CE, CSA, and UL standards.
The total length of the cable is 50 meters.
The cores are color-coded in black, brown, and red for easy identification.
It is suitable for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
The cable features a flame-retardant jacket.
Each conductor consists of 7 strands of 0.25 mm.
