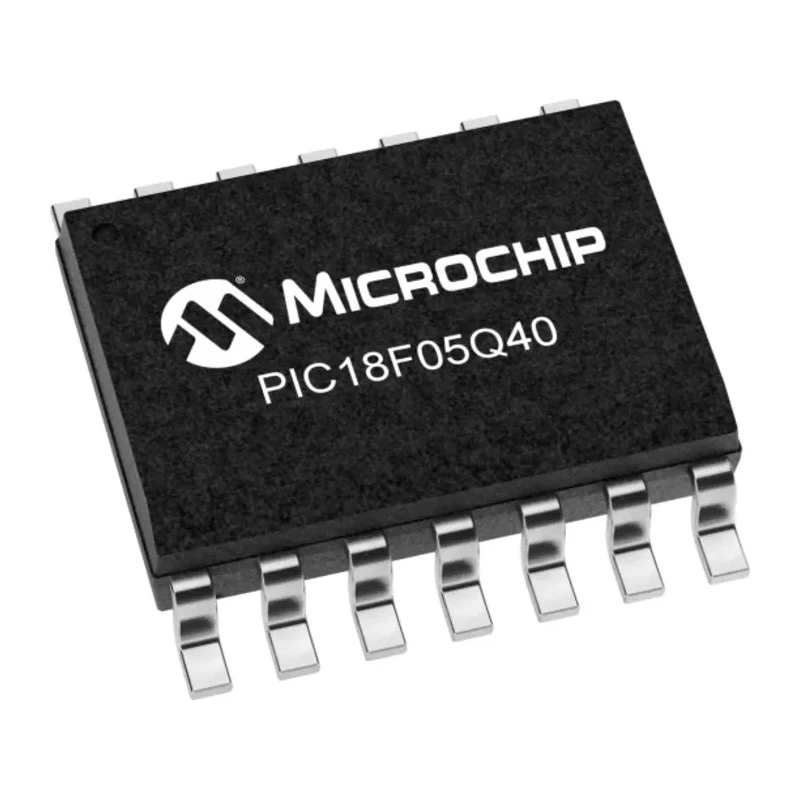

Microchip 8-bit PIC Microcontroller 64 MHz 32kB FLASH 20-Pin PDIP PIC18F05Q40-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.27mm |
| Length | 4.4mm |
| Model | PIC18F05Q40-I/ST |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | PIC |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 4kB |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 32kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 10 bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- Features a 12-bit ADC with Computation for precise analog measurements.
- Includes 5 bit DACs integrated on-chip for digital-to-analog conversion.
- Provides 4kB RAM for data storage and efficient processing.
- Operates with a minimum voltage of 2.5V and maximum supply of 5.5V supporting diverse power ranges.
- Offers 12 programmable I/Os suitable for flexible circuit designs.
- Equipped with 5 timers for complex timing operations.
- Supports RISC architecture enabling efficient instruction execution.
- Designed to work under temperature range from -40°C to 85°C, fit for challenging environments.
Product Description
Microchip PIC18F05Q40-I/ST is a high-performance 8-bit PIC Microcontroller designed for real-time control and sensor applications. Operating at a maximum clock frequency of 64 MHz and containing 32kB of FLASH memory, this 20-Pin PDIP packaged device is optimized for compact, space-sensitive applications.
It integrates a 12-bit ADC enabling high precision analog input processing, complemented by 5-bit DACs for effective digital-to-analog output. The microcontroller includes 4kB of RAM and supports 12 programmable I/O pins, consistent with diverse embedded system design requirements. Ideal for applications requiring multiple timing operations, it offers 5 hardware timers.
Designed with RISC architecture, the PIC18F05Q40-I/ST ensures efficient instruction cycles for fast processing. The device operates over a wide voltage range from 2.5V to 5.5V and withstands operating temperatures from -40°C up to 85°C, making it suitable for robust industrial and automotive environments.
The compact form factor measures 4.4mm in length and width with a height of 1.27mm, facilitating installation in space-constrained electronic assemblies. Compliance with RoHS standards underscores its environmentally friendly manufacturing.
Applications include industrial automation, control systems, sensors, and embedded electronics in automotive and consumer devices. The microcontroller's multiple communication interfaces and configurable logic cells allow flexible integration into complex system designs.
Features a 12-bit ADC with Computation for precise analog measurements. Includes 5 bit DACs integrated on-chip for digital-to-analog conversion. Provides 4kB RAM for data storage and efficient processing. Operates with a minimum voltage of 2.5V and maximum supply of 5.5V supporting diverse power ranges.
Offers 12 programmable I/Os suitable for flexible circuit designs. Equipped with 5 timers for complex timing operations. Supports RISC architecture enabling efficient instruction execution. Designed to work under temperature range from -40°C to 85°C, fit for challenging environments.
Compact dimensions with length and width of 4.4mm and height of 1.27mm for space-constrained applications. Complies with RoHS standards ensuring environmental safety. Explore further Microchip Microcontroller options and technical support at EnvMart for your embedded system development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It operates within a temperature range of -40°C to 85°C, making it suitable for challenging environments.
This microcontroller features 32kB of FLASH memory for program storage.
It includes 4kB of RAM for data storage and processing.
The device supports 12 programmable I/O pins, allowing for flexible circuit designs.
It features a 12-bit ADC for precise analog measurements.
The microcontroller operates with a minimum voltage of 2.5V and a maximum supply voltage of 5.5V.
It comes in a 20-Pin PDIP package type, suitable for surface mounting.
This model is equipped with 5 hardware timers for complex timing operations.
It supports RISC architecture, enabling efficient instruction execution.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
The dimensions of this microcontroller are 4.4mm in length and width, with a height of 1.27mm.
