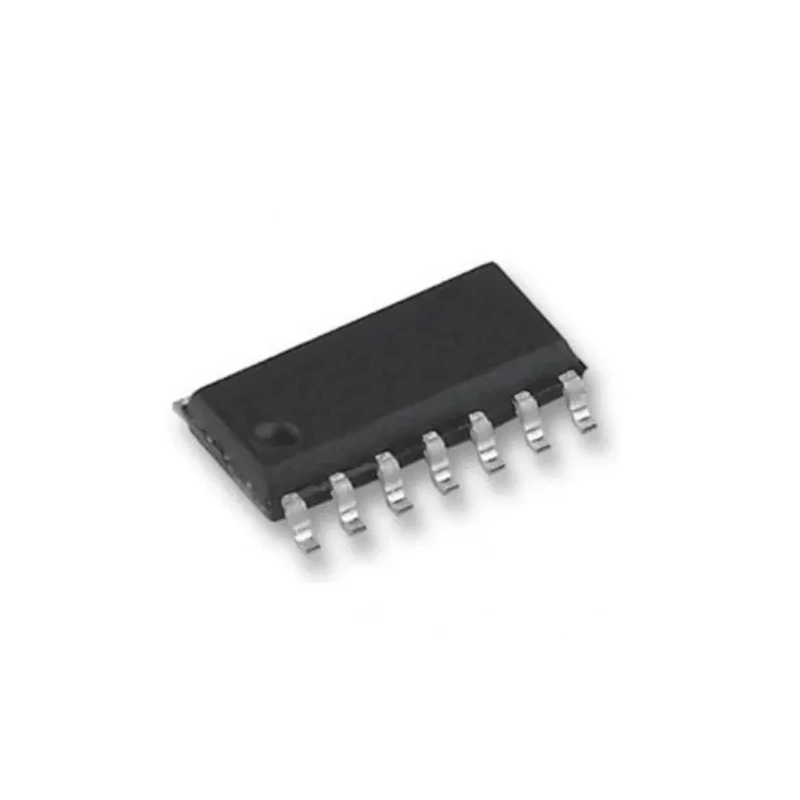

Microchip 8 bit PIC PIC16 Microcontroller 3.5kB FLASH, 32 MHz, 14-Pin SOIC PIC16F18323T-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | PIC16F18323T-I/SL |
| Width | 6mm |
| Mount Type | Surface Mount |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Features a PIC device core with 256 bit RAM and 3.5 kB program memory size.
- Operates at a maximum supply voltage of 5.5 V and minimum of 2.3 V.
- Includes 12 programmable input/output pins and multiple peripherals for flexible application design.
- Program memory type is FLASH, supporting extended applications with 11 x 10 bit ADC channels.
- Designed for operation in temperatures from -40°C to 85°C for diverse industrial environments.
- Provides 1 x 5 bit DAC and 2 analogue comparators integrated on-chip.
- Incorporates three timers and uses a RISC instruction set architecture.
- Compact dimensions of 8.65 mm length, 6 mm width, and 1.75 mm height for space-constrained designs.
Product Description
Microchip PIC16F18323T-I/SL is a high-performance 8-bit PIC16 microcontroller operating at 32 MHz with 3.5 kB FLASH program memory and 256 bit RAM. This device features low power XLP technology and core independent peripherals, making it ideal for a wide range of general-purpose and low power embedded applications in industrial, automotive, and consumer electronics.
Designed in a 14-pin SOIC surface mount package, it offers 12 programmable I/O pins, making it flexible for various digital peripheral configurations including CLC, CWG, CCP, and PWM with peripheral pin select (PPS) functionality. The microcontroller supports 11 channels of 10-bit ADCs, a 1 x 5 bit DAC, two analogue comparators, and three timers, enabling diverse functionality integration in a small footprint.
Operating voltage ranges from 2.3 V minimum to a maximum of 5.5 V, allowing it to be employed in various power environments. It is rated for operation in temperatures from -40°C to +85°C, ensuring reliability across different ambient conditions. The device uses a RISC architecture for efficient instruction execution.
The compact dimensions of 8.65 mm length, 6 mm width, and 1.75 mm height facilitate PCB space savings in sophisticated electronic designs. The FLASH program memory type supports the storing of up to 3.5 kB of code, making it suitable for embedded control tasks requiring moderate code size.
Features a PIC device core with 256 bit RAM and 3.5 kB program memory size. Programmable I/O pins total 12, for flexible interfacing. Incorporates 11 ADC channels at 10-bit resolution for analog input processing. Includes 1 DAC channel and 2 analogue comparators for mixed-signal applications.
Operates reliably between -40°C and 85°C. Surface mount SOIC 14-pin package facilitates assembly and miniaturization. 32 MHz maximum clock frequency for efficient performance.
This microcontroller suits industrial, automotive, manufacturing, and instrumentation applications requiring compact, efficient control solutions. The product is presented with reliable specifications suitable for embedded system designers and engineers aiming for versatility, power efficiency, and a small package size.
Explore more Microchip Microcontrollers and related components in the Electronics & Electricals category at EnvMart to find complementary devices and accessories for your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features a program memory size of 3.5 kB, utilizing FLASH memory type.
This microcontroller includes 12 programmable I/O pins for flexible interfacing.
It operates reliably within a temperature range of -40°C to +85°C.
The PIC16F18323T-I/SL supports 11 channels of 10-bit ADCs for analog input processing.
The minimum supply voltage is 2.3 V, while the maximum supply voltage is 5.5 V.
This microcontroller has dimensions of 8.65 mm in length, 6 mm in width, and 1.75 mm in height.
It includes 2 analogue comparators on-chip for mixed-signal applications.
This microcontroller uses a RISC instruction set architecture for efficient instruction execution.
The PIC16F18323T-I/SL incorporates 3 timers for various timing applications.
It is designed in a 14-pin SOIC surface mount package, facilitating assembly in compact designs.
The microcontroller features a RAM size of 256 bits.
