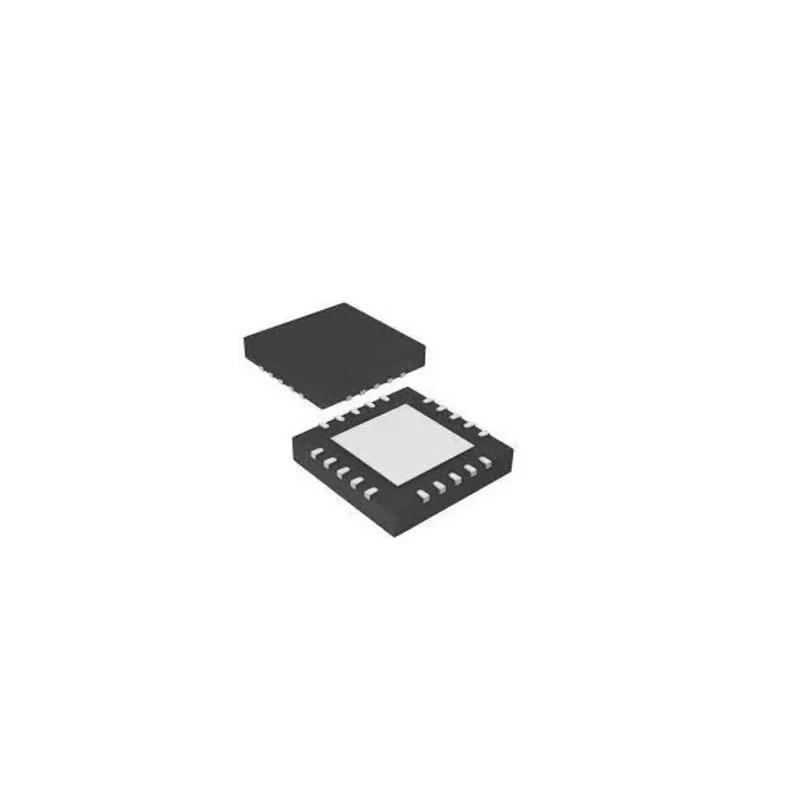

Microchip PIC24F16KA101-E/MQ 16-Bit PIC24F Microcontroller, 32 MHz, 16 kB FLASH, 20-Pin QFN

Microchip PIC24F16KA101-E/MQ is a 16-bit PIC microcontroller featuring a modified Harvard architecture CPU delivering high performance with up to 16 MIPS processing speed at a 32 MHz maximum clock frequency. It comes with 16 kB of FLASH program memory and 1.5 kB of RAM, ideal for embedded control applications.

This microcontroller operates over a broad supply voltage range from 2.5 V to 5.5 V, providing flexibility for diverse industrial, automotive, and consumer electronics implementations. It supports 18 programmable input/output pins and includes peripherals such as three timers, 10-bit analog-to-digital converters (ADCs), 5-bit digital-to-analog converters (DACs), and two analog comparators enabling sophisticated signal processing and control tasks.

Housed in a compact 20-pin QFN surface mount package measuring 5 mm by 5 mm and 900 μm in height, it is suitable for space-constrained PCB designs. The device includes an internal 8 MHz oscillator with a four-times PLL multiplier offering stable clock generation, along with a fail-safe clock monitor to maintain reliable operation under varying conditions.

The product complies with RoHS standards and the Automotive AEC-Q100 qualification, confirming its robustness for automotive applications. It supports in-circuit serial programming (ICSP™) and in-circuit debug (ICD) via two dedicated pins for streamlined development and debugging.

The operating temperature range from -40°C to 85°C enables deployment in harsh industrial and automotive environments. It guarantees a minimum of 10,000 erase/write cycles and 40 years data retention, ensuring long-term reliability.

High performance CPU with modified Harvard architecture and up to 16 MIPS at 32 MHz clock. 16 kB FLASH memory and 1.5 kB RAM for efficient embedded code storage and execution. Broad supply voltage operation from 2.5 V to 5.5 V.

18 programmable I/O pins and 3 timers for flexible control. 10-bit ADCs, 5-bit DACs, and 2 analog comparators for analog interfacing. 20-pin QFN surface mount package measuring 5 mm x 5 mm x 900 μm. RoHS compliant and Automotive AEC-Q100 certified for industrial use.

Integrated internal oscillator with PLL and fail-safe clock monitor. Supports ICSP and ICD for efficient programming and debugging. Operating temperature range from -40°C to 85°C.

This Microchip PIC24F16KA101-E/MQ microcontroller is an excellent choice for industrial automation, automotive electronics, consumer devices, and embedded control systems requiring reliable processing with low power consumption and a rich peripheral set. Explore more Microchip Microcontrollers and semiconductor components at EnvMart for your electronic design needs.
