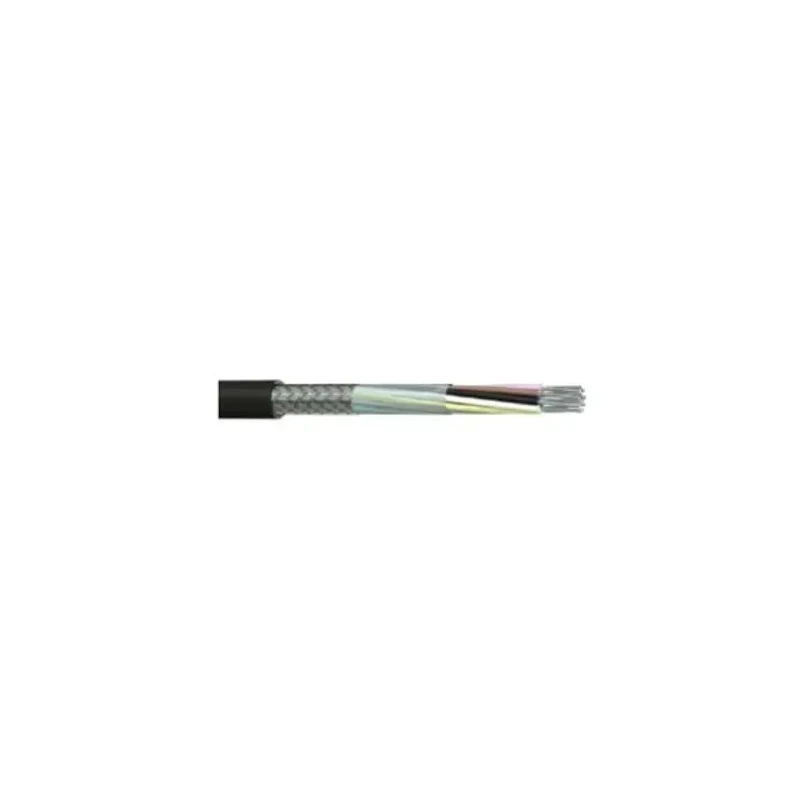

RS PRO DEF STAN Multi-Core Industrial Cable 12 Cores 0.5mm² Screened Black PVC Sheath 500m 250V 120°C 236-9224
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | RS PRO |
| Operating Temperature | -15 °C to +85 °C |
| Model | 236-9224 |
| Cable Length | 500m |
| Series | DEF STAN |
| Outside diameter | 7.4mm |
| Maximum Operating Temperature | 120°C |
| Number Of Cores | 12 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Conductor | 16/0.2 mm tinned copper (nominal construction) |
| Standards/Approvals | RoHS |
| Jacket Colour | Black |
| Screened/Unscreened | Screened |
| Conductor Type | Solid |
| Cable CSA | 0.5mm² |
| Conductor Resistance | 40.1 Ω/km |
| Braid Shield | Tinned copper, 0.2mm, 91% coverage |
| 4 cores - RS stock no | 236-9236 |
| 6 cores - RS stock no | 236-9242 |
| 12 cores - RS stock no | 236-9221 |
| 18 cores - RS stock no | 236-9227 |
| RS PRO Data Cable 12 Cores 0.5 mm² 500 m Polyvinyl ChlorideBrand | RS PRO |
Key Features
- The cable is constructed with 16/0.2 mm tinned copper conductor strands for durability.
- It has a voltage rating of 250V suitable for various control applications.
- The 7.4mm outside diameter allows for compact installations.
- Operating temperature range from -15°C up to +85°C and maximum 120°C ensures performance under harsh conditions.
- Screened PVC jacket reduces electromagnetic interference for reliable signal transmission.
- Designed per Defence Standard 61-12 Part 5 for industrial and military-grade requirements.
- The conductor resistance is 40.1 Ω/km, supporting strong electrical conductivity.
- The cable length is 500 meters, ideal for extensive wiring installations.
Product Description
RS PRO 236-9224 is a DEF STAN series multi-core industrial cable featuring 12 cores with a 0.5mm² cross-sectional area designed to meet demanding electrical and industrial applications.
This cable is engineered with tin copper wire conductors (16/0.2 mm strands), twisted cores with overall polyester tape, and a screened black polyvinyl chloride jacket. The screening and braid shield (tinned copper, 0.2mm, 91% coverage) effectively reduce electromagnetic interference, enhancing signal integrity in industrial or entertainment environments.
Its robust jacket material ensures mechanical protection, while the cable supports a voltage rating of 250V and can operate between temperatures of -15°C to +85°C continuously, with maximum tolerance up to 120°C.
Measuring 7.4 mm in outside diameter and 500 meters in length, this multi-core cable is designed for compact space installations requiring multiple cable cores, favored in machine controls, conveyors, audio devices, data networking, and process control instrumentation.
The conductor resistance of 40.1 Ω/km supports reliable power and data transmission while adhering to the Defence Standard 61-12 Part 5 specification. The cable is screened and not armoured, enhancing flexibility and usability in specialized applications such as military and marine industries, harsh industrial environments, and security and safety systems.
The cable features 0.5mm² cross-section tinned copper conductors for premium electrical performance. Polyvinyl chloride black sheath provides chemical and abrasion resistance. The screened design minimizes electromagnetic interference, ensuring signal clarity.
Wide operating temperature range and rated voltage make it suitable for various industrial applications. The package contains a continuous length of 500 meters for extensive installations.
This product is categorized under Multi-Core Industrial Cables suitable for use in electrical wiring, automation, data transmission, and industrial process control, providing durable, screened wiring solutions in demanding environments.
Explore more high-quality industrial cables and accessories with RS PRO at EnvMart for reliable, certified industrial wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 250V, making it suitable for various control applications.
It operates within a temperature range of -15°C to +85°C continuously, with a maximum tolerance of up to 120°C.
This model features 12 cores, each with a cross-sectional area of 0.5mm².
The outside diameter of this cable is 7.4mm, allowing for compact installations.
The conductors are made of tin copper wire, specifically constructed with 16/0.2 mm strands for enhanced conductivity.
This cable is screened, which helps reduce electromagnetic interference and enhances signal integrity.
The conductor resistance is 40.1 Ω/km, supporting reliable power and data transmission.
The cable is available in a continuous length of 500 meters, suitable for extensive wiring installations.
It features a black polyvinyl chloride (PVC) jacket, providing chemical and abrasion resistance.
This model is designed in accordance with Defence Standard 61-12 Part 5 and is RoHS compliant.
It is suitable for applications including machine controls, conveyors, audio devices, data networking, and process control instrumentation.
The country of origin for this cable is China.
