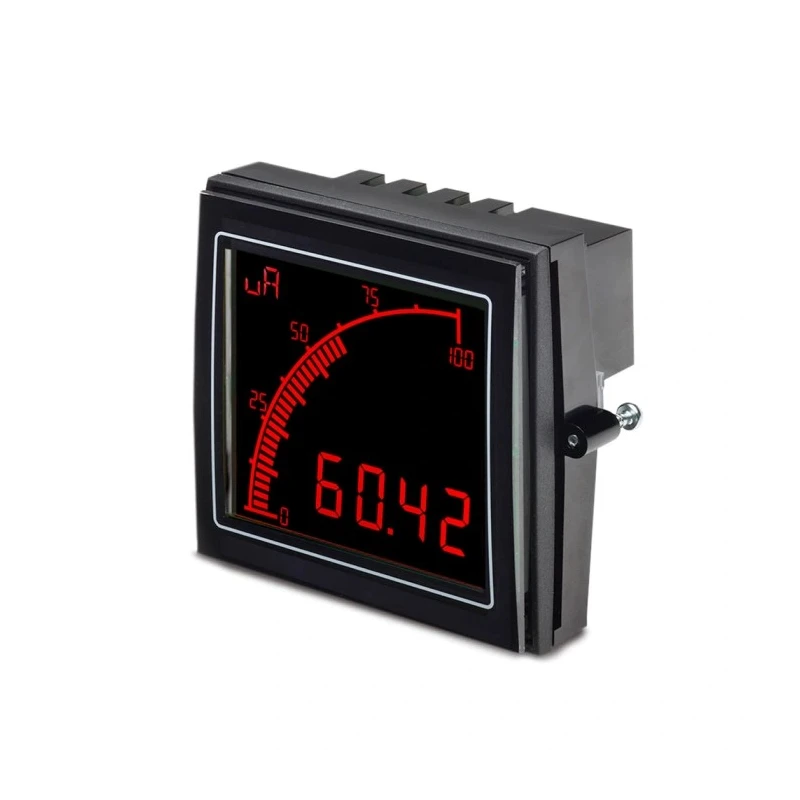

Trumeter Analogue Panel Ammeter 200 mA DC, 68 mm x 68 mm, 0.1 % Meter Accuracy APM-MICRO-APO

Trumeter APM-MICRO-APO Analogue Panel Ammeter is engineered for industrial and laboratory applications requiring precise DC current measurement with exceptional accuracy of 0.1%. It features a compact form factor of 68 mm by 68 mm cutout size with 53 mm depth for flush panel mounting in control panels and instrumentation racks.

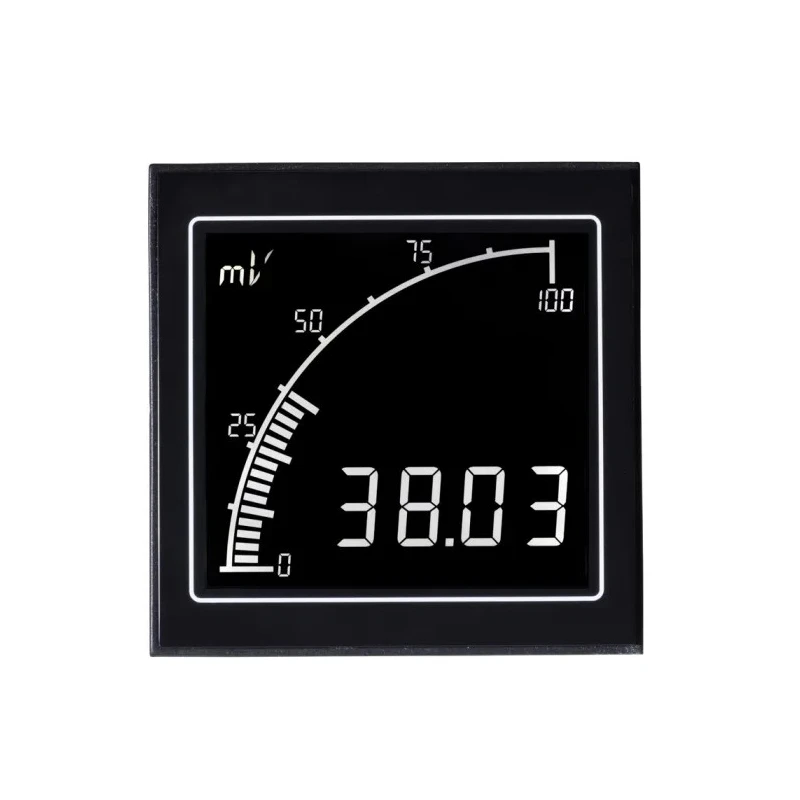

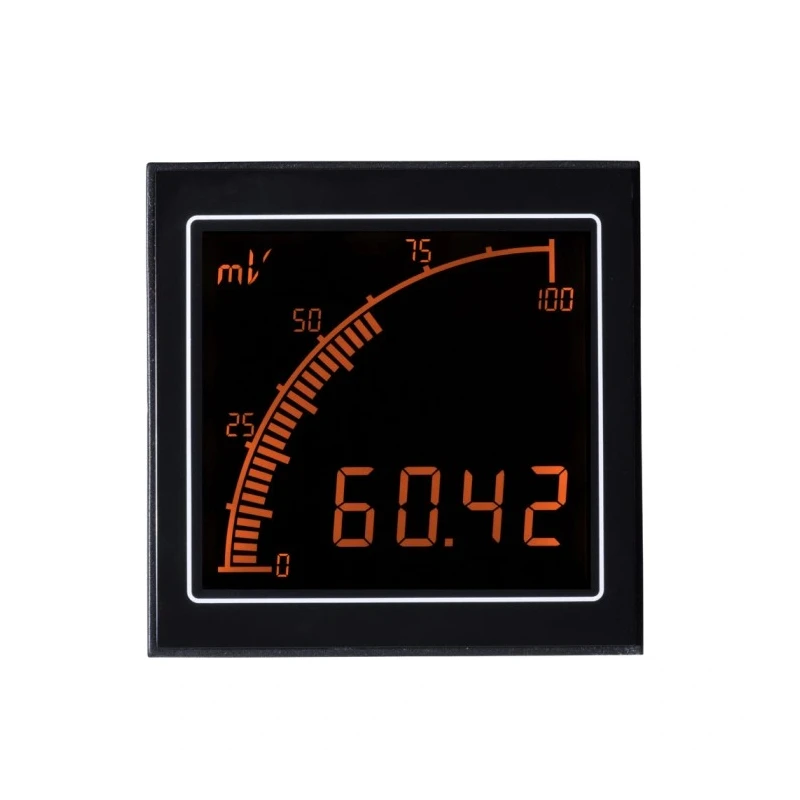

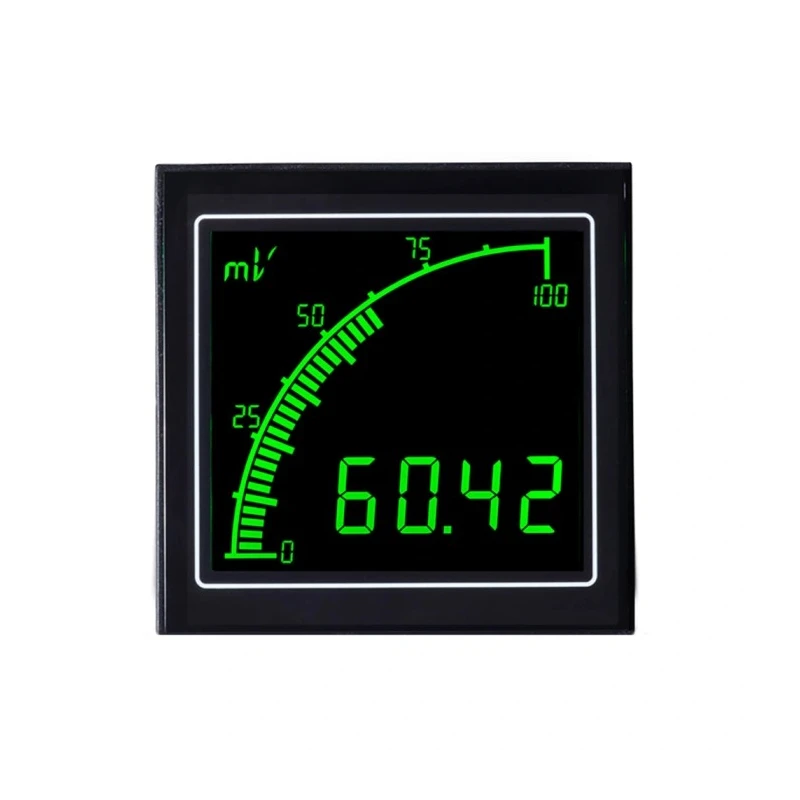

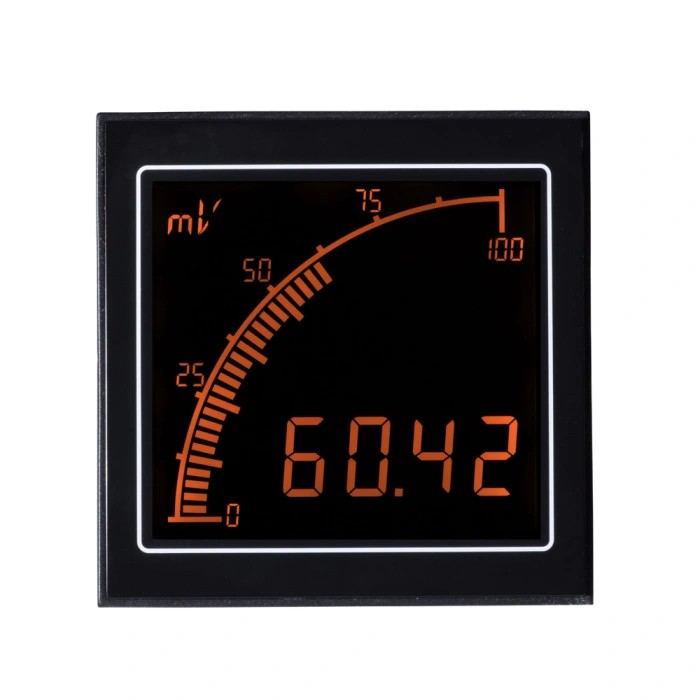

This advanced analogue meter combines the intuitive readability of an analogue needle with digital precision via a high-contrast LCD display that includes a 40-segment bar graph and dynamic color backlighting. The positive LCD uses black figures on a color-changing background allowing at-a-glance status indications and data visibility even under challenging lighting conditions.

The meter supports comprehensive user configurations such as scaling and range adjustments including min/max limits, offset and gain correction, center-zero setting, and nonlinear scaling through a 20-point curve. It also offers 10 alarm setpoints with configurable digital output delay for alerting and control purposes.

Two independent outputs can be configured individually for digital open collector functions or analogue 4-20 mA signals, enabling integration with PLCs, controllers, and data acquisition systems commonly found in industrial automation, process control, and HVAC installations.

0-200 mA DC measurement range at 0.1% accuracy for sensitive current monitoring. Compact 68 mm x 68 mm panel meter size fits standard industrial panel cutouts. Dynamic color-changing backlight (green, red, white) facilitates status monitoring.

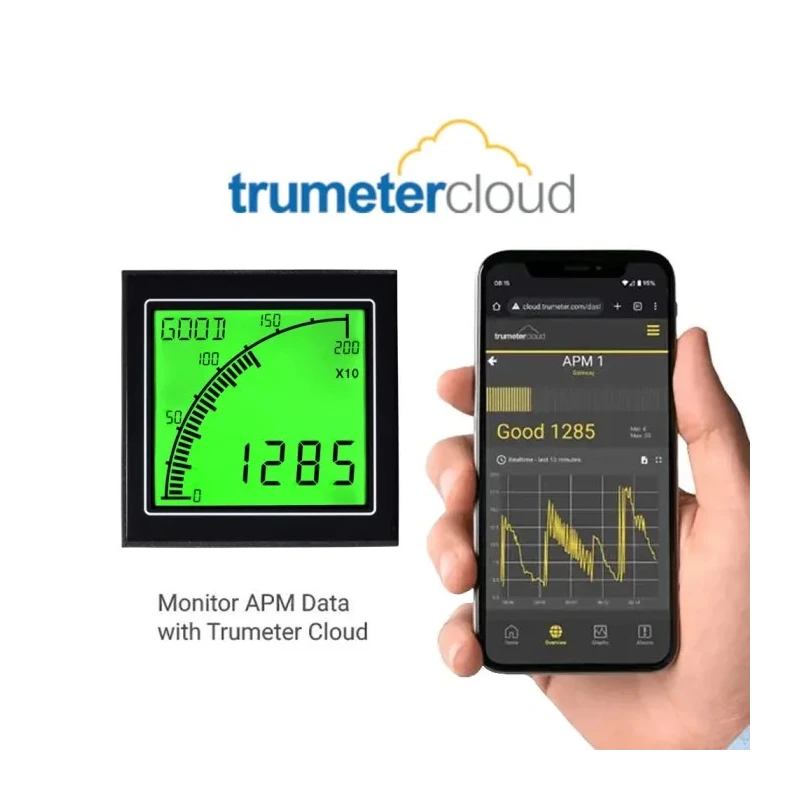

Remote data access via Trumeter Cloud through APM IoT Gateway enhances operational transparency. Wide operating temperature range from -10°C to 60°C with IP65 ingress protection. Large, wide-angle, anti-glare LCD ensures excellent visibility and reliability.

Supports configurable alarms and outputs for process automation integration.

Ideal for industrial automation, manufacturing, water treatment, HVAC, laboratory instrumentation, and other electrical monitoring applications, this Trumeter panel ammeter delivers accuracy, usability, and flexibility in a rugged, compact package. The product is designed and manufactured in Malaysia and comes with a 3-year warranty for quality assurance. Explore the Trumeter range and other analogue panel meters in the EnvMart catalogue to find solutions tailored to your measurement and control needs.
