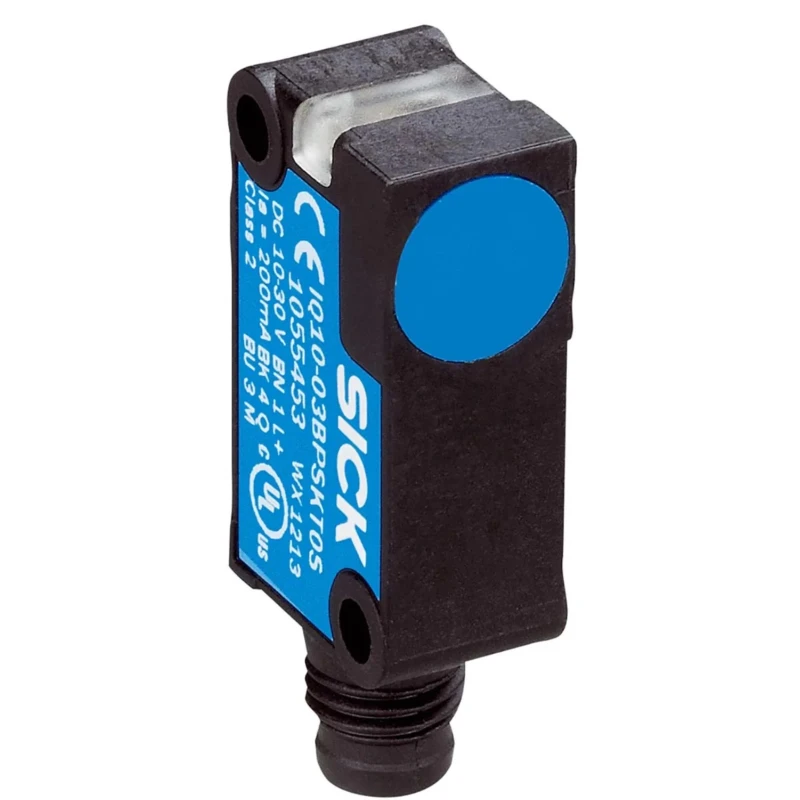

SICK Block Inductive Proximity Sensor PNP 30 V DC 200 mA 3 mm Detection IQ10-03BPSKR8S
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Temperature range | - 25 °C to +75 °C |
| Length | 16mm |
| Model | IQ10-03BPSKR8S |
| Depth | 28mm |
| IP Rating | IP68 |
| Width | 10mm |
| Mount Type | Flush |
| Housing Material | Plastic |
| Types | 10 mm x 16 mm x 28 mm or 12 mm x 26 mm x 40 mm |
| Output type | PNP |
| Series | IQ10 |
| Maximum Operating Temperature | 75°C |
| Enclosure Rating | IP 68 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | M8 |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Standards/Approvals | EN 60947-5-2 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 3mm |
| Extended sensing ranges | 2 mm to 8 mm |
| Electrical configuration | DC 3-/4-wire |
Key Features
- Compact block design measuring 10 mm width, 16 mm length, and 28 mm depth.
- Plastic housing with IP68 rating for high protection against dust and water ingress.
- Flush mount type with M8 terminal connection for easy installation.
- Operates reliably from -25°C to +75°C, suitable for harsh industrial environments.
- Maximum switching frequency of 2 kHz for fast detection response.
- Unshielded sensor optimized for presence detection of metallic objects.
- Maximum switching current of 200 mA with PNP output type.
- Compliance with EN 60947-5-2 standard ensures quality and safety.
Product Description
SICK IQ10-03BPSKR8S is a block-style Inductive Proximity Sensor featuring a robust plastic housing and a compact form factor measuring 10 mm in width, 16 mm in length, and 28 mm in depth. It provides precise metal detection with up to 3 mm sensing range using PNP output and operates at a maximum supply voltage of 30 V DC. The sensor is designed to withstand harsh industrial environments with a wide operating temperature range from -25°C to 75°C and an IP68 enclosure rating for dust and immersion protection.
This sensor is suitable for demanding automation tasks including presence detection of press tools, positioning in reworking stations, rack and workpiece carrier identification, and rotational position tracking. The unshielded design allows detection of metallic materials with a rapid switching frequency of up to 2 kHz, enabling fast and accurate sensing in manufacturing, material handling, and robotics applications.
Equipped with M8 terminal connection and flush mount compatibility, the IQ10-03BPSKR8S allows for safe, quick installation without the need for readjustment, reducing maintenance costs. The sensor incorporates advanced ASIC technology delivering superior mechanical and electronic stability, ensuring a long service life and reliable operation under shock and vibration exposure.
This proximity sensor meets EN 60947-5-2 standards and offers a compact yet highly durable design with a 270° output state display for easy status monitoring. It is an ideal choice for industrial, automation, HVAC, manufacturing, and commercial equipment sensing needs.
Compact block design measuring 10 mm width, 16 mm length, and 28 mm depth. Plastic housing with IP68 rating for high protection against dust and water ingress. Flush mount type with M8 terminal connection for easy installation.
Operates reliably from -25°C to +75°C, suitable for harsh industrial environments. Maximum switching frequency of 2 kHz for fast detection response. Unshielded sensor optimized for presence detection of metallic objects.
Maximum switching current of 200 mA with PNP output type. Compliance with EN 60947-5-2 standard ensures quality and safety. Manufactured in Malaysia, designed for durable performance in automation applications. Explore the full range of SICK sensors and related automation control gear on EnvMart for advanced industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 3 mm for metallic objects.
It operates reliably within a temperature range of -25°C to +75°C.
This sensor features a PNP output type.
The maximum switching frequency is 2 kHz, allowing for fast detection response.
It has an IP68 enclosure rating, providing high protection against dust and water ingress.
The sensor measures 10 mm in width, 16 mm in length, and 28 mm in depth.
The maximum supply voltage is 30 V DC.
It is designed for flush mounting and features an M8 terminal connection for easy installation.
This model is optimized for detecting metallic materials.
It complies with the EN 60947-5-2 standard, ensuring quality and safety.
The maximum switching current is 200 mA.
It is manufactured in Malaysia.
