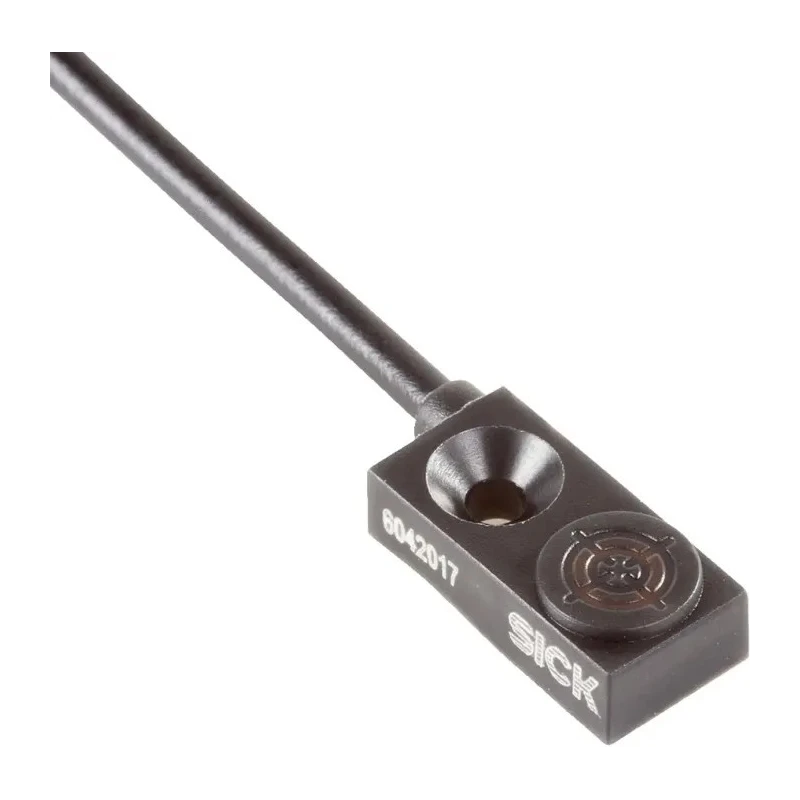

SICK Block Inductive Proximity Sensor with 5.7 mm Thread Size, PNP Output, 30 V DC, 100 mA Switching Current IQ04-1B5PSKRDS
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Temperature range | - 20 °C to +70 °C |
| Length | 4mm |
| Model | IQ04-1B5PSKRDS |
| Depth | 16mm |
| IP Rating | IP67 |
| Width | 8mm |
| Mount Type | Flush |
| Housing Material | Plastic |
| Types | 8 mm x 16 mm x 4 mm or 10 mm x 30 mm x 6 mm |
| Output type | PNP |
| Series | IQ04 |
| Maximum Operating Temperature | 70°C |
| Thread Size | 5.7 mm |
| Enclosure Rating | IP 67 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 600Hz |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal |
| Maximum Detection | 1.5mm |
| Extended sensing ranges | 1.5 mm to 3 mm |
| Electrical configuration | DC 3-wire |
Key Features
- The sensor features a 5.7 mm thread size suitable for space-constrained installations.
- It has a PNP output type with a maximum switching current of 100 mA.
- Operates at a maximum supply voltage of 30 V DC with a maximum detection range of 1.5 mm.
- Constructed with plastic housing and an IP67 rated enclosure for protection against dust and water.
- Supports flush mount installation with a pre-cabled terminal type for ease of wiring.
- Designed to function reliably within a temperature range of -25°C to 70°C.
- Switching frequency of up to 600 Hz ensures fast response times.
- The sensor is unshielded, suitable for detecting metals accurately in various industrial environments.
Product Description
SICK IQ04-1B5PSKRDS is a high-performance block inductive proximity sensor designed for precise metal object detection in industrial applications. Featuring a compact rectangular design with dimensions of 8 mm width, 16 mm depth, and 4 mm length, it is ideal for installations where space is limited.
This sensor provides a PNP output and operates on a DC 3-wire electrical configuration with a maximum switching current of 100 mA and a maximum supply voltage of 30 V DC. Its maximum detection distance is 1.5 mm, with extended sensing ranges of up to 3 mm available across the IQ04 series.
Constructed with a robust plastic housing and rated to IP67, the sensor is protected against dust ingress and water immersion, supporting reliable operation in challenging industrial environments. It is designed for flush mounting, allowing seamless integration into machinery and automation systems.
The operating temperature range of -25°C to 70°C accommodates a wide variety of ambient conditions, and the device supports fast switching frequencies up to 600 Hz to enable rapid response in dynamic handling or monitoring tasks.
Typical applications include component detection in robotic grippers, tool monitoring within dies, maintenance flap monitoring, and positioning tasks on telescopic arms or mechanical fingers. The sensor's compact size and low weight facilitate precise positioning and fast mechanical acceleration.
The sensor features a 5.7 mm thread size for mounting precision. Plastic housing ensures lightweight and durable construction. Unshielded design enables accurate detection of metal materials. Flush mount type optimizes space utilization and installation ease.
IP67 enclosure rating offers excellent environmental protection. Maximum detection range of 1.5 mm enables precise sensing. Operating temperatures from -25°C to 70°C allow versatility in harsh conditions. Maximum switching current of 100 mA supports standard industrial control systems.
Switching frequency of 600 Hz suits high-speed applications.
The SICK IQ04-1B5PSKRDS proximity sensor is a leading choice for industrial automation, manufacturing, robotics, and process monitoring applications requiring reliable, space-saving, and high-accuracy sensing solutions. For further details and technical documentation, users should consult the product datasheet and industry standards EN 60947-5-2 and EN 60529.
Explore the complete range of Inductive Proximity Sensors on EnvMart for your specific industrial sensing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 1.5 mm, with extended sensing ranges available up to 3 mm across the IQ04 series.
It features a PNP output type, suitable for integration with standard industrial control systems.
The sensor has dimensions of 8 mm in width, 16 mm in depth, and 4 mm in length, making it compact for space-constrained installations.
The maximum switching current for this sensor is 100 mA.
This unit operates within a temperature range of -25°C to 70°C, allowing for versatility in various ambient conditions.
It supports flush mounting, which allows for seamless integration into machinery and automation systems.
The sensor has an IP67 rating, providing excellent protection against dust and water immersion.
It is designed to detect metal materials accurately in various industrial environments.
The maximum supply voltage for this model is 30 V DC.
The sensor supports a maximum switching frequency of up to 600 Hz, enabling rapid response in dynamic applications.
It complies with the standards EN 60947-5-2 and EN 60529, ensuring reliability in industrial applications.
This model utilizes a DC 3-wire electrical configuration for its operation.
