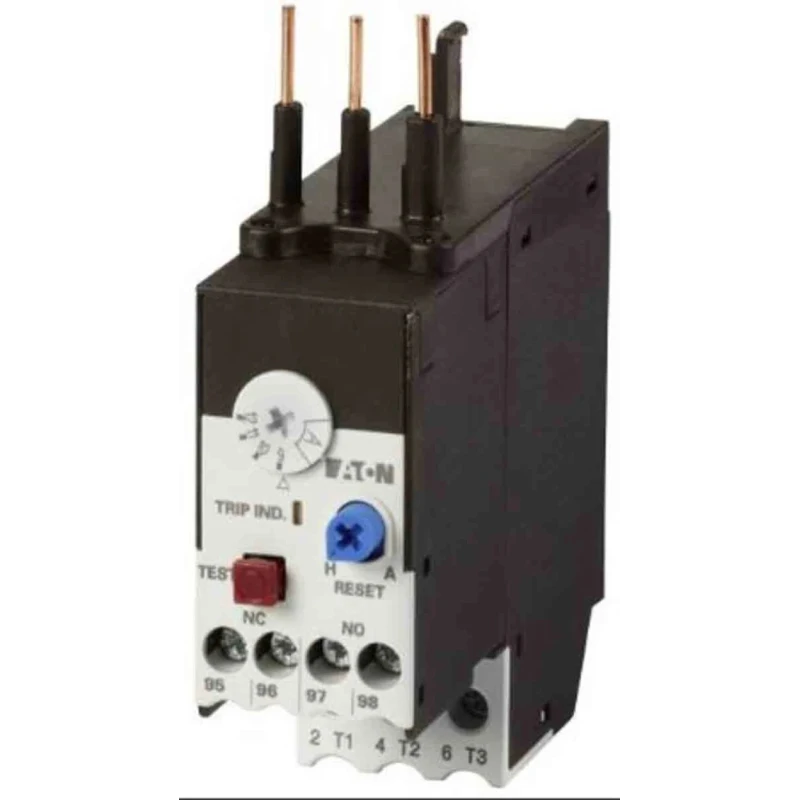

Eaton Overload Relay 1 NO/1 NC, 1.6A to 2.4A F.L.C, 2.4A Contact Rating, 1 kW Power, 690V AC, 1P 190936 ZBT12-2,4

The Eaton 190936 ZBT12-2,4 Overload Relay is a robust industrial electrical protection device designed for safeguarding motors up to 1 kW power rating. Featuring a 1 NO/1 NC contact configuration and an adjustable current range from 1.6 to 2.4 Amperes, this thermal overload relay provides sensitive and reliable protection against motor overloads, preventing damage from overcurrent situations.

Its compact design with dimensions of approximately 97mm length, 27mm width, and 87.5mm depth allows for direct mounting in control panels. The screw terminal connections ensure sturdy and safe electrical contacts, minimizing maintenance needs.

Operating within a temperature range of -25°C to 55°C, the relay is suitable for diverse industrial environments and offers an IP20 ingress protection rating to guard against accidental contact and solid objects. Compliance with IEC/EN 60947 and GB14048 standards assures users of high quality and safety.

This overload relay is compatible with Eaton's DILMT series contactors including DILMT7 through DILMT32, providing versatility across control gear applications. Additional features such as a test/off button, manual or automatic reset pushbutton, and trip-free release enhance operational ease and safety.

Its rated coil control voltage is 690V AC, making it ideal for low voltage motor control circuits in manufacturing plants, automation setups, and electrical distribution systems. The two auxiliary contacts allow for signaling and interlocking functions within motor control schemes.

Rated for motor FLC of 1.6A to 2.4A providing precise overload protection. Supports contact rating up to 2.4 Amperes at 690V AC. Power rating of 1 kilowatt suitable for small motor applications. Designed with a 1-pole, direct mount configuration for easy installation.

Equipped with screw terminal type for secure electrical connections. IP20 rated for protection against solid foreign objects. Operates efficiently within temperature range of -25°C to 55°C. Complies with IEC/EN 60947 and GB14048 standards ensuring industrial safety.

Includes two auxiliary contacts for auxiliary control and signaling.

This Eaton overload relay is optimal for industrial, manufacturing, automation, HVAC, and commercial electrical control applications requiring reliable motor overload protection. Browse more products in Overload Relay category for comprehensive solutions at EnvMart.
