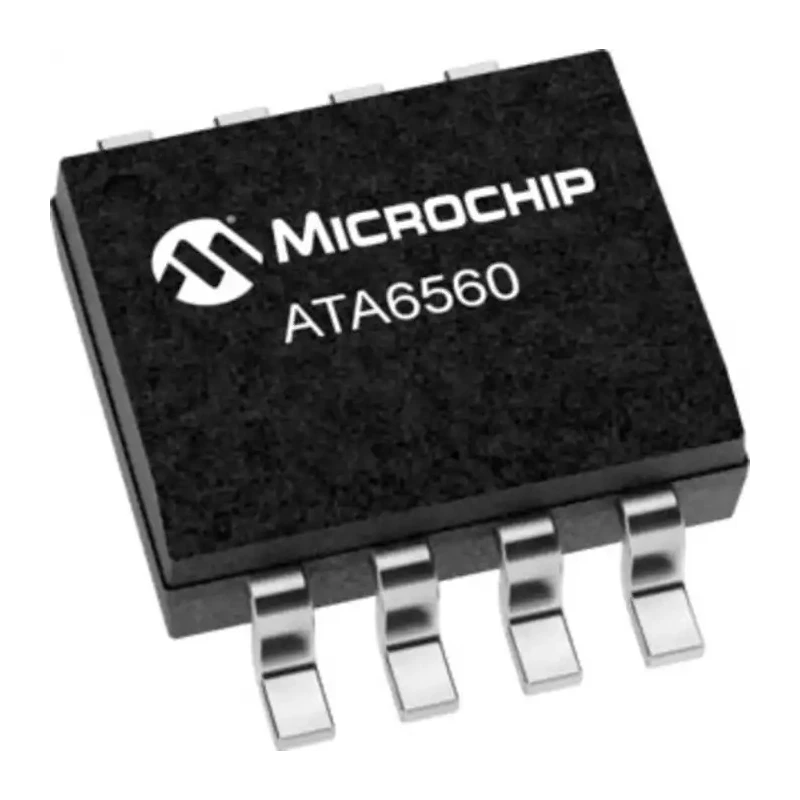

Microchip CAN Transceiver 5 Mbps, 8-Pin SOIC ATA6560-GAQW-N

Free Delivery in India | Lowest Global Shipping Charges

Microchip CAN Transceiver 5 Mbps, 8-Pin SOIC ATA6560-GAQW-N

Name: Microchip CAN Transceiver 5 Mbps, 8-Pin SOIC ATA6560-GAQW-N
Brand: Microchip
SKU: 281938
Price: 0.58 USD
Availability: InStock



Category CAN Interface ICs Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Length	4.9mm
Model	ATA6560-GAQW-N
Mount Type	Surface
Series	ATA6560
Maximum Operating Temperature	150°C
Package Type	SOIC
Sub Type	CAN Transceiver
Minimum Operating Temperature	-40°C
Interface Type	CAN
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Supply Current	70mA
Maximum Data Rate	5Mbps
Number of Transceivers	1

Key Features

The transceiver supports a maximum data rate of 5 Mbps for fast communication.
Equipped with 8-pin SOIC package for surface mount installation.
Includes enhanced electrostatic discharge (ESD) protection improving device robustness.
Supports supply voltage range from 4.5 V to 5.5 V for robust operation.
Operates reliably over a temperature range of -40°C to 150°C suitable for automotive environments.
Low supply current of 70 mA to optimize power consumption.
Designed to provide ideal passive behavior to the CAN bus when supply voltage is off.
Provides differential transmit and receive capability interfacing with CAN protocol controllers.

Product Description

Microchip ATA6560-GAQW-N CAN Transceiver is a high-performance, automotive-grade interface IC designed for Controller Area Network (CAN) applications operating at speeds up to 5 Mbps. Encased in an 8-pin SOIC surface mount package, this transceiver provides reliable differential transmit and receive functionality between a CAN protocol controller and the two-wire CAN bus.

It features advanced electrostatic discharge (ESD) protection and improved electromagnetic compatibility (EMC), enhancing device reliability in harsh automotive and industrial environments. The device supports three operating modes: Standby, Normal, and Silent, allowing for efficient power management tailored to network node requirements.

The transceiver delivers ideal passive behavior to the CAN bus during power-off conditions, preventing bus contamination. Its wide supply voltage operation from 4.5 V to 5.5 V and an ambient operating temperature ranging from -40°C to 150°C make it suitable for demanding automotive applications.

With a low supply current of 70 mA, it supports energy-efficient system designs. The device is compatible with multiple CAN standards and suited for all types of high-speed CAN networks, especially in nodes that need low-power modes with wake-up capability via the CAN bus.

The transceiver supports a maximum data rate of 5 Mbps for fast communication. Equipped with 8-pin SOIC package for surface mount installation. Offers three operating modes: Standby, Normal, and Silent for flexible power management.

Includes enhanced electrostatic discharge (ESD) protection improving device robustness. Supports supply voltage range from 4.5 V to 5.5 V for robust operation. Operates reliably over a temperature range of -40°C to 150°C suitable for automotive environments.

Low supply current of 70 mA to optimize power consumption. Designed to provide ideal passive behavior to the CAN bus when supply voltage is off. Provides differential transmit and receive capability interfacing with CAN protocol controllers.

Silent mode enables low-power nodes with wake-up capability via the CAN bus.

This product is ideal for industrial, automotive, and embedded control systems, providing robust and efficient CAN bus communication. Its automotive standard conformity and dedicated fail-safe features ensure excellent network reliability and stability.

EnvMart offers this Microchip ATA6560-GAQW-N CAN Transceiver as a trustworthy solution for developers integrating high-speed CAN interfaces in their designs.

Explore more products in our CAN Interface ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Microchip ATA6560-GAQW-N CAN Transceiver supports a maximum data rate of 5 Mbps for fast communication.

It supports a supply voltage range from 4.5 V to 5.5 V, ensuring robust operation in various applications.

This unit operates reliably over a temperature range of -40°C to 150°C, making it suitable for demanding automotive environments.

The device is encased in an 8-pin SOIC surface mount package, facilitating easy integration into circuit designs.

It features three operating modes: Standby, Normal, and Silent, allowing for flexible power management tailored to network requirements.

The transceiver has a low supply current of 70 mA, optimizing power consumption in applications.

It is designed to provide ideal passive behavior to the CAN bus when the supply voltage is off, preventing bus contamination.

This model supports the CAN interface, enabling reliable communication with CAN protocol controllers.

The length of this transceiver is 4.9 mm, which is suitable for compact circuit designs.

The Microchip ATA6560-GAQW-N CAN Transceiver is manufactured in India.

This product includes one transceiver, designed for efficient integration into systems requiring CAN communication.

It includes enhanced electrostatic discharge (ESD) protection and improved electromagnetic compatibility (EMC), increasing reliability in harsh environments.
