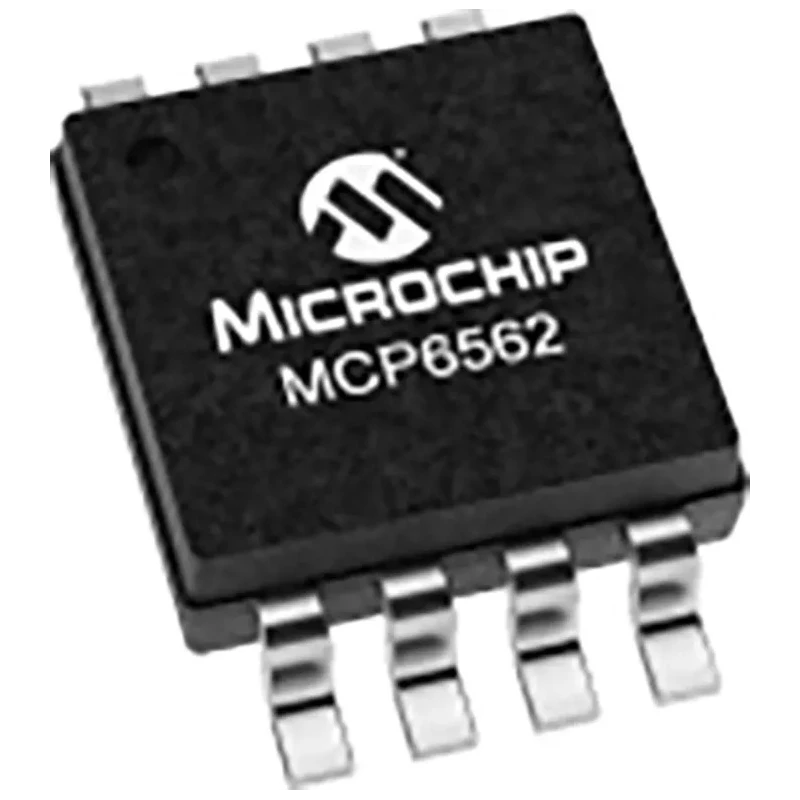

Microchip 2-Channel Comparator & Voltage Reference Push Pull O/P 1.8V to 5.5V 8-Pin MSOP MCP6562T-E/MS
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Microchip |
| Height | 0.95mm |
| Length | 3mm |
| Model | MCP6562T-E/MS |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Push Pull |
| Series | MCP6562 |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Comparator Type | Rail to Rail |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Supply Current | 100μA |
| Typical Response Time | 56ns |
Key Features
- Features rail-to-rail input/output operation for full voltage swing.
- Offers low supply current of approximately 100μA typical for power efficiency.
- Provides fast typical propagation delay of 56 nanoseconds.
- Supports single-supply operation with voltage range from 1.8V to 5.5V.
- Equipped with dual push-pull outputs for TTL/CMOS interface compatibility.
- Compact 8-pin MSOP surface mount package for space-saving PCB designs.
- Wide operating temperature range from -40°C to 125°C for industrial applications.
- Meets automotive standard AEC-Q100 ensuring reliability in automotive systems.
Product Description
Microchip MCP6562T-E/MS is a precision 2-channel comparator and voltage reference device designed for low-power, single-supply operation with a supply voltage range from 1.8V to 5.5V. It provides rail-to-rail input and output capability with push-pull outputs for direct interfacing with TTL and CMOS logic devices in compact applications.
This comparator offers a fast typical response time of 56 nanoseconds, ensuring quick signal processing for industrial, automotive, and commercial electronics applications. The device operates with a low quiescent current of approximately 100μA, making it highly suitable for battery-powered and energy-sensitive systems.
It is packaged in an 8-pin MSOP surface mount package, optimized for small footprint PCB designs and easy integration into space-constrained electronic devices. The operating temperature range of -40°C to 125°C supports robust operation in harsh environments including automotive electronics compliant with AEC-Q100 standards.
The MCP6562T-E/MS employs a push-pull output stage to effectively minimize supply current surges and reduce power dissipation during switching, enhancing system reliability and efficiency. This device helps simplify design challenges associated with voltage sensing, level detection, and signal conditioning tasks in various industrial and laboratory electronic systems.
Two rail-to-rail comparator channels with push-pull outputs. Low power consumption and wide supply voltage range. Fast response time for precise signal processing. Compact 8-pin MSOP package for space-saving. Wide industrial and automotive operating temperature range.
This product suits applications in automotive electronics, industrial control systems, instrumentation, power management circuits, and laboratory equipment where precise, low-power voltage comparison and reference are required.
Explore more Comparator and voltage reference ICs in the Electronics & Electricals category on EnvMart for reliable and high-performance semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 1.8V to 5.5V.
The typical response time of the MCP6562T-E/MS is 56 nanoseconds.
It features two channels for voltage comparison.
The device has push-pull outputs, enabling compatibility with TTL and CMOS logic devices.
This comparator operates within a temperature range of -40°C to 125°C.
It comes in an 8-pin MSOP surface mount package, suitable for compact PCB designs.
The typical supply current is approximately 100μA, making it energy efficient.
Yes, it meets the automotive standard AEC-Q100, ensuring reliability in automotive applications.
The height of this model is 0.95mm.
It is suitable for applications in automotive electronics, industrial control systems, instrumentation, and power management circuits.
This model is a rail-to-rail comparator, allowing for full voltage swing operation.
The width is 3mm and the length is also 3mm.
